TG8000 Multiformat Test Signal Generator User Manual
BLINK. Sets the blinking mode for the enabled overlay. Use the left (◄) or
right (►) arrow button to select one of the following blink modes, and then press
the ENTER button to confirm the selection.
OFF: Turns off the blinking function of the overlay.
Fast: Sets the overlay to blink at approximately 0.5 second intervals.
Slow: Sets the overlay to blink at approximately 1.0 second intervals.
Use this menu to select a logo to overlay on the output test signal and to set the
display position of the logo. Use the up (▲) or down (▼) arrow button to scroll
through the menu. The following figure shows the LOGO submenu.
NOTE.
To display a logo using the LOGO submenu, you need to create a logo file
(.lgo) and download it to the LOGO folder of the module. Refer to the TG8000
PC Tools Technical Reference for detailed information about how to create a logo
file and download it to the TG8000.

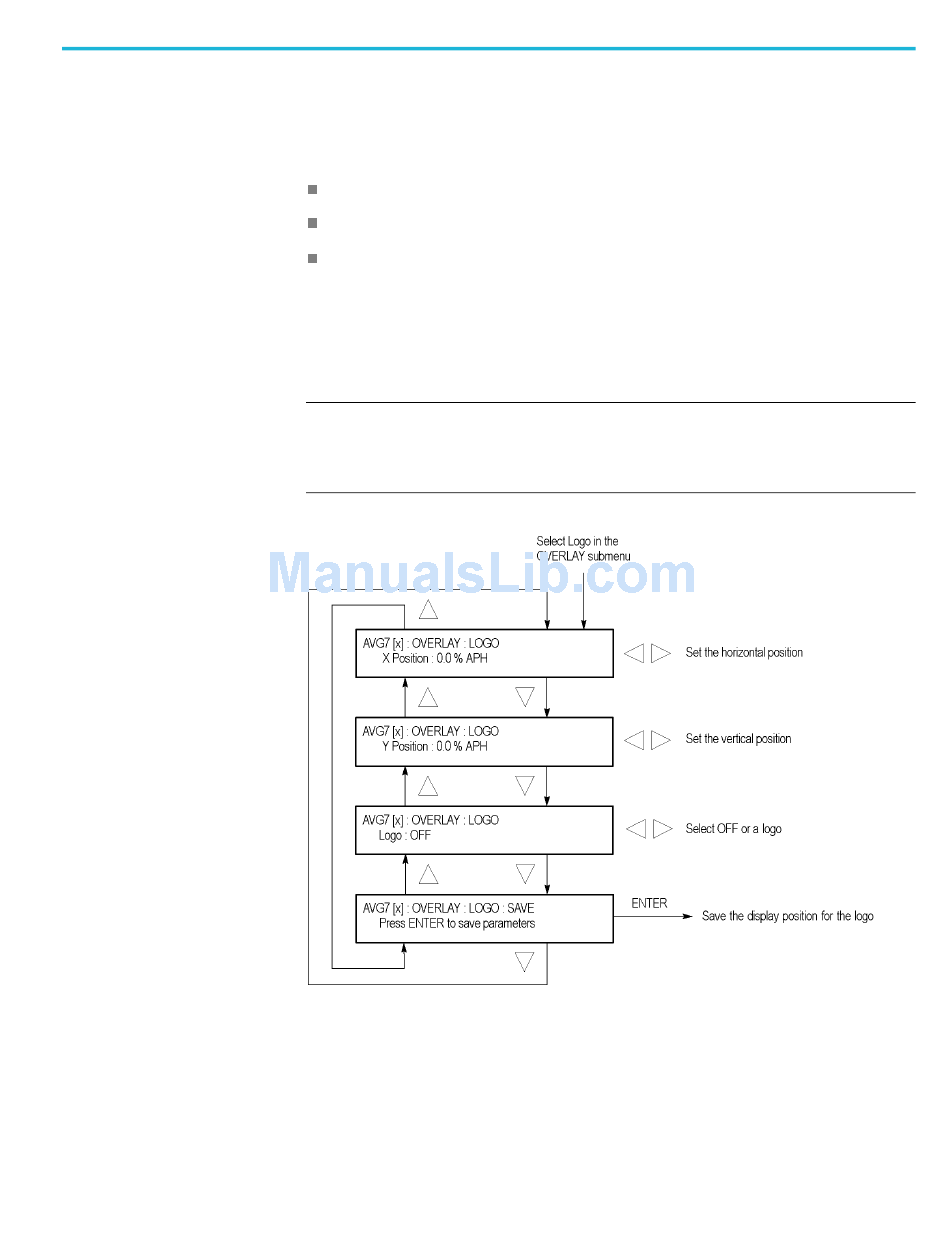

Figure 3-20: AVG7 module LOGO submenu
X position. Sets the horizontal position of the logo. The position is set as a
percentage of active picture width. Use the left (◄) or right (►) arrow button to
change the position. You can set the value from -100.0% to 0.0% in 0.1% steps.
AVG7 Analog Video Generator module
