SDI7 module
OVERLAY submenu

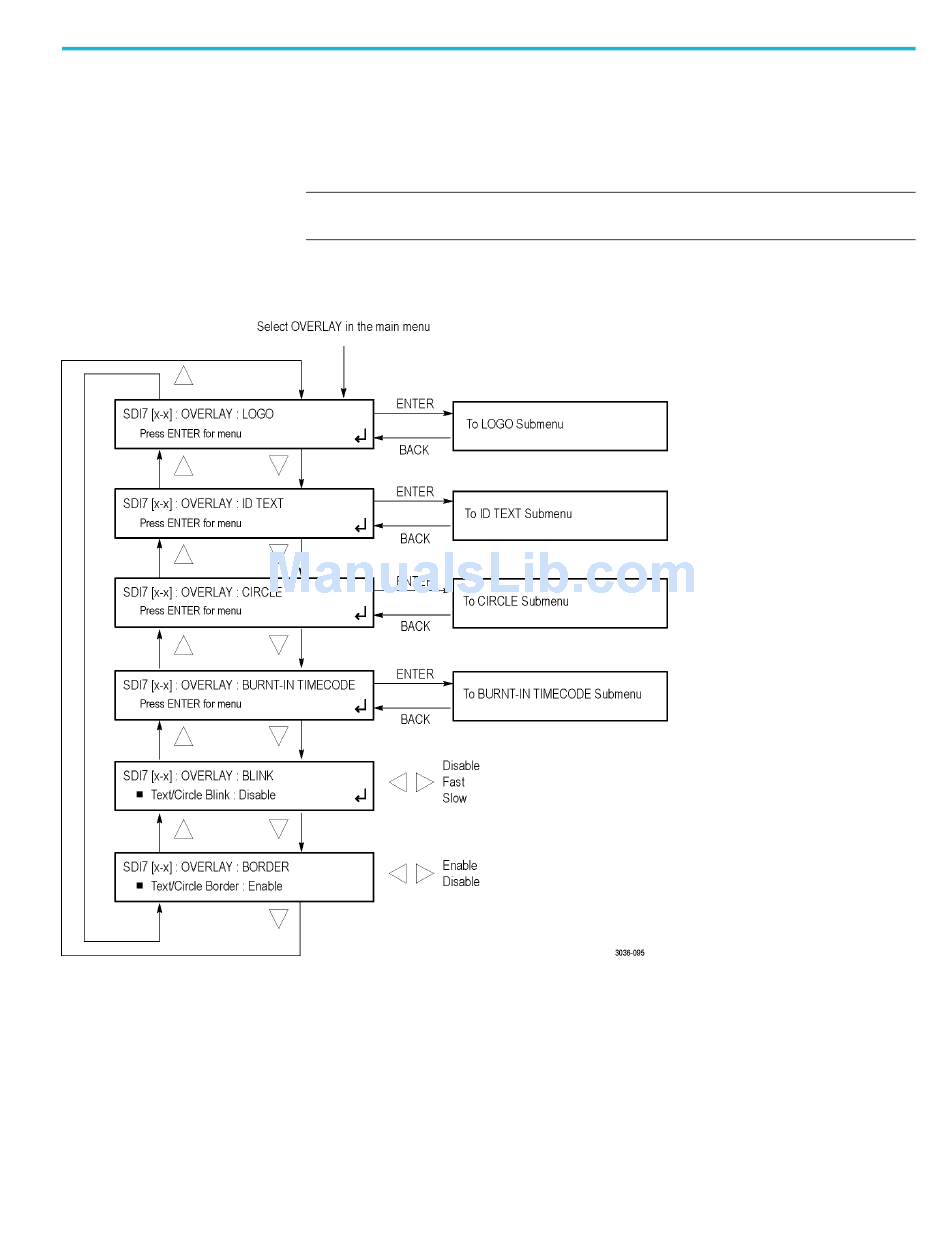

Figure 3-126: SDI7 module OVERLAY submenu
TG8000 Multiformat Test Signal Generator User Manual
SDI7 Dual Channel SD/HD/3G SDI Video Generator module
Use this menu to select an item (logo, ID text, circle, or burnt-in timecode) to
overlay on the output test signal, and to set the blinking mode for the overlay. Use
the up (▲) or down (▼) arrow button to scroll through the menu.
NOTE.
You can store overlay functions, including text, in the mainframe presets
so that the overlay is restored on power up.
The following figure shows the OVERLAY submenu.
3–293
