To select an output signal on the ATG7 module

To select the signal format
To select the test signal
TG8000 Multiformat Test Signal Generator User Manual
The SIGNAL connector on the ATG7 module provides the capability to output
test signals assigned to the front-panel test signal buttons. To output a signal
from the connector, you need to select a signal format and an output signal as
described below.
Perform the following steps to select the signal format:
1. If the ATG7 module menu is not displayed, press the front-panel MODULE
button until the ATG7 module main menu appears as shown below.
2. Press the FORMAT button. The menu display changes as follows:
3. Use the left (◄) or right (►) arrow button, or press the FORMAT button
repeatedly, to select one of the signal formats, and then press the ENTER
button to confirm the selection.
NOTE.
When you change the signal format, synchronization shock occurs.
All of the signal sets that are available in the module are already assigned to the
corresponding test signal buttons. When the ATG7 module is selected and you
press any of the front-panel test signal buttons, the selected signal in the signal set
is output on the SIGNAL connector. (See Figure 3-9.)
For example, when you press the COLOR BAR test signal button, a signal in the
Color Bars signal set is output. Press the left (◄) or right (►) arrow button, or
press the COLOR BAR test signal button repeatedly to select a different signal
from the Color Bars signal set.

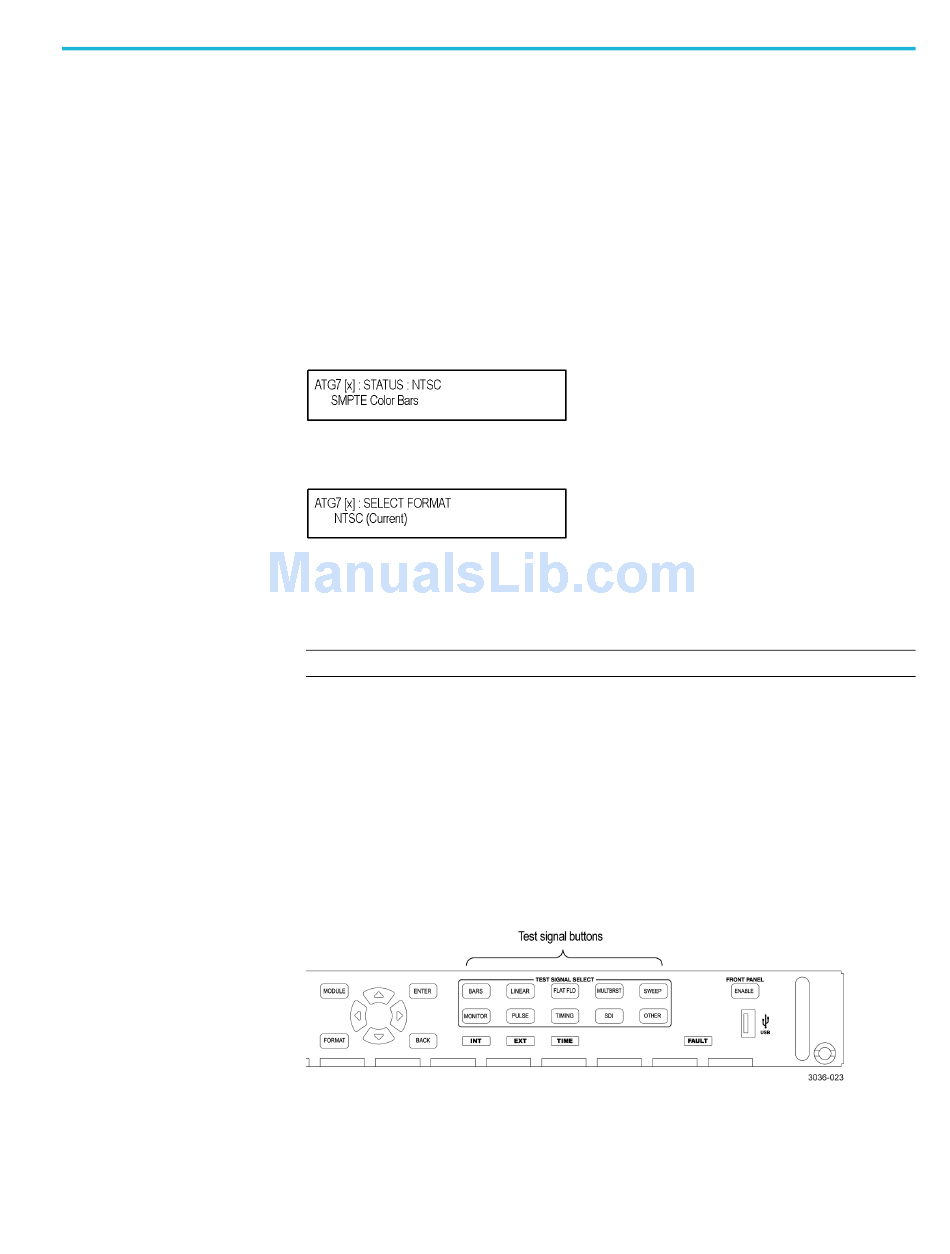

Figure 3-9: Front-panel test signal buttons
ATG7 Analog Test Generator module
3–19
