STATUS. Use this menu to enable or disable the embedded audio output for the
selected group. Use the left (◄) or right (►) arrow button to select ENABLE or
DISABLE, and then press the ENTER button to confirm the selection.
CHANNEL. Use the left (◄) or right (►) arrow button to choose channel 1, 2,
3, or 4, and then press the ENTER button to enter the AUDIO : CHANNEL
submenu. The CHANNEL submenu allows you to set the frequency, amplitude,
click rate, and channel origin ID for the selected audio channel. The following
figure shows the AUDIO : CHANNEL submenu.

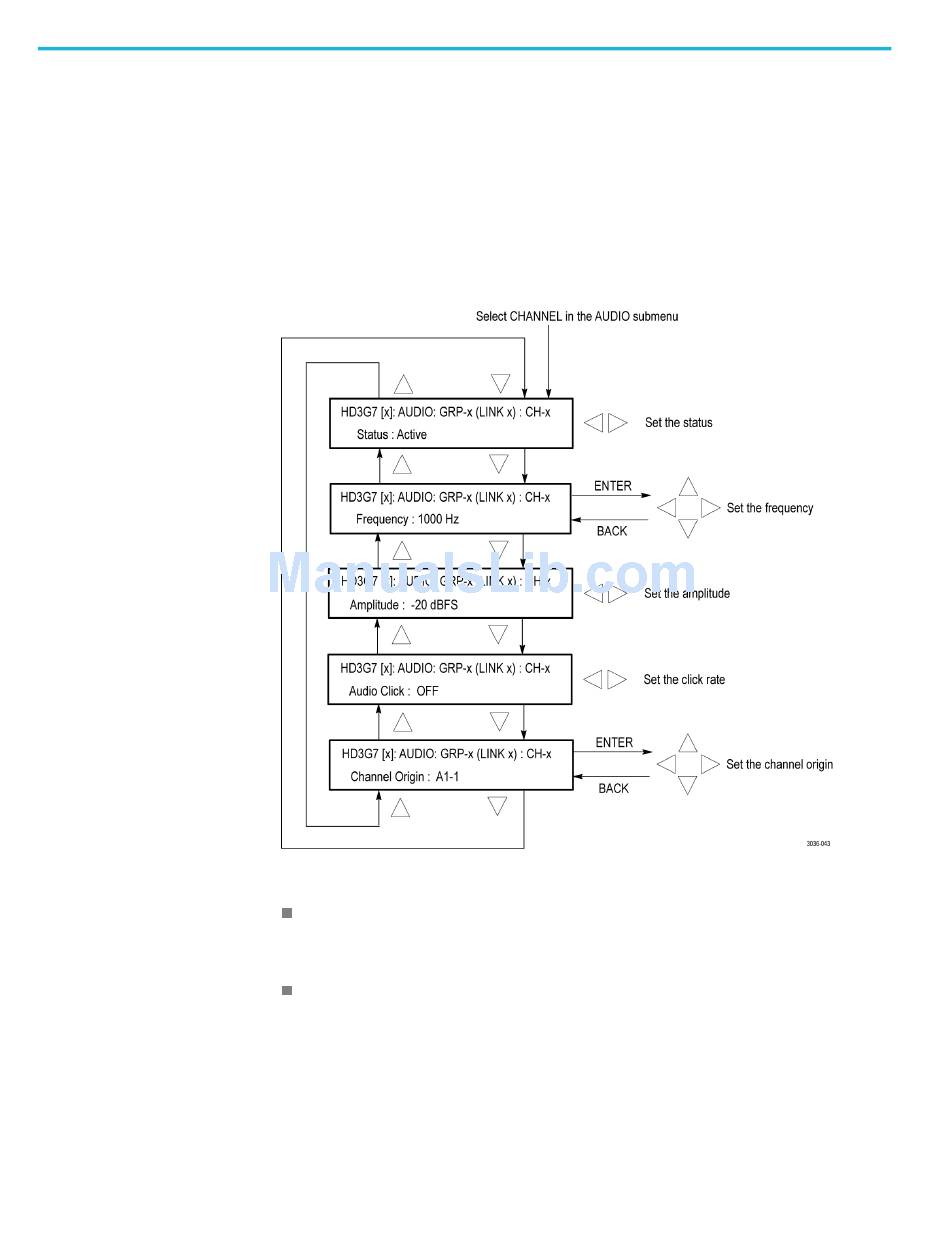

Figure 3-89: HD3G7 module AUDIO : CHANNEL submenu
Status: Use this menu to set the status of the individual channel. Use the left
(◄) or right (►) arrow button to select between Active, Inactive, and Mute.
Press the ENTER button to confirm the selection.
Frequency: Use this menu to set the frequency of the Embedded Audio
signal from 10.0 Hz to 20 kHz, in steps of 0.5 Hz. Press the ENTER button
to enter the adjustment mode, then use the left (◄) and right (►) arrow
buttons to position the cursor, and then use the up (▲) and down (▼) arrow
buttons to set the number for that position. Press the ENTER button again to
confirm the new frequency.
