HDVG7 module
TIMECODE submenu
TG8000 Multiformat Test Signal Generator User Manual
Use this menu to set timecode parameters for the module outputs. This menu is
only available when a GPS7 module is also installed in the instrument.
NOTE. To display the TIMECODE submenu, the HDVG7 module hardware must
be version 2.0 or above.
Use the up (▲) or down (▼) arrow button to change the menu items. The
following figure shows the TIMECODE submenu.

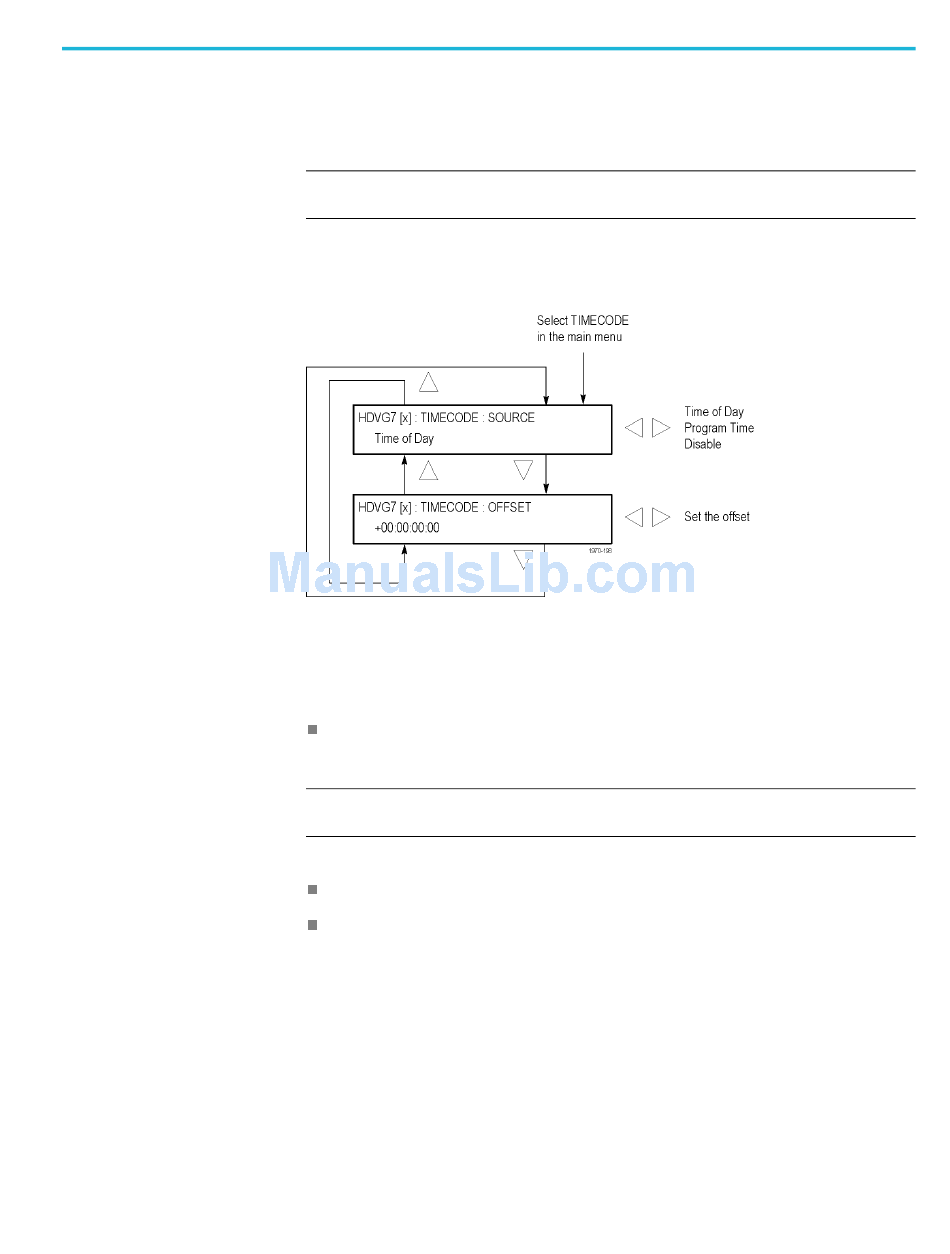

Figure 3-112: HDVG7 module TIMECODE submenu
SOURCE. Use the left (◄) or right (►) arrow button to select the timecode
source from the following choices:
Time of Day: Uses the time of day as determined by the time of day menu
selection. (See page 3-133.)
NOTE.
The Time of Day selection is local time, including any time zone offset and
DST offset applied at the system level.
Program Time: Uses the program time counter as the timecode.
Disable: Disables the timecode function for the HDVG7 module.
HDVG7 HDTV Digital Video Generator module
3–245
