The AWVG7 Analog Wideband Video Generator module is equipped with three
pairs of BNC connectors as described below. (See Figure 2-9.)

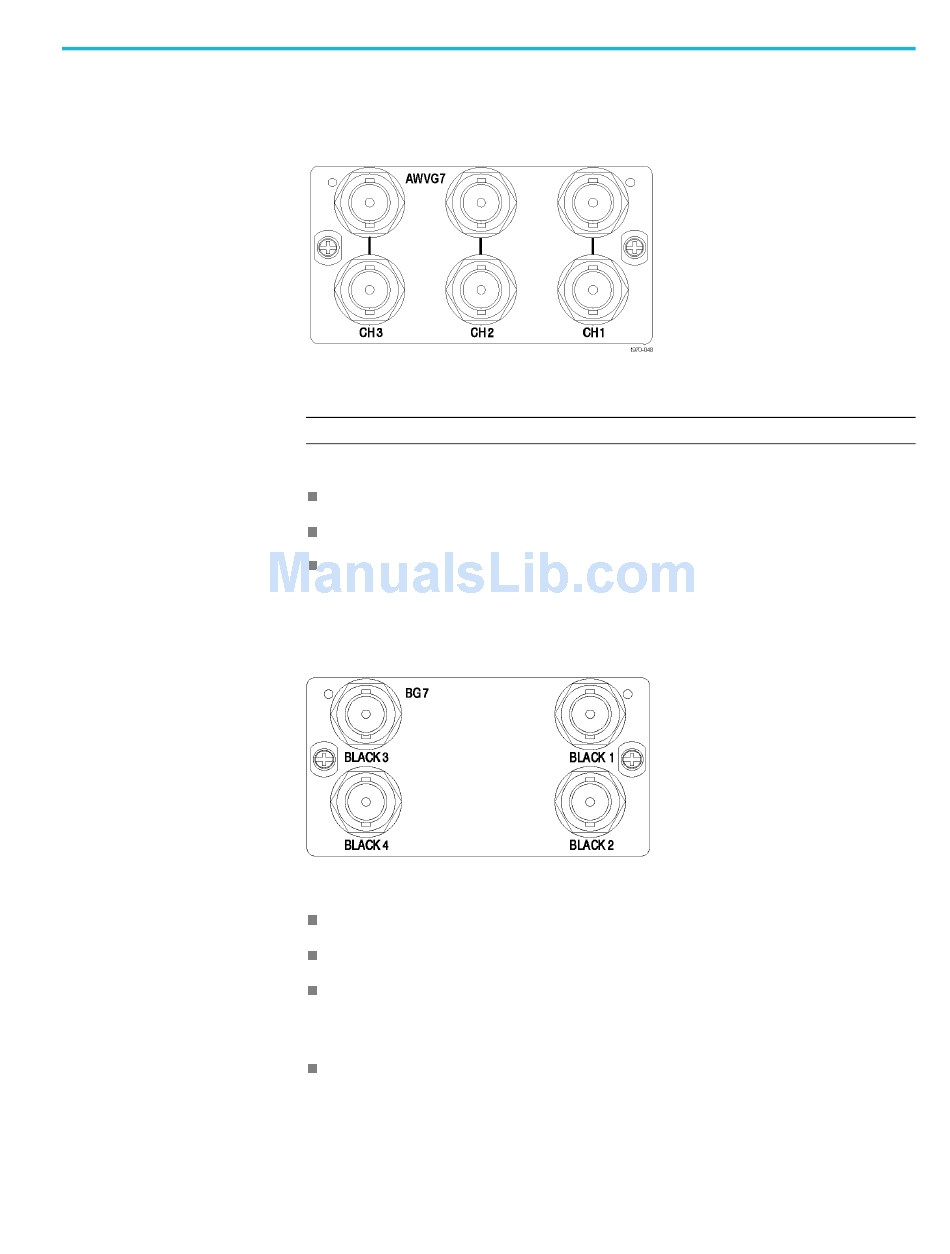

Figure 2-9: AWVG7 module connectors

NOTE.
Each pair of connectors (CH 1, CH 2, and CH 3) output the same signal.
CH 1: Outputs the selected analog component video signal.
CH 2: Outputs the selected analog component video signal.
CH 3: Outputs the selected analog component video signal.
The BG7 Black Generator module is equipped with four BNC connectors as
described below. (See Figure 2-10.)

Figure 2-10: BG7 module connectors

BLACK 1: Outputs the selected black burst or HDTV trilevel sync signal.
BLACK 2: Outputs the selected black burst or HDTV trilevel sync signal.
BLACK 3: Outputs the selected black burst or HDTV trilevel sync signal.
Option CB enables this connector to also output a 10 field ID or color bars
signal.
BLACK 4: Outputs the selected black burst or HDTV trilevel sync signal
output. Option CB enables this connector to also output a 10 field ID or color
bars signal.
