ATG7 Analog Test Generator module
ATG7 module
SELECT SIGNAL submenu

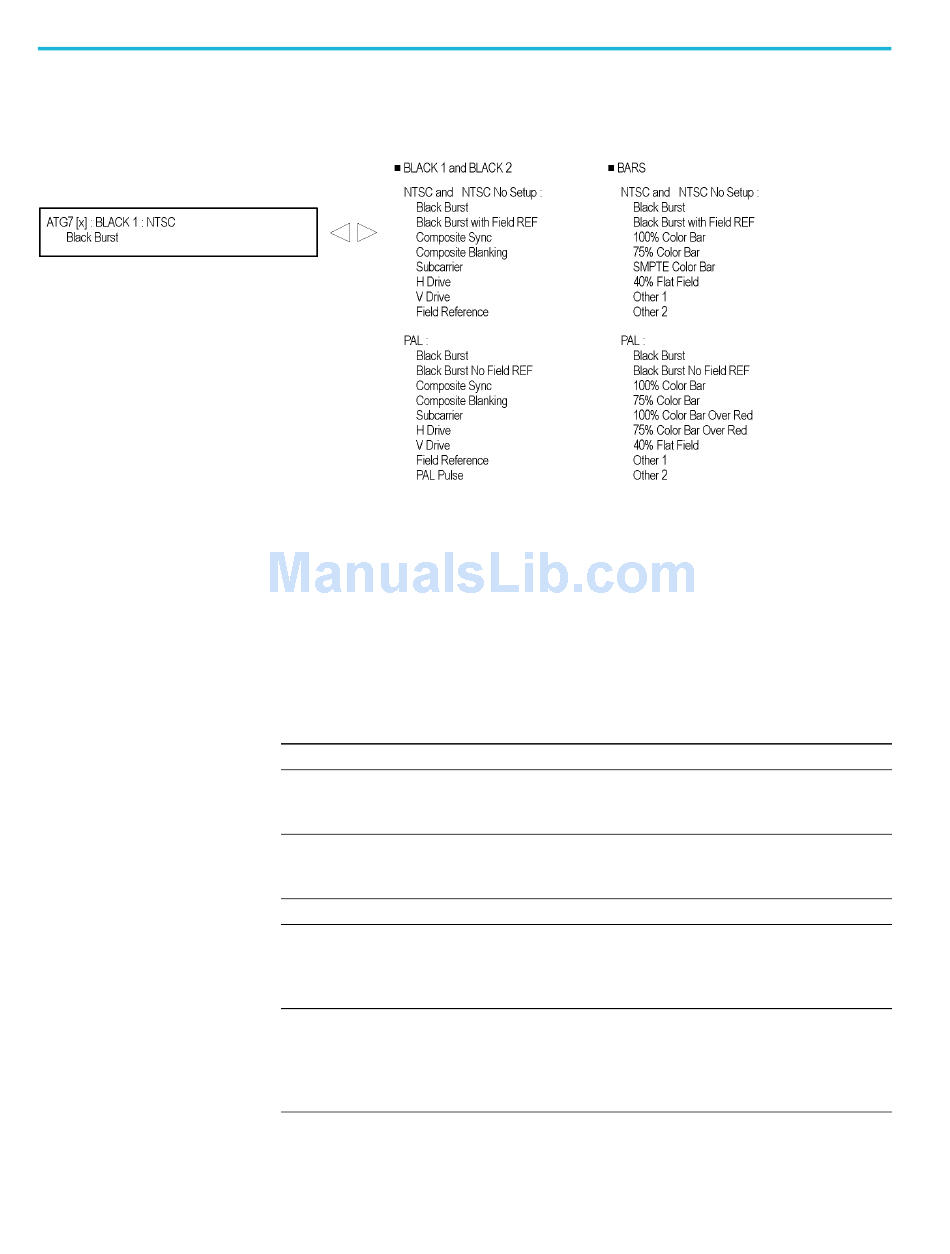

Figure 3-12: ATG7 module SELECT SIGNAL submenu
3–24
Use this menu to select an output signal for the BLACK 1, BLACK 2, or BARS
connector. The following figure shows the SELECT SIGNAL submenu.
Use the left (◄) or right (►) arrow button to scroll through the selections. Press
the ENTER button to enable the selected signal.
Which signals are available depend on the selected output connector and the video
format. The following table lists the available signals for each output connector
and video format.

Table 3-6: Test signals in the ATG7 module SELECT SIGNAL submenu

Format
BLACK1 and BLACK 2 connectors
NTSC and NTSC No Setup
PAL
BARS connector
NTSC and NTSC No Setup
PAL
Test signals
Black Burst, Black Burst with Field REF,
Composite Sync, Composite Blanking,
Subcarrier, H Drive, V Drive, Field Reference
Black Burst, Black Burst No Field REF, Composite
Sync, Composite Blanking, Subcarrier, H Drive,
V Drive, Field Reference, PAL Pulse
Black Burst, Black Burst with Field REF, 100%
Color Bar, 75% Color Bar, SMPTE Color Bar,
40% Flat Field, Other 1 (SNG Color Bars), Other
2 (Monitor Setup Matrix)
Black Burst, Black Burst No Field REF, 100%
Color Bar, 75% Color Bar, 100% Color Bar Over
Red, 75% Color Bar Over Red, 40% Flat Field,
Other 1 (4 Level Pedestal & Pluge), Other 2
(Monitor Setup Matrix)
