To select an output signal on the AVG7 module

To select the signal format
TG8000 Multiformat Test Signal Generator User Manual
To output a signal from the AVG7 module, you need to select a signal format
and output signal as described below.
Perform the following steps to select the signal format:

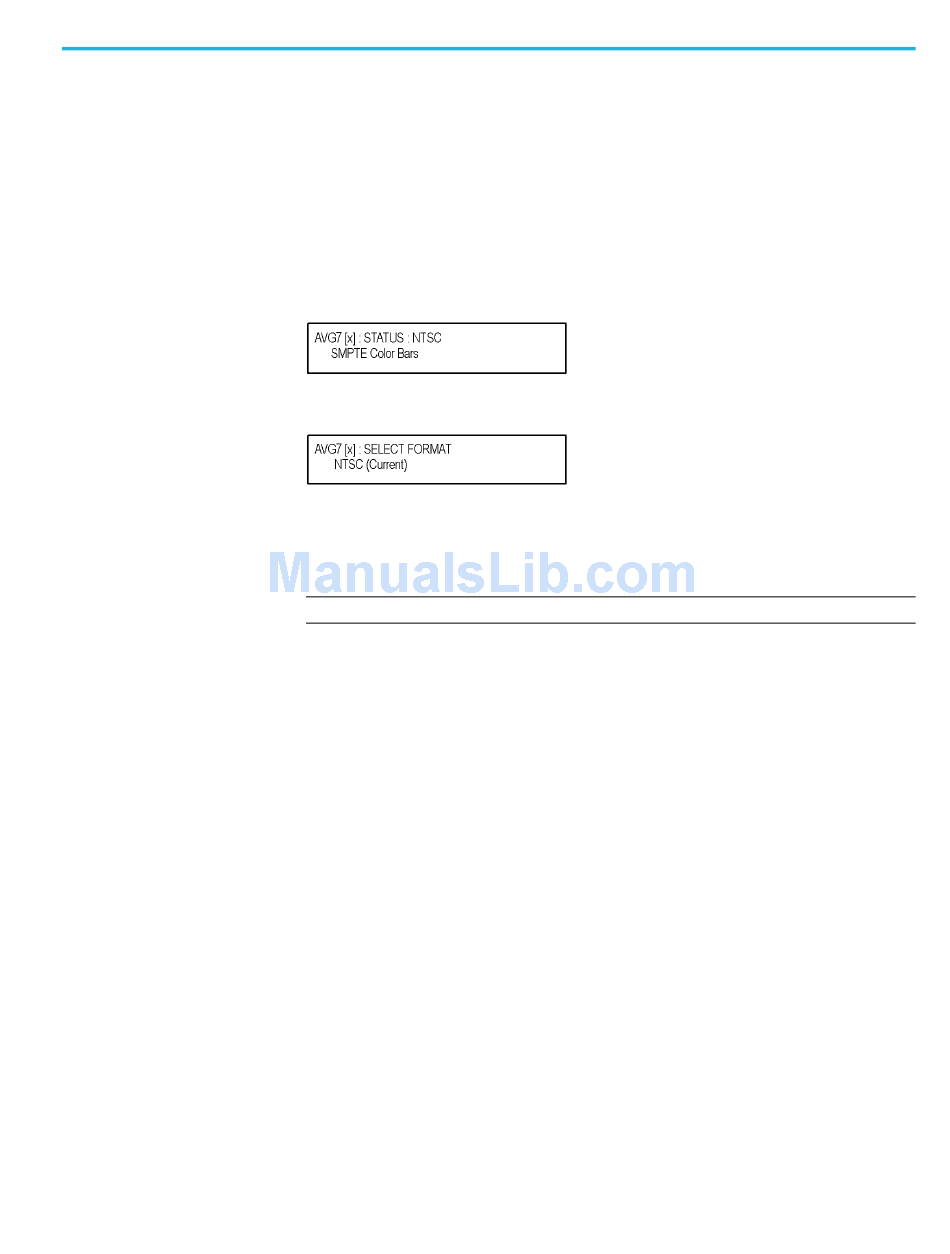

1. If the AVG7 module menu is not displayed, press the front-panel MODULE
button until the AVG7 module main menu appears as shown below.
2. Press the FORMAT button. The menu display changes as follows:
3. Use the left (◄) or right (►) arrow button, or press the FORMAT button
repeatedly, to select one of the signal formats, and then press the ENTER
button to confirm the selection.
NOTE. When you change signal format, synchronization shock occurs.
4. If you change the signal format while a test signal is being output, the
instrument starts loading all of the signal sets for the selected format and
displays the following message "Now Loading...". When you see the
message, "Done (Press BACK)", press the BACK button.
AVG7 Analog Video Generator module
3–31
