ATG7 module
ID TEXT submenu
TG8000 Multiformat Test Signal Generator User Manual
Use this menu to edit text that is overlaid on the signal for the SIGNAL and
BARS outputs, and to set the display position of the text. Use the up (▲) or
down (▼) arrow button to scroll through the menu. The following table shows
the ID TEXT submenu.

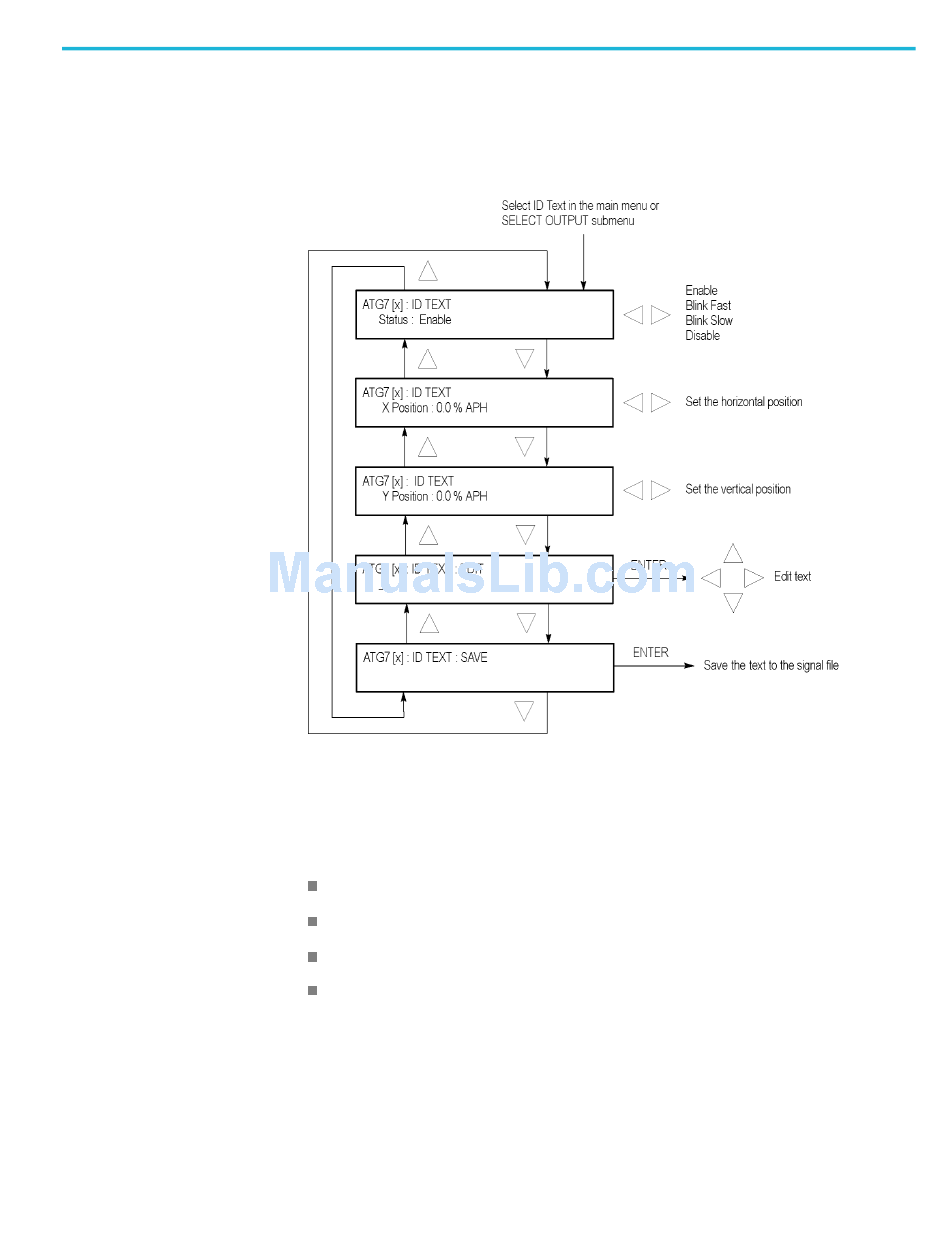

Figure 3-13: ATG7 module ID TEXT submenu
Status. Sets the blinking mode of the text overlay. Use the left (◄) or right (►)
arrow button to select one of the following blink modes, and then press the
ENTER button to confirm the selection.
Enable: Turns on the blinking function of the overlay.
Blink Fast: Sets the overlay to blink at approximately 0.5 second intervals.
Blink Slow: Sets the overlay to blink at approximately 1.0 second intervals.
Disable: Turns off the blinking function of the overlay.
X position. Sets the horizontal position of the text. The position is set as a
percentage of active picture width. Use the left (◄) or right (►) arrow button to
change the position. You can set the value from 0.0% to 100.0% in 1% steps.
ATG7 Analog Test Generator module
