BG7 module main menu

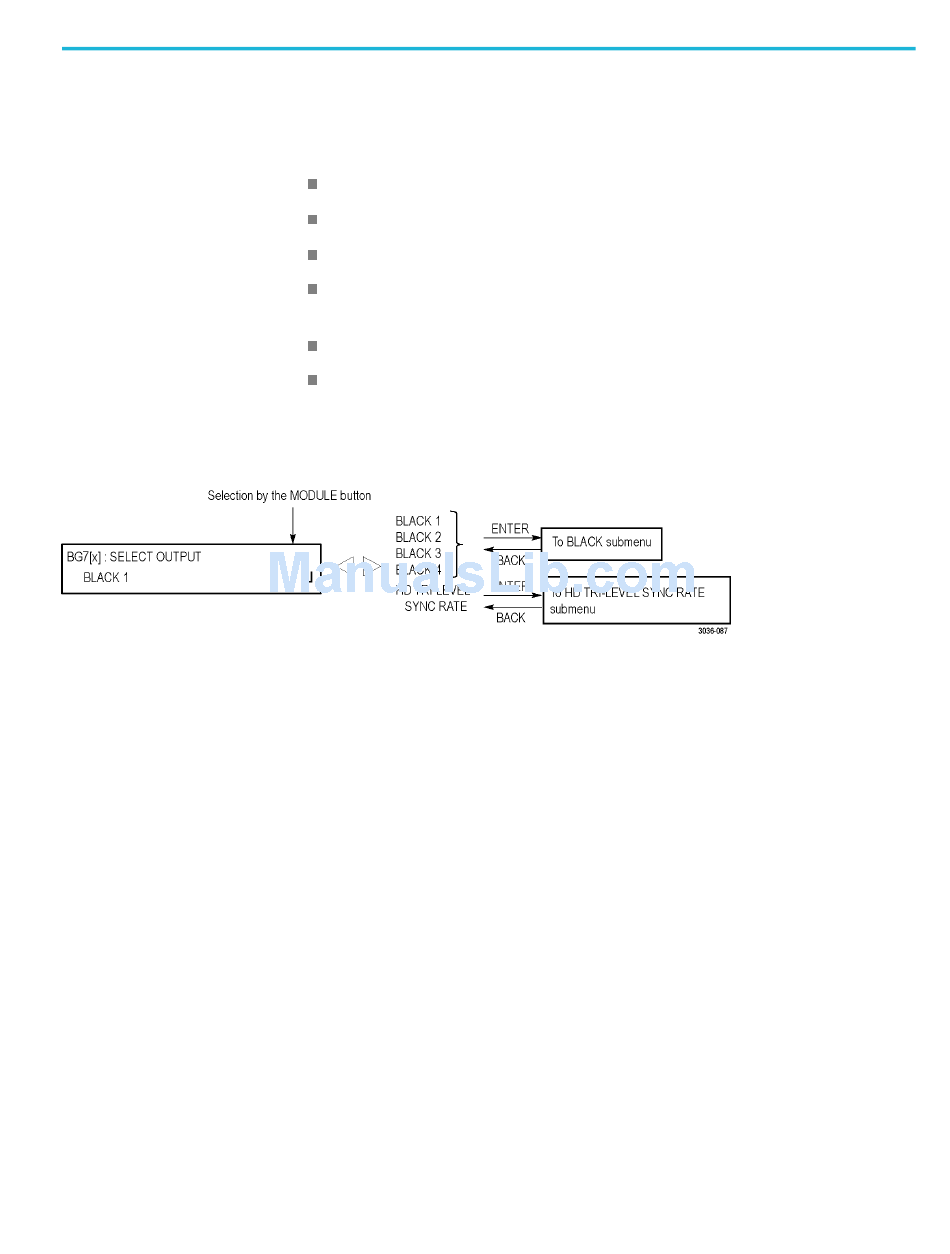

Figure 3-35: BG7 module main menu
TG8000 Multiformat Test Signal Generator User Manual
Use the BG7 module main menu to perform the following tasks:
Select an output to format.
Set the HD trilevel sync rate for all of the BLACK outputs.
Set the format of the selected output.
Select the test signal for the BLACK 3 and BLACK 4 outputs
(Option CB only).
Set the timing offset for the selected output.
Set timecode parameters for the selected output when a GPS7 module is
installed. The BG7 module hardware must be version 1.2 or above and the
mainframe must have software version 5.1 or above installed.
The following figure shows the BG7 module main menu.
SELECT OUTPUT. Selects which BLACK output to configure for signal format,
timing, and timecode parameters or selects the HD trilevel sync rate for the four
BLACK outputs.
Use the left (◄) or right (►) arrow button to select the output you want to
configure (BLACK 1, BLACK 2, BLACK 3, BLACK 4, or HD TRI-LEVEL
SYNC RATE), and then press the ENTER button to access the BLACK
submenu (See page 3-122.) or the HD TRI-LEVEL SYNC RATE submenu (See
page 3-69.).
BG7 Black Generator module
3–65
