AGL7 Analog Genlock module
AGL7 module
OUTPUT submenu

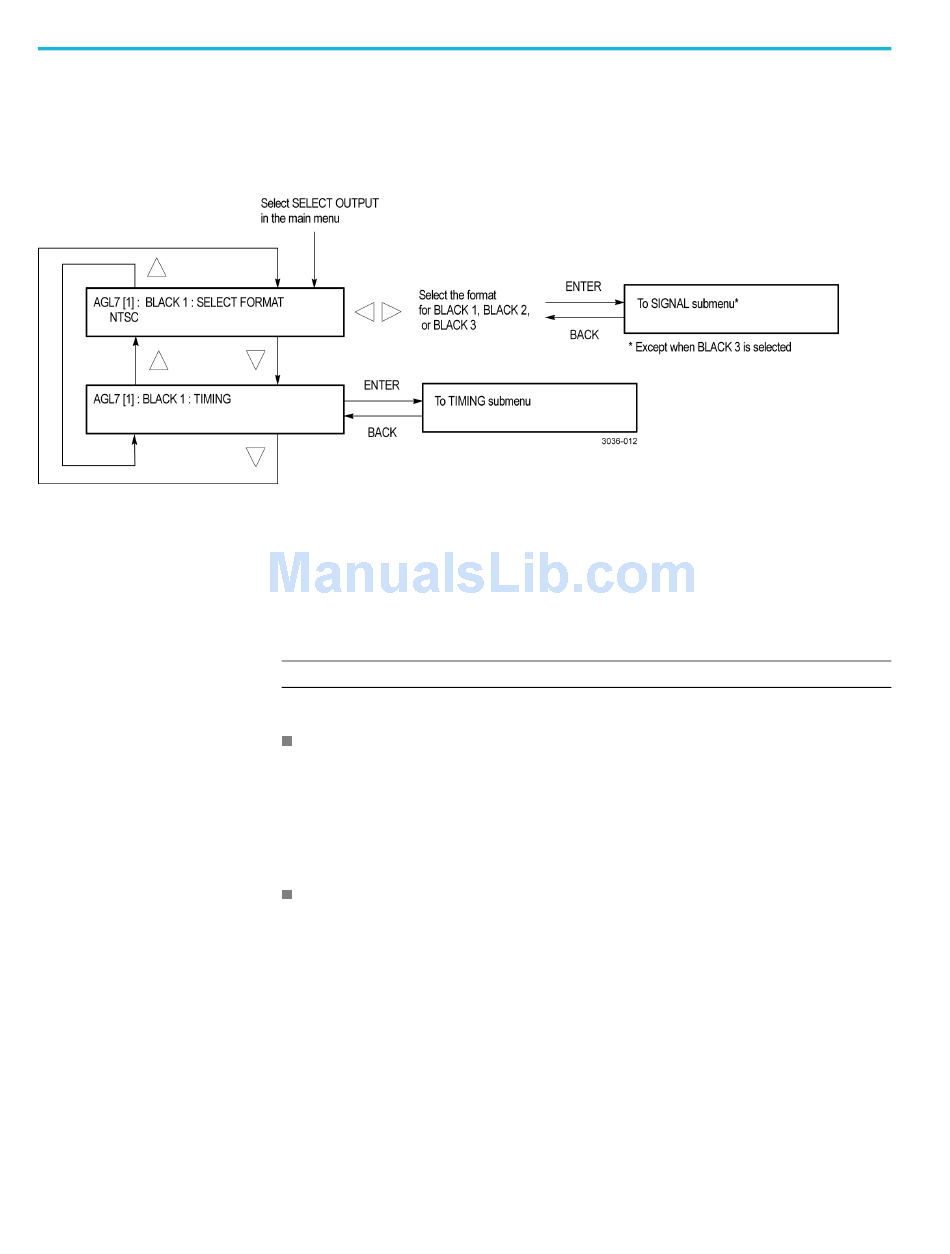

Figure 3-6: AGL7 module OUTPUT submenu
3–12
Use this submenu to set the signal format and the timing offset for the output
selected in the SELECT OUTPUT menu item. Use the up (▲) or down (▼)
arrow button to change the menu items. The following figure shows the OUTPUT
submenu.
SELECT FORMAT. Selects the format for the signal output from the BLACK 1,
BLACK 2, or BLACK 3 connector. Use the left (◄) or right (►) arrow button
to select the format. The available choices described below depend on which
output connector you select.
NOTE.
When you change signal format, synchronization shock occurs.
When BLACK 1 is selected, the formats listed below are available. Press the
ENTER button to confirm the selection and to access the SIGNAL submenu
where you will select a black burst signal. (See page 3-13.)
NTSC
NTSC No Setup
PAL
When BLACK 2 is selected, the formats listed below are available. Press the
ENTER button to confirm the selection and to access the SIGNAL submenu
where you will select a black burst signal. (See page 3-13.)
NTSC
NTSC No Setup
PAL
HD SYNC (Same as BLACK 3)
