DVG7 Digital Video Generator module
DVG7 module Use this menu to edit the text that is overlaid on the output test signal and to set
the display position of the text. Use the up (▲) or down (▼) arrow button to
ID TEXT submenu
scroll through the menu. The following figure shows the ID TEXT submenu.

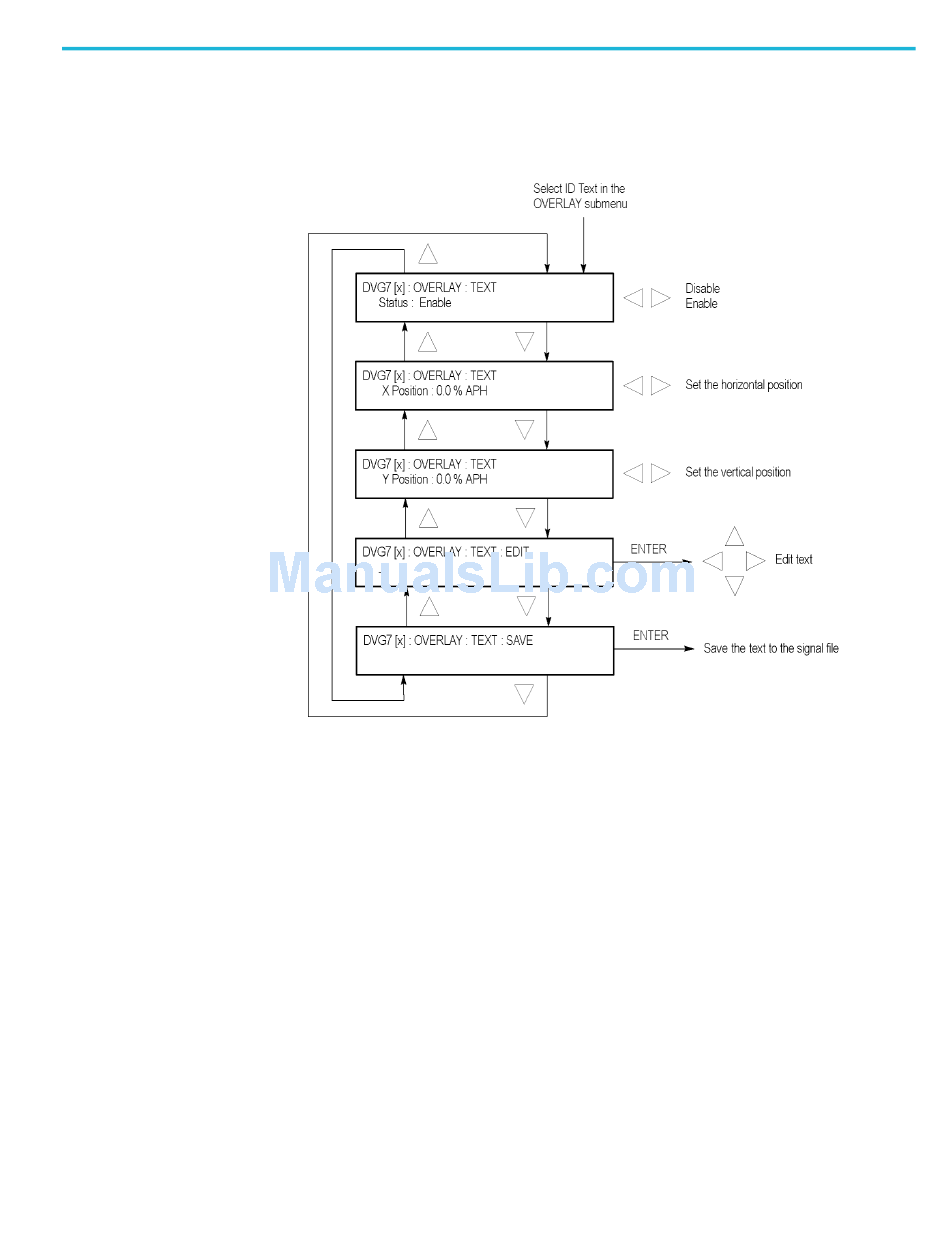

Figure 3-46: DVG7 module ID TEXT submenu
Status. Enables or disables the text overlay. Use the left (◄) or right (►) arrow
button to select between Enable and Disable, and then press the ENTER button
to confirm the selection.
X position. Sets the horizontal position of the text. The position is set as a
percentage of active picture width. Use the left (◄) or right (►) arrow button to
change the position. You can set the value from 0.0% to 100.0% in 1% steps.
Y position. Sets the vertical position of the text. The position is set as a percentage
of active picture height. Use the left (◄) or right (►) arrow button to change the
position. You can set the value from 0.0% to 100.0% in 1% steps.
TG8000 Multiformat Test Signal Generator User Manual 3–85
