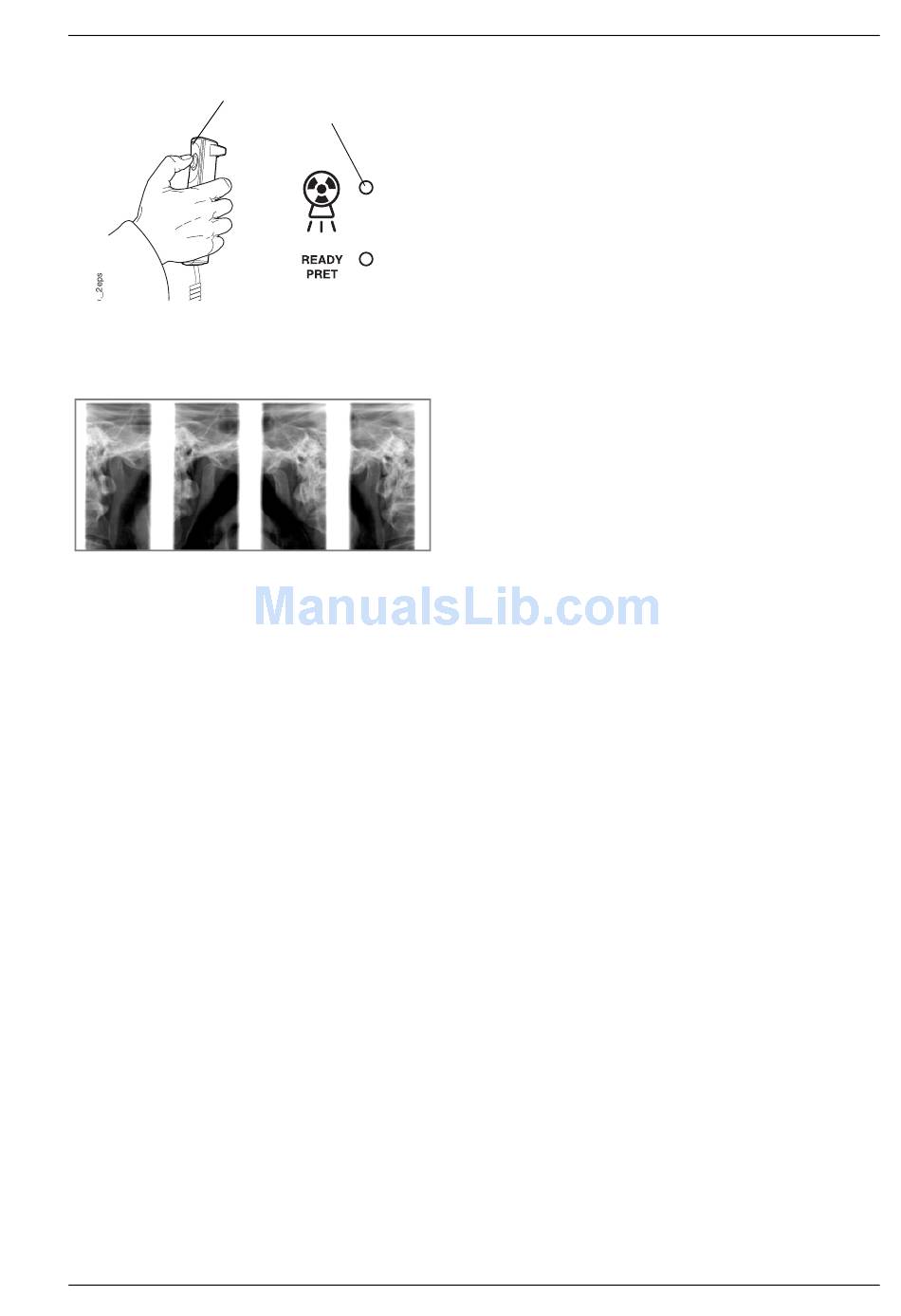

Amber exposure
indicator light
2/2
1/2
User's Manual (2D)
TEMPOROMANDIBULAR JOINT (TMJ) EXPOSURE
Press and hold down the exposure button for the duration
of the second exposure. During the exposure cycle the
radiation warning lights on the exposure switch and on the
control panel will come on and you will hear a radiation
warning tone. When the C-arm has completed the second
exposure cycle the temple supports will automatically
open. You can now guide the patient from the unit.
NOTE Maintain audio and visual contact with the patient and
unit during exposure. If the C-arm stops moving
during exposure, or moves in an erratic way, release
the exposure button immediately.
When you have taken the exposure the image will be
shown on the computer screen. Note that you must
accept the image in the Planmeca Romexis program -
only accepted images will be stored in the database.
Refer to the Romexis User's Manual.
1/2
2/2
Planmeca ProMax 3D Mid 47
