PROGRAMS
4.2

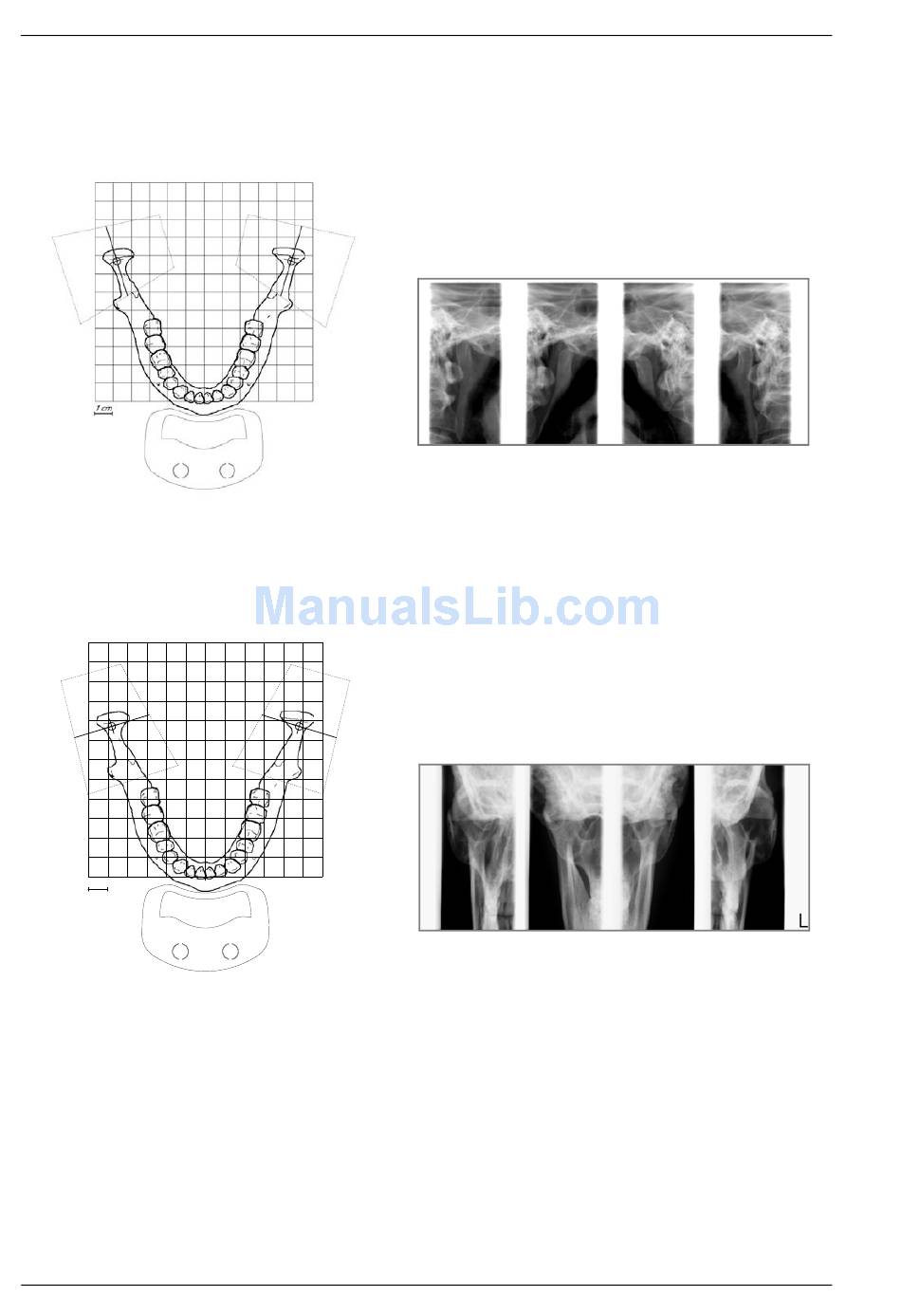

Temporomandibular joint (TMJ) programs
Double lateral
Double PA
1 cm
10 Planmeca ProMax 3D Mid
Lateral TMJ exposures of closed (1/2) and open (2/2)
temporomandibular
joints.
adjustable (default angle: 17°).
1/2
2/2
Postero-anterior TMJ exposures of closed (1/2) and open
(2/2) temporomandibular joints. The imaging angle is
adjustable (default angle: 17°).
PA exposures are taken perpendicular to the long axis of
the condyle (90° - 17° = 73°). The condyle angle is shown
as default angle.
1/2
2/2
The
imaging
angle
2/2
1/2
2/2
1/2
User's Manual (2D)
