Planmeca ProMax 3D Mid User Manual page 15

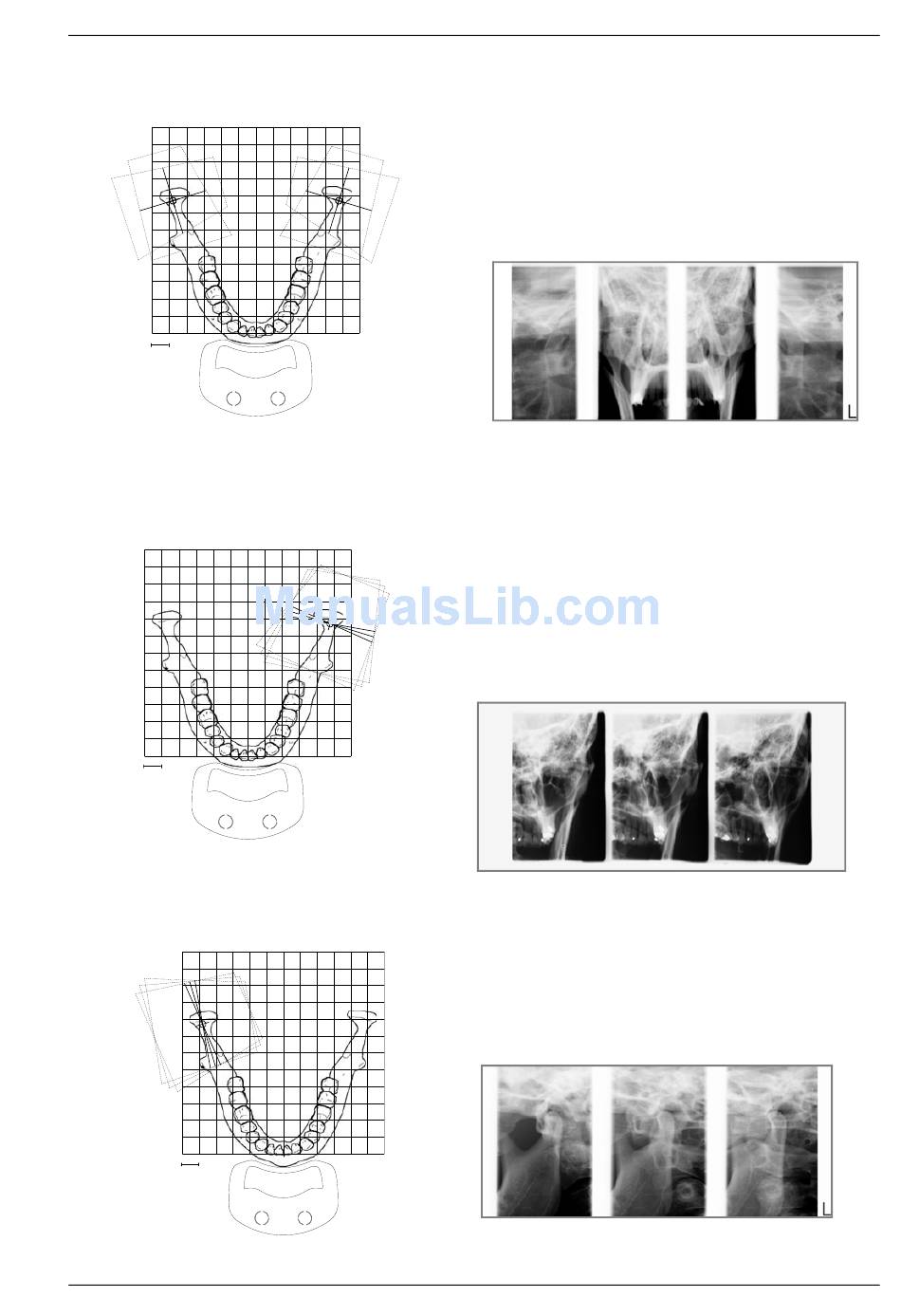

Double lat-PA
1 cm
3 angles PA (L / R)
1 cm
3 angles lat (L / R)
1 2 3
1 cm
User's Manual (2D)
Lateral (1/2) and postero-anterior (2/2) TMJ exposures of
closed or open temporomandibular joints. The imaging
angles (lateral and PA) are adjustable (default angle: 17°).
PA exposures are taken perpendicular to the long axis of
the condyle (90° - 17° = 73°). The condyle angle is shown
as default angle.
1/2
Three postero-anterior multi-angle left-hand or right-hand
side TMJ exposures.
The imaging angle for image no. 2 is adjustable (three
imaging angles: 17° ±7° by default). The selected imaging
angle is in image no. 2.
PA exposures are taken perpendicular to the long axis of
1
2
3
the condyle (90° - 17° = 73°). The condyle angle is shown
as default angle.
Three lateral multi-angle left-hand or right-hand side TMJ
exposures.
The imaging angle for image no. 2 is adjustable (three
imaging angles: 17° ±7° by default). The selected imaging
angle is in image no. 2.
3/3
2/2
2/2
2/3
3/3
2/3
Planmeca ProMax 3D Mid 11
PROGRAMS
1/2
1/3
1/3
