5.3.1 Selecting jaw shape & size in panoramic programs
Jaw size:
Narrow
Average
Wide
Jaw shape:
User's Manual (2D)
This function adjusts the form of the image layer to
accommodate patients with different jaw shapes and
sizes.
NOTE The setting in the jaw field will automatically change to
correspond with the selected patient size.
Selecting the smallest patient size will automatically
change the jaw shape and size setting to Normal &
Narrow.
Selecting any of the three patient sizes in the middle will
automatically change the jaw shape and size setting to
Normal & Average.
Selecting the biggest patient size will automatically
change the jaw shape and size setting to Normal & Wide.
If necessary, you can select the jaw shape and size
manually by touching the Jaw field or jaw icon on the main
display.

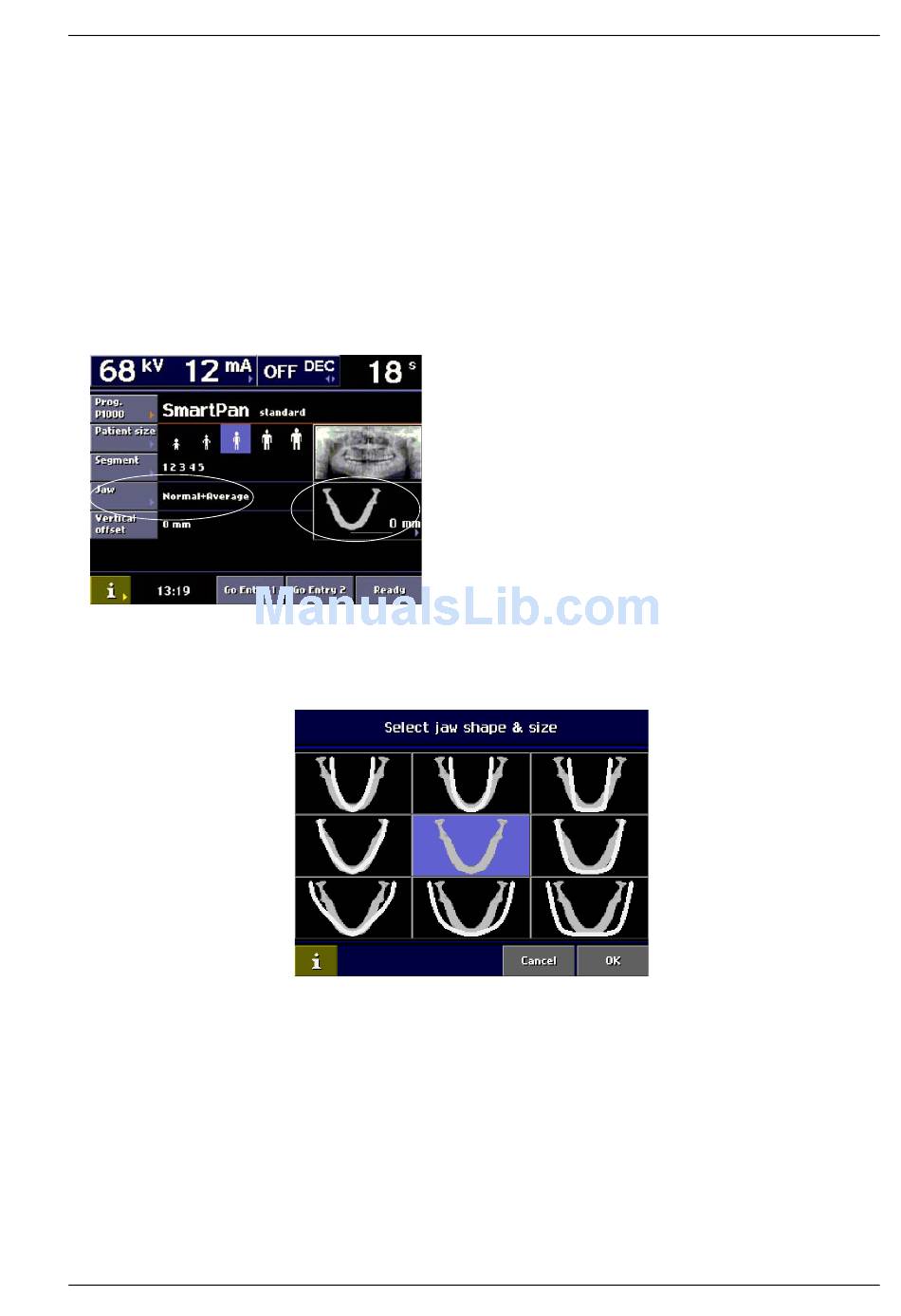

The Select jaw shape & size display appears. The
marking on the jaw icon demonstrates the image layer.
Select the required jaw shape and size by tapping the
corresponding icon. The selected jaw icon will be
highlighted.
NOTE Selecting jaw shape and size manually will override
the automatic setting.
V-shaped
Normal
Confirm the selection and return to the main display by
touching OK.
