PANORAMIC EXPOSURE
Second
incisor
36 Planmeca ProMax 3D Mid
Frankfort
plane
light
Thumb
wheel
Apices of upper
central incisors
Canine
Layer light
Layer light
Thumb
wheel
NOTE The layer light is disabled when Autofocus is switched

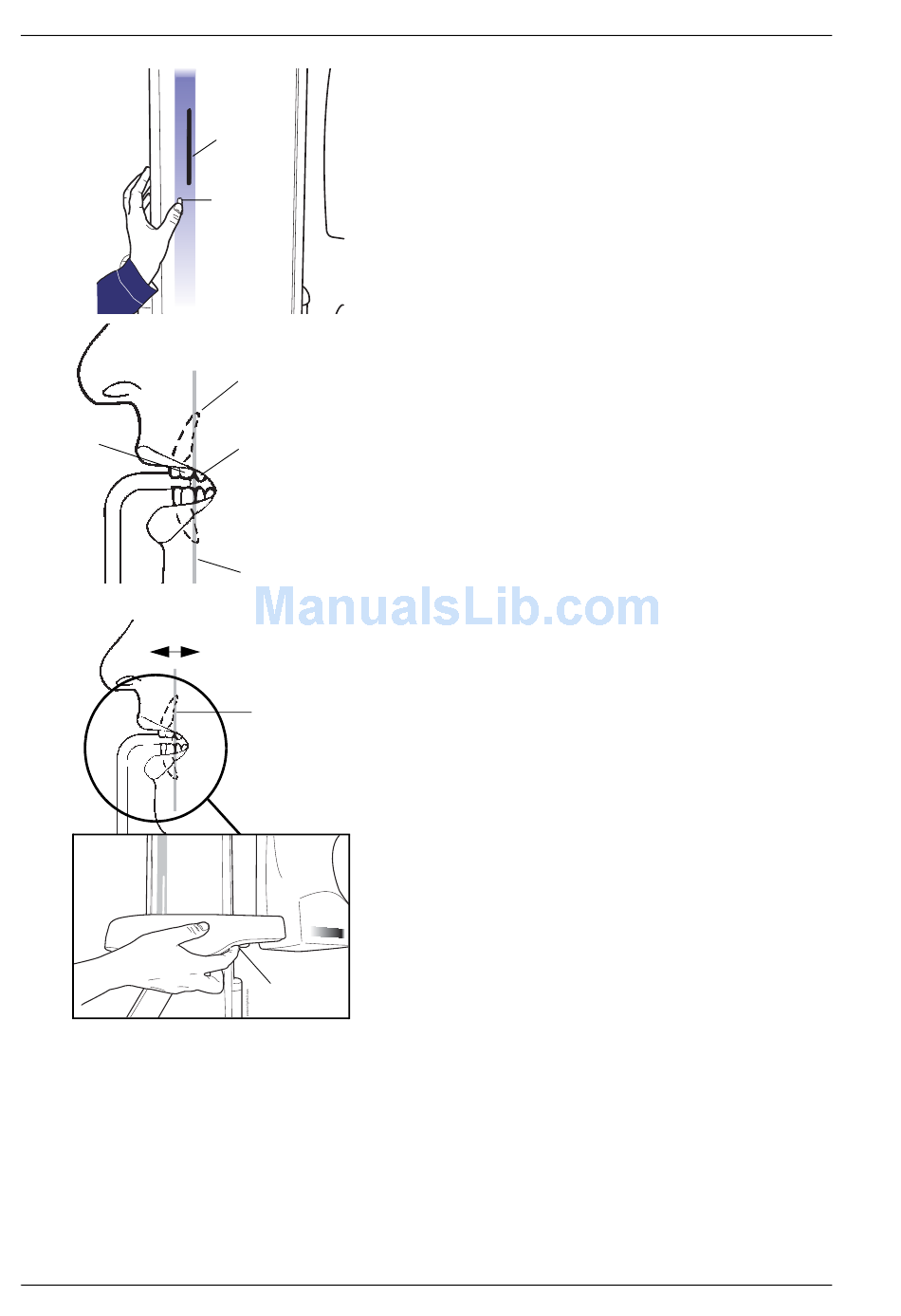

The Frankfort plane light, which is located on the side of
the column, can be moved up or down. This is done by
rotating the thumb wheel below the light slot.
Position the apices of the patient's upper central incisors
within the image layer of the unit.
To do this, rotate the thumb wheel located on the
underside of the patient support table to move the layer
light until it falls between the second incisor and the
canine. For an average patient, this procedure will place
the apices of the upper central incisors within the image
layer.
on (AF ON).
Check that the Frankfort plane light and the midsagittal
plane light are still correctly positioned. Reposition them if
necessary.
User's Manual (2D)
