5.4.1 Selecting jaw size and adjusting imaging position & angle in TMJ programs
User's Manual (2D)

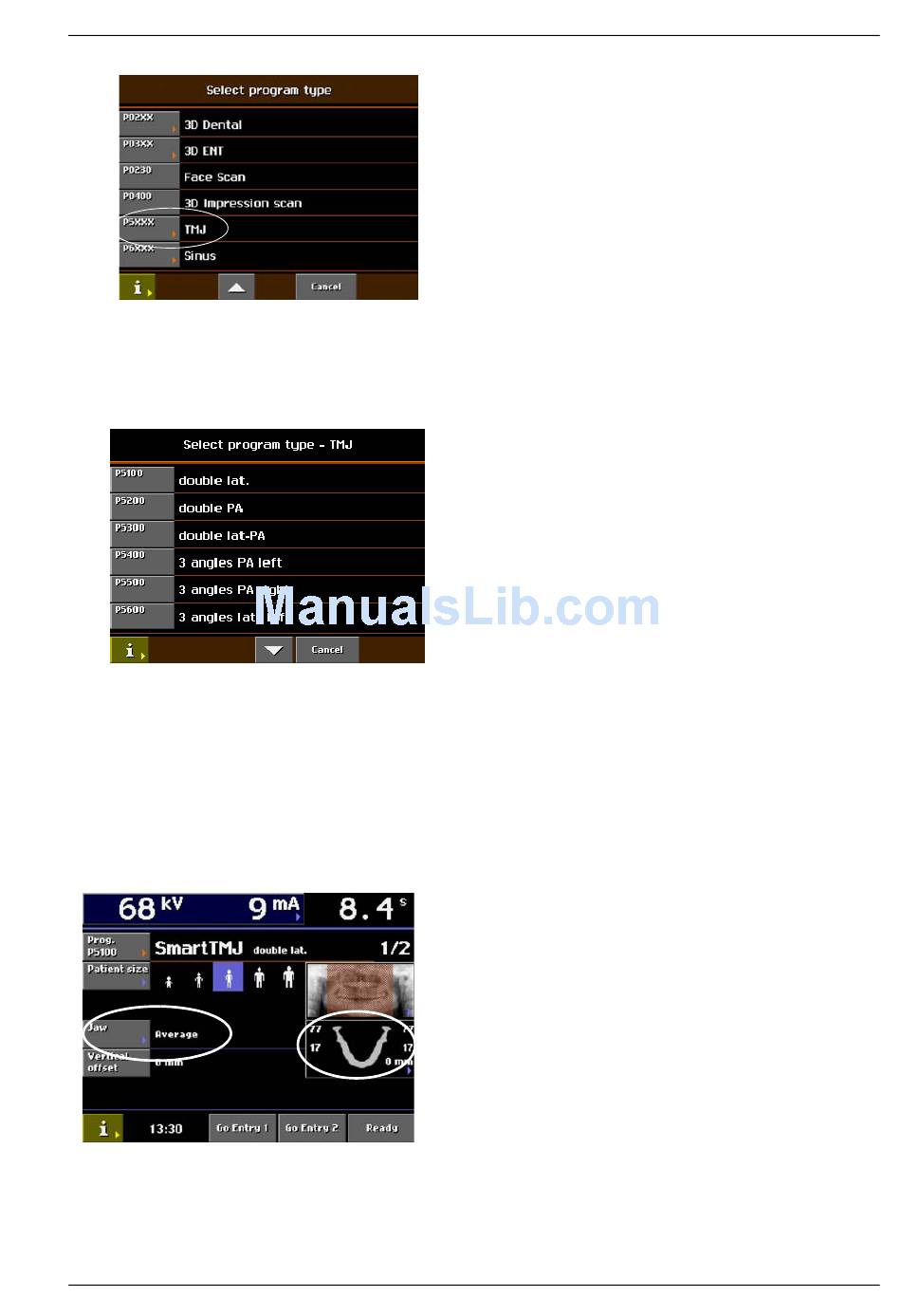

The Select program type display appears. Select program
type TMJ.
NOTE The Select program type display will show all the
exposure programs that the X-ray unit features at the
moment. The X-ray unit can be upgraded with new
exposure programs, contact your dealer for further
information.
On the next display, select the TMJ program you wish to
use. If the program is not shown on the display, you can
use the down arrow to scroll through the list.
Refer to section 4.2 "Temporomandibular joint (TMJ)
programs" on page 10 for a more detailed description of
the program types.
When you have selected the program the main display
will be shown again.
This function adjusts the image layer (focal through) to
accommodate patients with different jaw sizes.
NOTE The setting in the jaw field will automatically change to
correspond with the selected patient size.
Selecting the smallest patient size will automatically
change the jaw size setting to Narrow.
Selecting any of the three patient sizes in the middle will
automatically change the jaw size setting to Average.
Selecting the biggest patient size will automatically
change the jaw size setting to Wide.
If necessary, you can select the jaw size manually by
touching the Jaw field or jaw icon on the main display.
The Select jaw size, adjust position and angle display
appears. The marking on the jaw icon demonstrates the
image layer. Select the required jaw size by tapping the
corresponding icon. The selected jaw icon will be
highlighted.
NOTE Selecting the jaw size manually will override the
automatic setting.
