Commissioning (via operating menu)
10.5

Configuration of a level measurement

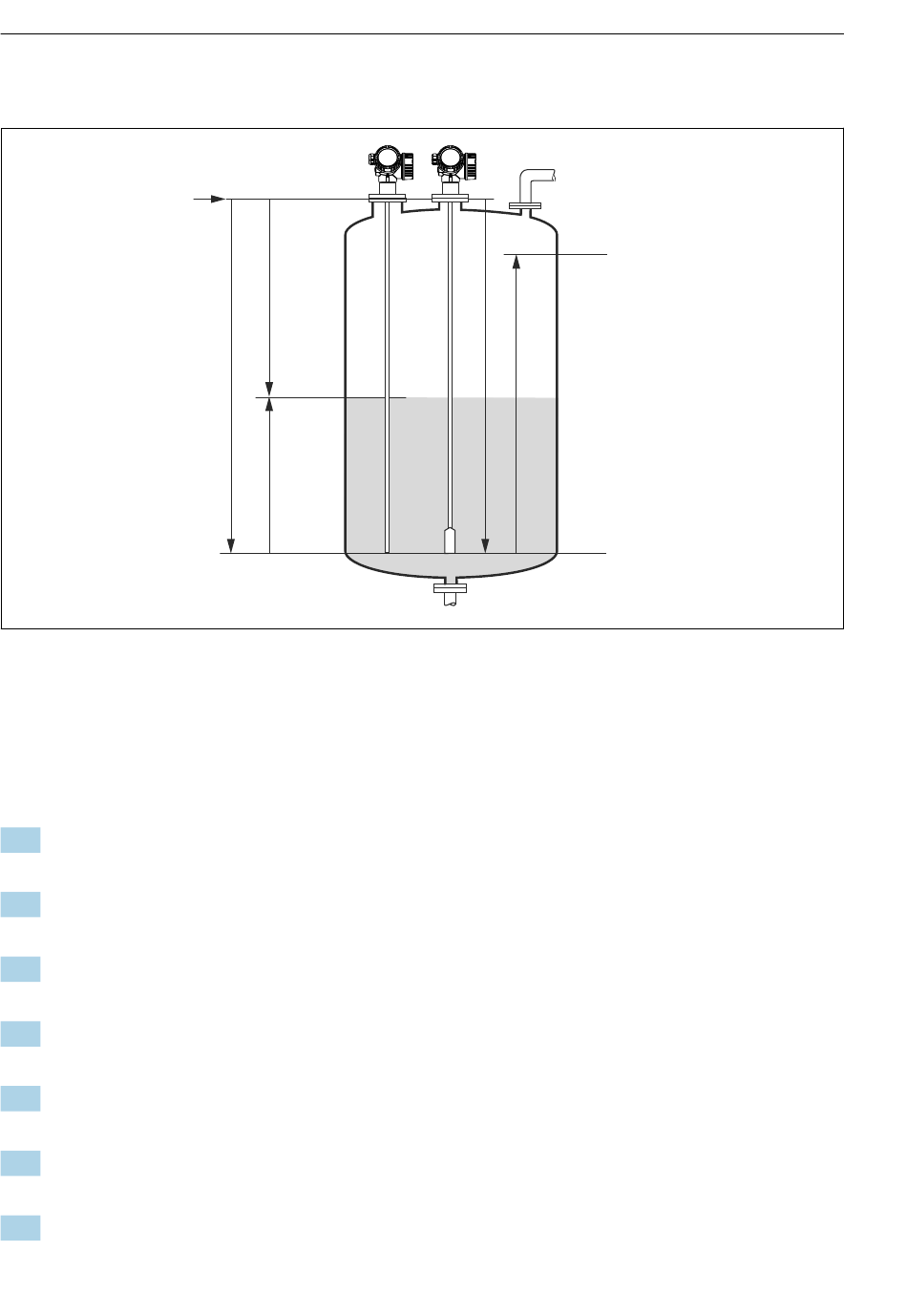

 15 Configuration parameters for level measurements in liquids
LN = Length of probe
D = Distance
L = Level
1. Setup → Device tag
 Enter tag for measuring point.
2. Setup → Device address
 Enter bus address of the device (only in case of software addressing).
3. Setup → Distance unit
 Select distance unit.
4. Setup → Tank type
 Select tank type.
5. Setup → Tube diameter (only if "Tank type" = "Bypass / pipe")
 Enter the diameter of the bypass or stilling well.
6. Setup → Medium group
 Select medium group (Others or Water based (DC >= 4))
7. Setup → Empty calibration
 Enter the distance E between the reference point R and the minimum level (0%).
38
R
D
LN
L
R = Reference point of the measurement
E = Empty calibration (= Zero point)
F = Full calibration (= span)
Levelflex FMP53 PROFIBUS PA
20 mA
100%
E
F
4 mA
0%
A0011360
