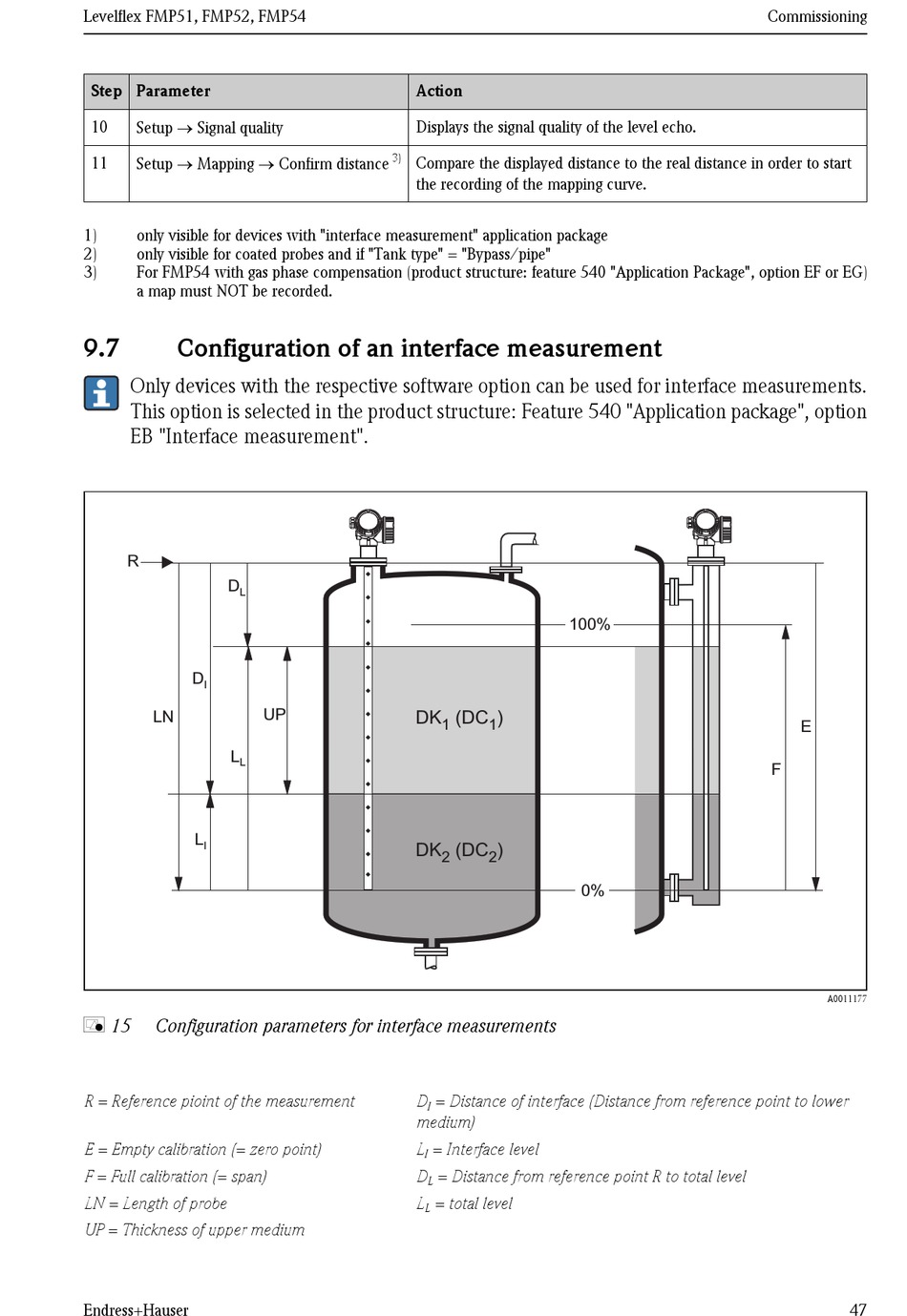

9.7

Configuration of an interface measurement

Only devices with the respective software option can be used for interface measurements.
This option is selected in the product structure: Feature 540 "Application package", option
EB "Interface measurement".
R
D
L
D
I
LN
L
L
L
I
å 15 Configuration parameters for interface measurements
R = Reference pioint of the measurement
E = Empty calibration (= zero point)
F = Full calibration (= span)
LN = Length of probe
UP = Thickness of upper medium
