3.3 Installation in a rack
The ATLAS 60 NW can be installed in a 19" rack. To do this, you need two plastic brackets like the ones shown be-
low. The brackets and screws are not included in the basic packet and have to be acquired separately.
Both brackets are attached to the device by means of 8 screws (4 on each side), as shown.

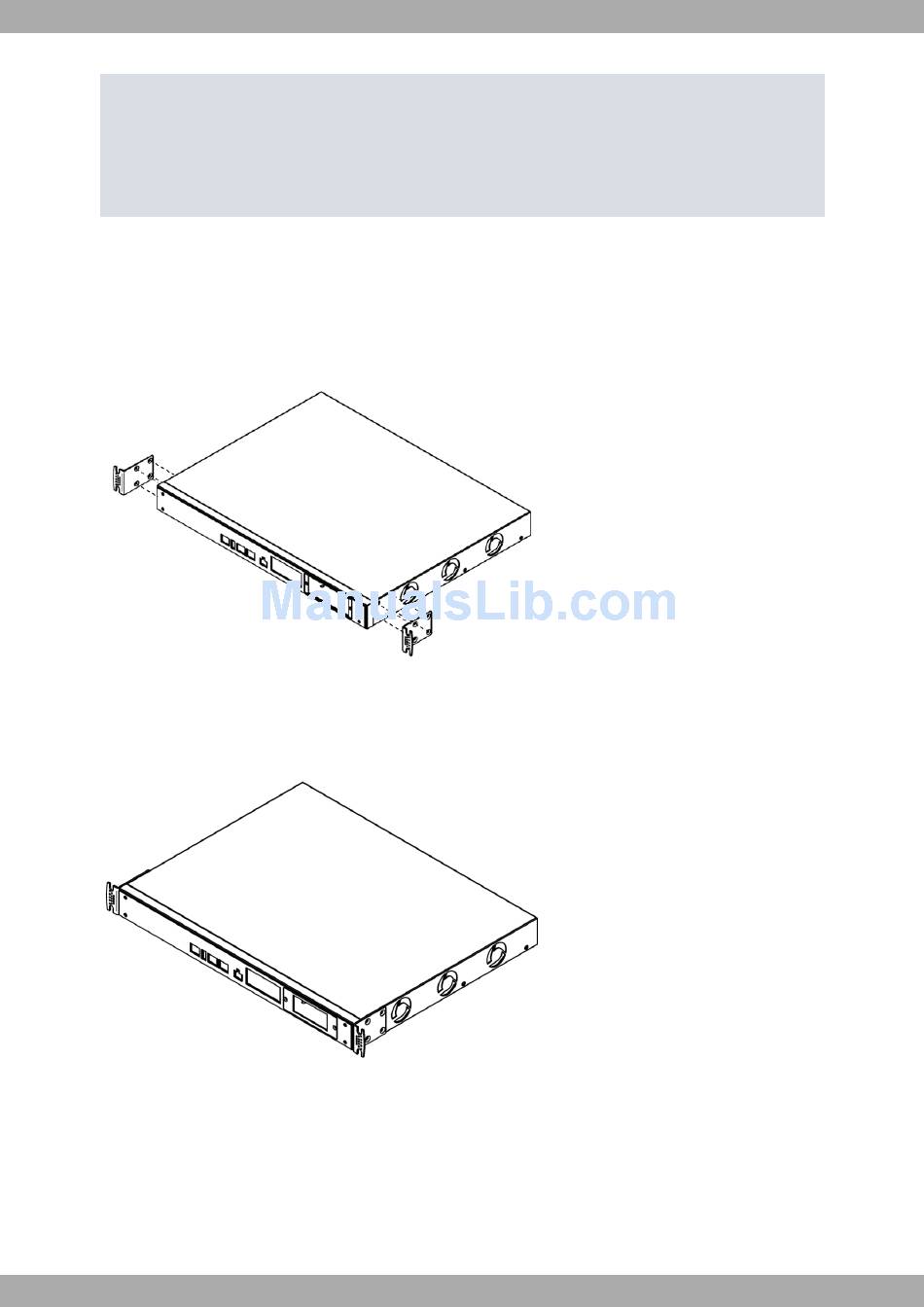

Attaching the brackets
Fig. 26:
The spaces for the screws in the ATLAS 60 NW router leave the factory protected by covers. These can be removed
with a sharp tool (such as a small flat screwdriver). We recommend removing the upper cover to simplify the pro-
cess.
Device with the brackets
Fig. 27:
3.4 Power Source
The ATLAS 60 NW router is powered with an internal power source.
Additionally, the ATLAS 60 NW router can hold an optional card to inject PoE through the 8-port Switch. In this case,
the device is served from an AC/DC external power source to power the PoE module.
