2 Installation
Note
Configuration for the terminal must be:
- Speed: 9600 bps.
- Eight data bits.
- No parity bit.
- One stop bit.
- No type of flow control.
Also expressed as 9600 8N1. The connection to the configuration port can be carried out with DB-9 female-DB-9
male cable provided with the equipment. In cases where the asynchronous terminal has DB25 connectors, you must
use an additional DB9F-DB25F adapter (not included with the equipment).
This assembly can also be used to update the device code. For further information, please see
ware and the configurations

2.3 Installation in a rack

In order to install the Atlas 250 router in a 19-inch rack, you need two plastic strips like the ones shown in the figure.
The strips and the associated screws are not included in the basic packet and need to be acquired separately.
Both strips are attached to the device through four screws, two at each side, as shown in the figure.

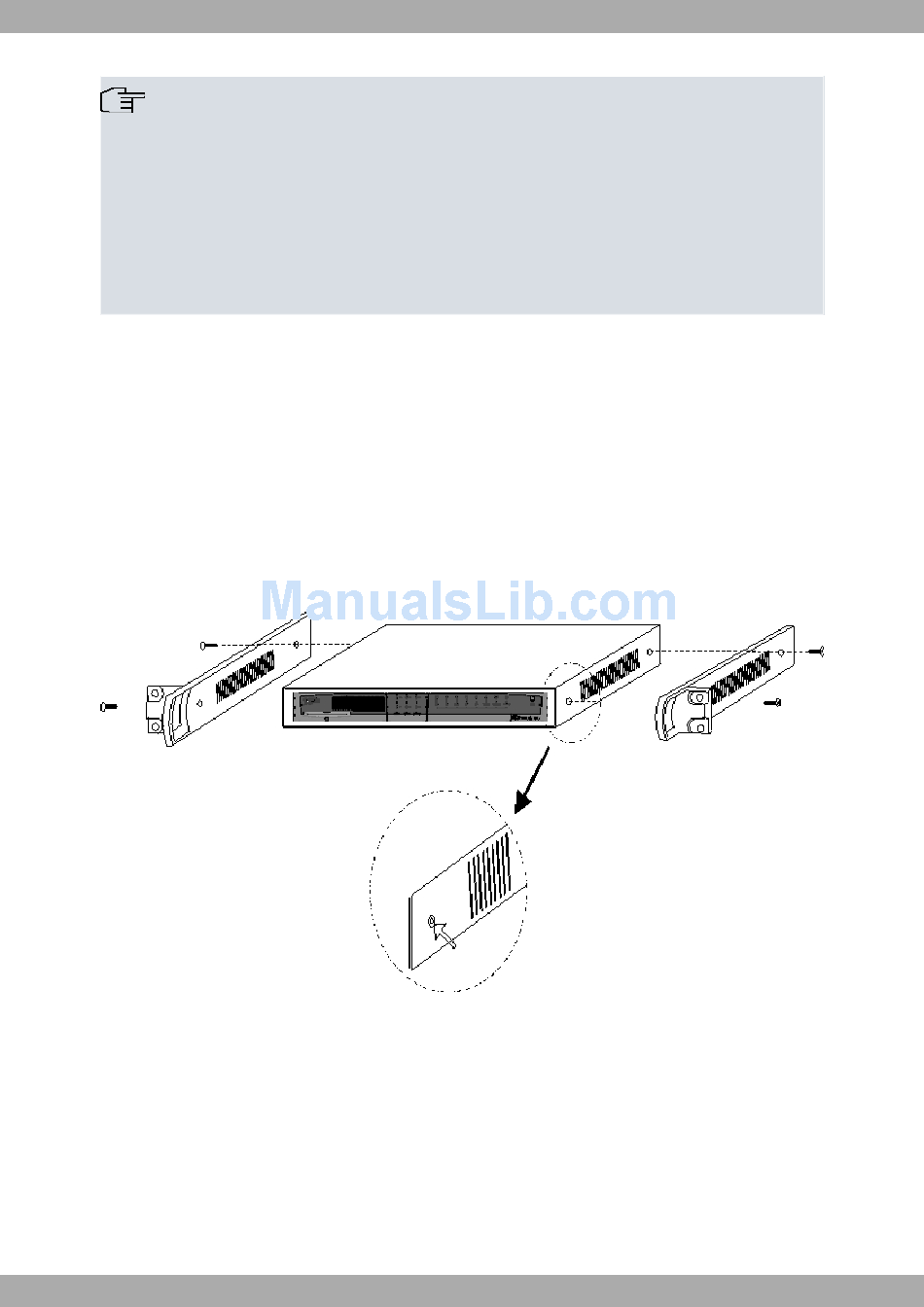

Attaching the strips
Fig. 7:
The spaces for the screws in the Atlas 250 router leave the factory protected by covers. These can be removed by
using a sharp tool (such as a small flat screwdriver). We recommend removing the upper cover in order to carry this
out more easily.
6
on page 16.
Teldat S.A.
Updating the soft-
Atlas 250
