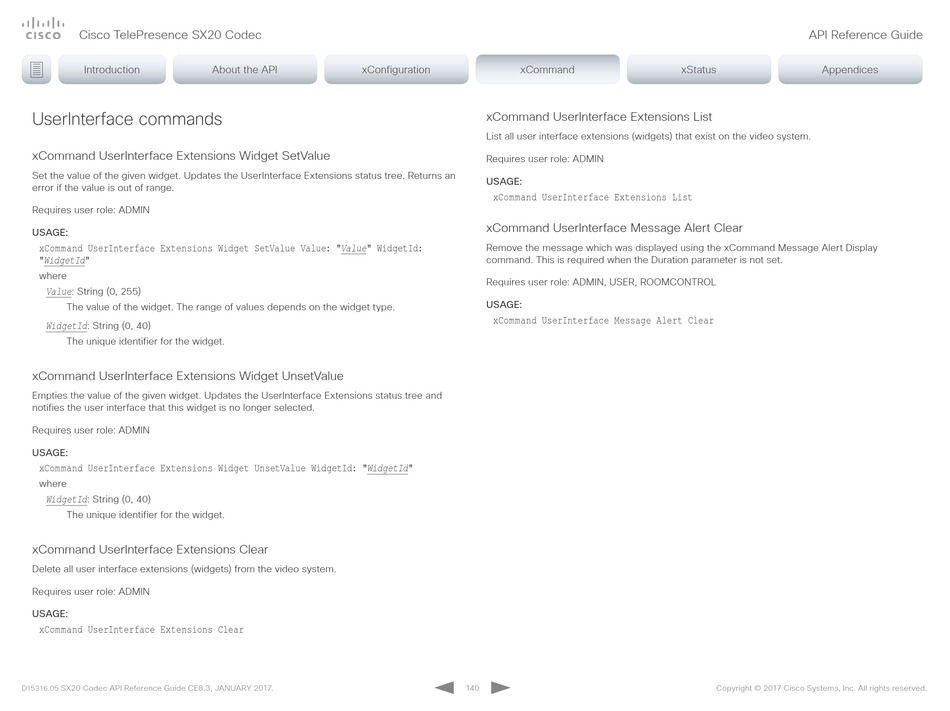

UserInterface commands

xCommand UserInterface Extensions Widget SetValue

Set the value of the given widget. Updates the UserInterface Extensions status tree. Returns an
error if the value is out of range.
Requires user role: ADMIN
USAGE:
xCommand UserInterface Extensions Widget SetValue Value: "Value" WidgetId:
"WidgetId"
where
: String (0, 255)
Value
The value of the widget. The range of values depends on the widget type.
: String (0, 40)
WidgetId
The unique identifier for the widget.

xCommand UserInterface Extensions Widget UnsetValue

Empties the value of the given widget. Updates the UserInterface Extensions status tree and
notifies the user interface that this widget is no longer selected.
Requires user role: ADMIN
USAGE:
xCommand UserInterface Extensions Widget UnsetValue WidgetId: "WidgetId"
where
: String (0, 40)
WidgetId
The unique identifier for the widget.

xCommand UserInterface Extensions Clear

Delete all user interface extensions (widgets) from the video system.
Requires user role: ADMIN
USAGE:
xCommand UserInterface Extensions Clear
SX20 Codec API Reference Guide CE8.3, JANUARY 2017.
D15316.05
About the API xConfiguration xCommand xCommand

xCommand UserInterface Extensions List

List all user interface extensions (widgets) that exist on the video system.
Requires user role: ADMIN
USAGE:
xCommand UserInterface Extensions List

xCommand UserInterface Message Alert Clear

Remove the message which was displayed using the xCommand Message Alert Display
command. This is required when the Duration parameter is not set.
Requires user role: ADMIN, USER, ROOMCONTROL
USAGE:
xCommand UserInterface Message Alert Clear
