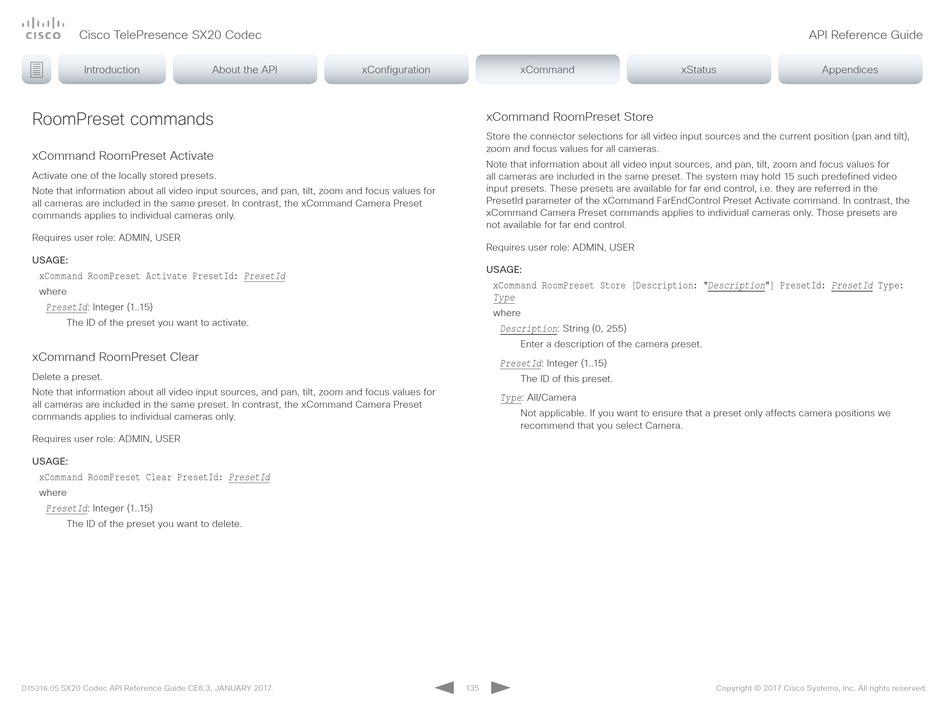

RoomPreset commands

xCommand RoomPreset Activate

Activate one of the locally stored presets.
Note that information about all video input sources, and pan, tilt, zoom and focus values for
all cameras are included in the same preset. In contrast, the xCommand Camera Preset
commands applies to individual cameras only.
Requires user role: ADMIN, USER
USAGE:
xCommand RoomPreset Activate PresetId:
where
: Integer (1..15)
PresetId
The ID of the preset you want to activate.

xCommand RoomPreset Clear

Delete a preset.
Note that information about all video input sources, and pan, tilt, zoom and focus values for
all cameras are included in the same preset. In contrast, the xCommand Camera Preset
commands applies to individual cameras only.
Requires user role: ADMIN, USER
USAGE:
xCommand RoomPreset Clear PresetId:
where
: Integer (1..15)
PresetId
The ID of the preset you want to delete.
SX20 Codec API Reference Guide CE8.3, JANUARY 2017.
D15316.05
About the API xConfiguration
PresetId
PresetId
xCommand xCommand

xCommand RoomPreset Store

Store the connector selections for all video input sources and the current position (pan and tilt),
zoom and focus values for all cameras.
Note that information about all video input sources, and pan, tilt, zoom and focus values for
all cameras are included in the same preset. The system may hold 15 such predefined video
input presets. These presets are available for far end control, i.e. they are referred in the
PresetId parameter of the xCommand FarEndControl Preset Activate command. In contrast, the
xCommand Camera Preset commands applies to individual cameras only. Those presets are
not available for far end control.
Requires user role: ADMIN, USER
USAGE:
xCommand RoomPreset Store [Description: "Description"] PresetId:
Type
where
: String (0, 255)
Description
Enter a description of the camera preset.
: Integer (1..15)
PresetId
The ID of this preset.
: All/Camera
Type
Not applicable. If you want to ensure that a preset only affects camera positions we
recommend that you select Camera.
