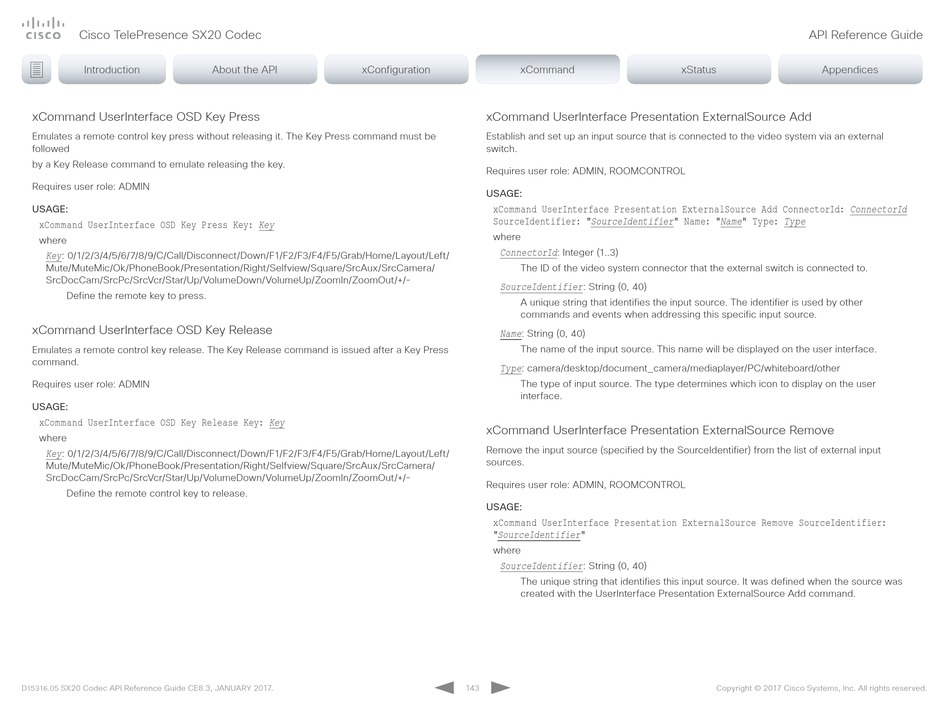

xCommand UserInterface OSD Key Press

Emulates a remote control key press without releasing it. The Key Press command must be
followed
by a Key Release command to emulate releasing the key.
Requires user role: ADMIN
USAGE:
xCommand UserInterface OSD Key Press Key:
where
: 0/1/2/3/4/5/6/7/8/9/C/Call/Disconnect/Down/F1/F2/F3/F4/F5/Grab/Home/Layout/Left/
Key
Mute/MuteMic/Ok/PhoneBook/Presentation/Right/Selfview/Square/SrcAux/SrcCamera/
SrcDocCam/SrcPc/SrcVcr/Star/Up/VolumeDown/VolumeUp/ZoomIn/ZoomOut/+/-
Define the remote key to press.

xCommand UserInterface OSD Key Release

Emulates a remote control key release. The Key Release command is issued after a Key Press
command.
Requires user role: ADMIN
USAGE:
xCommand UserInterface OSD Key Release Key:
where
: 0/1/2/3/4/5/6/7/8/9/C/Call/Disconnect/Down/F1/F2/F3/F4/F5/Grab/Home/Layout/Left/
Key
Mute/MuteMic/Ok/PhoneBook/Presentation/Right/Selfview/Square/SrcAux/SrcCamera/
SrcDocCam/SrcPc/SrcVcr/Star/Up/VolumeDown/VolumeUp/ZoomIn/ZoomOut/+/-
Define the remote control key to release.
SX20 Codec API Reference Guide CE8.3, JANUARY 2017.
D15316.05
About the API xConfiguration
Key
Key
xCommand xCommand

xCommand UserInterface Presentation ExternalSource Add

Establish and set up an input source that is connected to the video system via an external
switch.
Requires user role: ADMIN, ROOMCONTROL
USAGE:
xCommand UserInterface Presentation ExternalSource Add ConnectorId:
SourceIdentifier: "SourceIdentifier" Name: "Name" Type:
where
: Integer (1..3)
ConnectorId
The ID of the video system connector that the external switch is connected to.
: String (0, 40)
SourceIdentifier
A unique string that identifies the input source. The identifier is used by other
commands and events when addressing this specific input source.
: String (0, 40)
Name
The name of the input source. This name will be displayed on the user interface.
: camera/desktop/document_camera/mediaplayer/PC/whiteboard/other
Type
The type of input source. The type determines which icon to display on the user
interface.

xCommand UserInterface Presentation ExternalSource Remove

Remove the input source (specified by the SourceIdentifier) from the list of external input
sources.
Requires user role: ADMIN, ROOMCONTROL
USAGE:
xCommand UserInterface Presentation ExternalSource Remove SourceIdentifier:
"SourceIdentifier"
where
: String (0, 40)
SourceIdentifier
The unique string that identifies this input source. It was defined when the source was
created with the UserInterface Presentation ExternalSource Add command.
