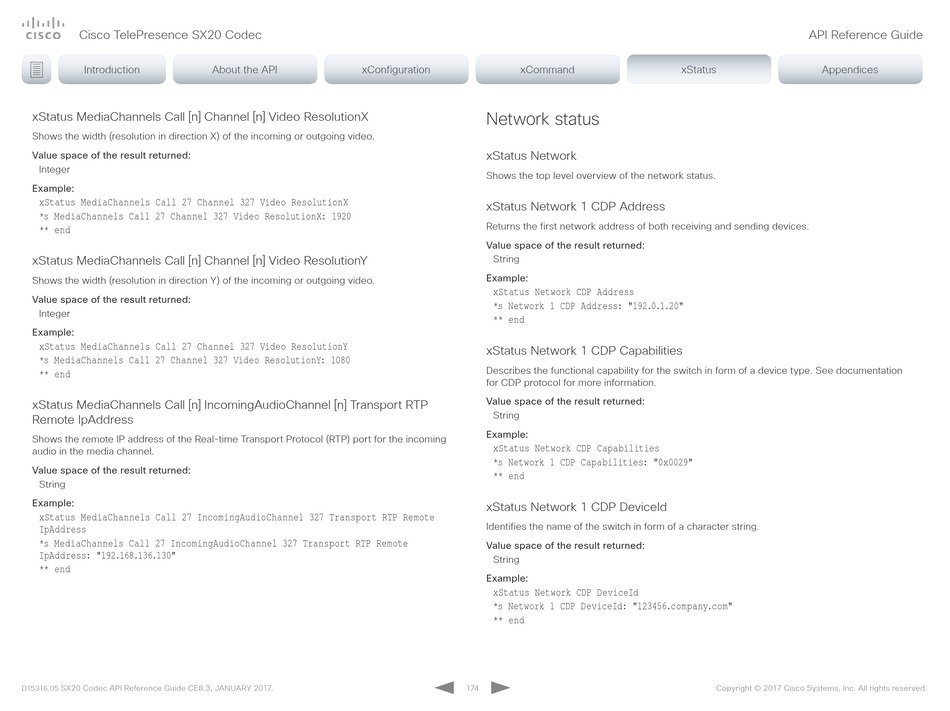

xStatus MediaChannels Call [n] Channel [n] Video ResolutionX

Shows the width (resolution in direction X) of the incoming or outgoing video.
Value space of the result returned:
Integer
Example:
xStatus MediaChannels Call 27 Channel 327 Video ResolutionX
*s MediaChannels Call 27 Channel 327 Video ResolutionX: 1920
** end

xStatus MediaChannels Call [n] Channel [n] Video ResolutionY

Shows the width (resolution in direction Y) of the incoming or outgoing video.
Value space of the result returned:
Integer
Example:
xStatus MediaChannels Call 27 Channel 327 Video ResolutionY
*s MediaChannels Call 27 Channel 327 Video ResolutionY: 1080
** end
xStatus MediaChannels Call [n] IncomingAudioChannel [n] Transport RTP
Remote IpAddress
Shows the remote IP address of the Real-time Transport Protocol (RTP) port for the incoming
audio in the media channel.
Value space of the result returned:
String
Example:
xStatus MediaChannels Call 27 IncomingAudioChannel 327 Transport RTP Remote
IpAddress
*s MediaChannels Call 27 IncomingAudioChannel 327 Transport RTP Remote
IpAddress: "192.168.136.130"
** end
SX20 Codec API Reference Guide CE8.3, JANUARY 2017.
D15316.05
About the API xConfiguration xCommand

Network status

xStatus Network

Shows the top level overview of the network status.

xStatus Network 1 CDP Address

Returns the first network address of both receiving and sending devices.
Value space of the result returned:
String
Example:
xStatus Network CDP Address
*s Network 1 CDP Address: "192.0.1.20"
** end

xStatus Network 1 CDP Capabilities

Describes the functional capability for the switch in form of a device type. See documentation
for CDP protocol for more information.
Value space of the result returned:
String
Example:
xStatus Network CDP Capabilities
*s Network 1 CDP Capabilities: "0x0029"
** end

xStatus Network 1 CDP DeviceId

Identifies the name of the switch in form of a character string.
Value space of the result returned:
String
Example:
xStatus Network CDP DeviceId
*s Network 1 CDP DeviceId: "123456.company.com"
** end
