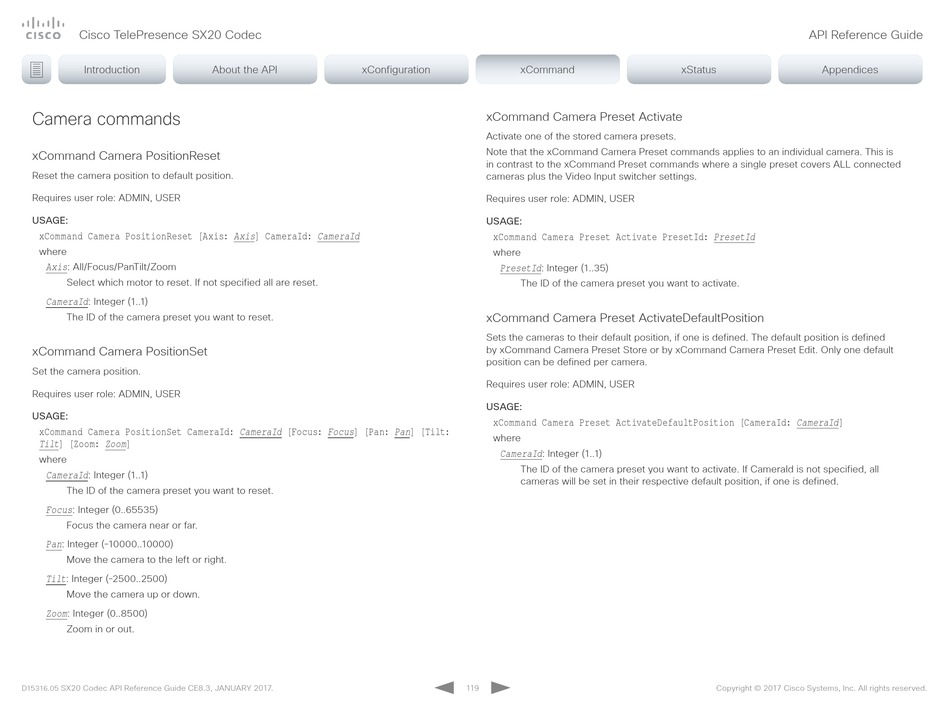

Camera commands

xCommand Camera PositionReset

Reset the camera position to default position.
Requires user role: ADMIN, USER
USAGE:
xCommand Camera PositionReset [Axis: Axis] CameraId:
where
: All/Focus/PanTilt/Zoom
Axis
Select which motor to reset. If not specified all are reset.
: Integer (1..1)
CameraId
The ID of the camera preset you want to reset.

xCommand Camera PositionSet

Set the camera position.
Requires user role: ADMIN, USER
USAGE:
xCommand Camera PositionSet CameraId:
Tilt] [Zoom: Zoom]
where
: Integer (1..1)
CameraId
The ID of the camera preset you want to reset.
: Integer (0..65535)
Focus
Focus the camera near or far.
: Integer (-10000..10000)
Pan
Move the camera to the left or right.
: Integer (-2500..2500)
Tilt
Move the camera up or down.
: Integer (0..8500)
Zoom
Zoom in or out.
SX20 Codec API Reference Guide CE8.3, JANUARY 2017.
D15316.05
About the API xConfiguration
CameraId
CameraId [Focus: Focus] [Pan: Pan] [Tilt:
xCommand xCommand

xCommand Camera Preset Activate

Activate one of the stored camera presets.
Note that the xCommand Camera Preset commands applies to an individual camera. This is
in contrast to the xCommand Preset commands where a single preset covers ALL connected
cameras plus the Video Input switcher settings.
Requires user role: ADMIN, USER
USAGE:
xCommand Camera Preset Activate PresetId:
where
: Integer (1..35)
PresetId
The ID of the camera preset you want to activate.

xCommand Camera Preset ActivateDefaultPosition

Sets the cameras to their default position, if one is defined. The default position is defined
by xCommand Camera Preset Store or by xCommand Camera Preset Edit. Only one default
position can be defined per camera.
Requires user role: ADMIN, USER
USAGE:
xCommand Camera Preset ActivateDefaultPosition [CameraId: CameraId]
where
: Integer (1..1)
CameraId
The ID of the camera preset you want to activate. If CameraId is not specified, all
cameras will be set in their respective default position, if one is defined.
119
