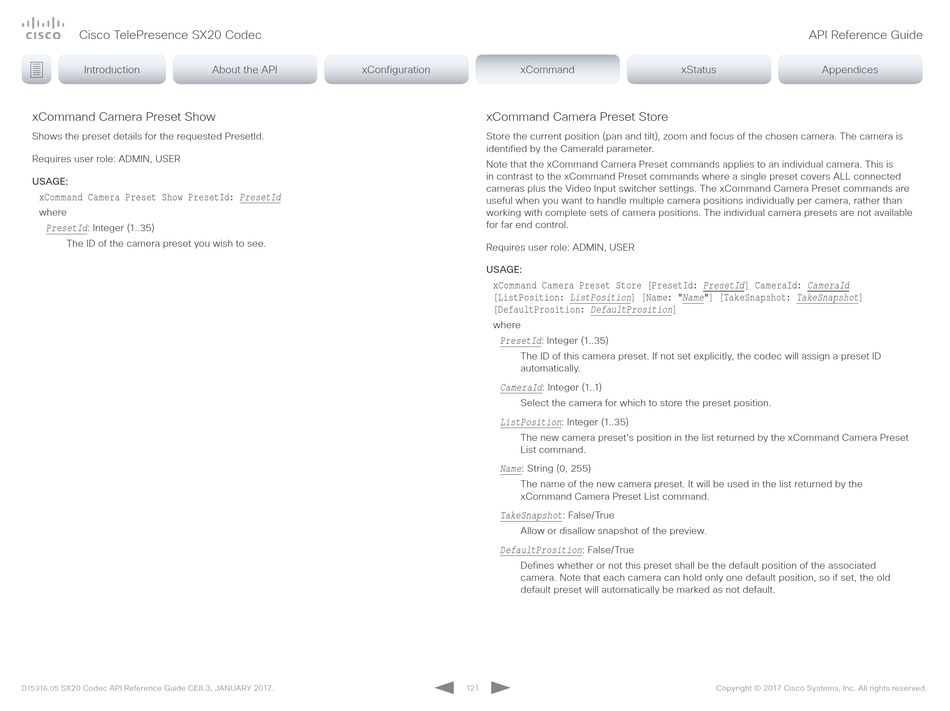

xCommand Camera Preset Show

Shows the preset details for the requested PresetId.
Requires user role: ADMIN, USER
USAGE:
xCommand Camera Preset Show PresetId:
where
: Integer (1..35)
PresetId
The ID of the camera preset you wish to see.
SX20 Codec API Reference Guide CE8.3, JANUARY 2017.
D15316.05
About the API xConfiguration
PresetId
xCommand xCommand

xCommand Camera Preset Store

Store the current position (pan and tilt), zoom and focus of the chosen camera. The camera is
identified by the CameraId parameter.
Note that the xCommand Camera Preset commands applies to an individual camera. This is
in contrast to the xCommand Preset commands where a single preset covers ALL connected
cameras plus the Video Input switcher settings. The xCommand Camera Preset commands are
useful when you want to handle multiple camera positions individually per camera, rather than
working with complete sets of camera positions. The individual camera presets are not available
for far end control.
Requires user role: ADMIN, USER
USAGE:
xCommand Camera Preset Store [PresetId: PresetId] CameraId:
[ListPosition: ListPosition] [Name: "Name"] [TakeSnapshot: TakeSnapshot]
[DefaultProsition: DefaultProsition]
where
: Integer (1..35)
PresetId
The ID of this camera preset. If not set explicitly, the codec will assign a preset ID
automatically.
: Integer (1..1)
CameraId
Select the camera for which to store the preset position.
: Integer (1..35)
ListPosition
The new camera preset's position in the list returned by the xCommand Camera Preset
List command.
: String (0, 255)
Name
The name of the new camera preset. It will be used in the list returned by the
xCommand Camera Preset List command.
: False/True
TakeSnapshot
Allow or disallow snapshot of the preview.
: False/True
DefaultProsition
Defines whether or not this preset shall be the default position of the associated
camera. Note that each camera can hold only one default position, so if set, the old
default preset will automatically be marked as not default.
