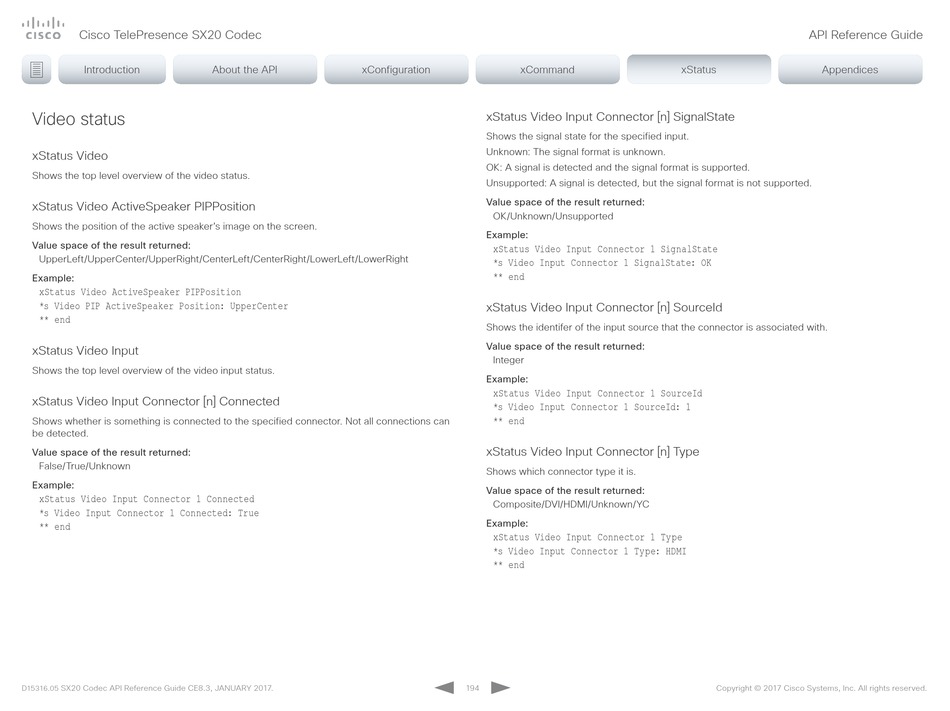

Video status

xStatus Video

Shows the top level overview of the video status.

xStatus Video ActiveSpeaker PIPPosition

Shows the position of the active speaker's image on the screen.
Value space of the result returned:
UpperLeft/UpperCenter/UpperRight/CenterLeft/CenterRight/LowerLeft/LowerRight
Example:
xStatus Video ActiveSpeaker PIPPosition
*s Video PIP ActiveSpeaker Position: UpperCenter
** end

xStatus Video Input

Shows the top level overview of the video input status.

xStatus Video Input Connector [n] Connected

Shows whether is something is connected to the specified connector. Not all connections can
be detected.
Value space of the result returned:
False/True/Unknown
Example:
xStatus Video Input Connector 1 Connected
*s Video Input Connector 1 Connected: True
** end
SX20 Codec API Reference Guide CE8.3, JANUARY 2017.
D15316.05
About the API xConfiguration xCommand

xStatus Video Input Connector [n] SignalState

Shows the signal state for the specified input.
Unknown: The signal format is unknown.
OK: A signal is detected and the signal format is supported.
Unsupported: A signal is detected, but the signal format is not supported.
Value space of the result returned:
OK/Unknown/Unsupported
Example:
xStatus Video Input Connector 1 SignalState
*s Video Input Connector 1 SignalState: OK
** end

xStatus Video Input Connector [n] SourceId

Shows the identifer of the input source that the connector is associated with.
Value space of the result returned:
Integer
Example:
xStatus Video Input Connector 1 SourceId
*s Video Input Connector 1 SourceId: 1
** end

xStatus Video Input Connector [n] Type

Shows which connector type it is.
Value space of the result returned:
Composite/DVI/HDMI/Unknown/YC
Example:
xStatus Video Input Connector 1 Type
*s Video Input Connector 1 Type: HDMI
** end
