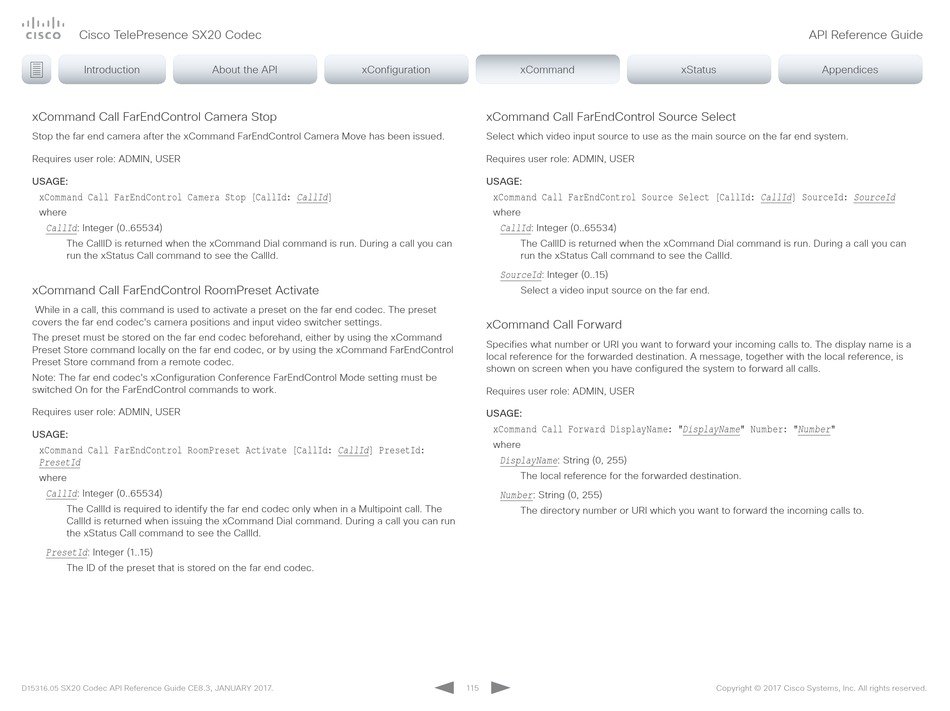

xCommand Call FarEndControl Camera Stop

Stop the far end camera after the xCommand FarEndControl Camera Move has been issued.
Requires user role: ADMIN, USER
USAGE:
xCommand Call FarEndControl Camera Stop [CallId: CallId]
where
: Integer (0..65534)
CallId
The CallID is returned when the xCommand Dial command is run. During a call you can
run the xStatus Call command to see the CallId.

xCommand Call FarEndControl RoomPreset Activate

While in a call, this command is used to activate a preset on the far end codec. The preset
covers the far end codec's camera positions and input video switcher settings.
The preset must be stored on the far end codec beforehand, either by using the xCommand
Preset Store command locally on the far end codec, or by using the xCommand FarEndControl
Preset Store command from a remote codec.
Note: The far end codec's xConfiguration Conference FarEndControl Mode setting must be
switched On for the FarEndControl commands to work.
Requires user role: ADMIN, USER
USAGE:
xCommand Call FarEndControl RoomPreset Activate [CallId: CallId] PresetId:
PresetId
where
: Integer (0..65534)
CallId
The CallId is required to identify the far end codec only when in a Multipoint call. The
CallId is returned when issuing the xCommand Dial command. During a call you can run
the xStatus Call command to see the CallId.
: Integer (1..15)
PresetId
The ID of the preset that is stored on the far end codec.
SX20 Codec API Reference Guide CE8.3, JANUARY 2017.
D15316.05
About the API xConfiguration xCommand xCommand

xCommand Call FarEndControl Source Select

Select which video input source to use as the main source on the far end system.
Requires user role: ADMIN, USER
USAGE:
xCommand Call FarEndControl Source Select [CallId: CallId] SourceId:
where
: Integer (0..65534)
CallId
The CallID is returned when the xCommand Dial command is run. During a call you can
run the xStatus Call command to see the CallId.
: Integer (0..15)
SourceId
Select a video input source on the far end.

xCommand Call Forward

Specifies what number or URI you want to forward your incoming calls to. The display name is a
local reference for the forwarded destination. A message, together with the local reference, is
shown on screen when you have configured the system to forward all calls.
Requires user role: ADMIN, USER
USAGE:
xCommand Call Forward DisplayName: "DisplayName" Number: "Number"
where
: String (0, 255)
DisplayName
The local reference for the forwarded destination.
: String (0, 255)
Number
The directory number or URI which you want to forward the incoming calls to.
