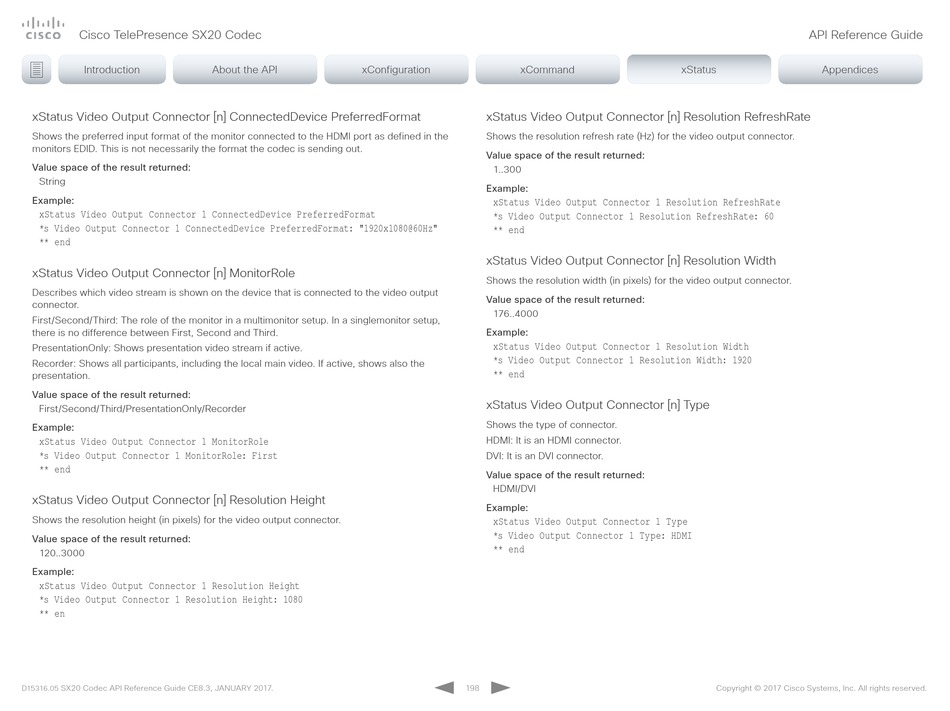

xStatus Video Output Connector [n] ConnectedDevice PreferredFormat

Shows the preferred input format of the monitor connected to the HDMI port as defined in the
monitors EDID. This is not necessarily the format the codec is sending out.
Value space of the result returned:
String
Example:
xStatus Video Output Connector 1 ConnectedDevice PreferredFormat
*s Video Output Connector 1 ConnectedDevice PreferredFormat: "1920x1080@60Hz"
** end

xStatus Video Output Connector [n] MonitorRole

Describes which video stream is shown on the device that is connected to the video output
connector.
First/Second/Third: The role of the monitor in a multimonitor setup. In a singlemonitor setup,
there is no difference between First, Second and Third.
PresentationOnly: Shows presentation video stream if active.
Recorder: Shows all participants, including the local main video. If active, shows also the
presentation.
Value space of the result returned:
First/Second/Third/PresentationOnly/Recorder
Example:
xStatus Video Output Connector 1 MonitorRole
*s Video Output Connector 1 MonitorRole: First
** end

xStatus Video Output Connector [n] Resolution Height

Shows the resolution height (in pixels) for the video output connector.
Value space of the result returned:
120..3000
Example:
xStatus Video Output Connector 1 Resolution Height
*s Video Output Connector 1 Resolution Height: 1080
** en
SX20 Codec API Reference Guide CE8.3, JANUARY 2017.
D15316.05
About the API xConfiguration xCommand

xStatus Video Output Connector [n] Resolution RefreshRate

Shows the resolution refresh rate (Hz) for the video output connector.
Value space of the result returned:
1..300
Example:
xStatus Video Output Connector 1 Resolution RefreshRate
*s Video Output Connector 1 Resolution RefreshRate: 60
** end

xStatus Video Output Connector [n] Resolution Width

Shows the resolution width (in pixels) for the video output connector.
Value space of the result returned:
176..4000
Example:
xStatus Video Output Connector 1 Resolution Width
*s Video Output Connector 1 Resolution Width: 1920
** end

xStatus Video Output Connector [n] Type

Shows the type of connector.
HDMI: It is an HDMI connector.
DVI: It is an DVI connector.
Value space of the result returned:
HDMI/DVI
Example:
xStatus Video Output Connector 1 Type
*s Video Output Connector 1 Type: HDMI
** end
