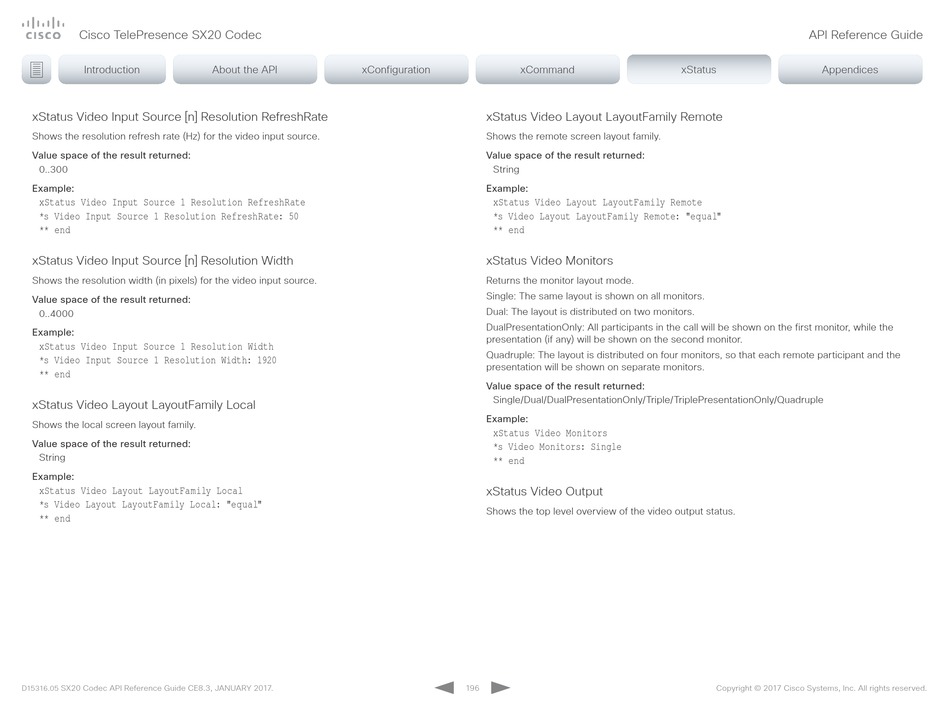

xStatus Video Input Source [n] Resolution RefreshRate

Shows the resolution refresh rate (Hz) for the video input source.
Value space of the result returned:
0..300
Example:
xStatus Video Input Source 1 Resolution RefreshRate
*s Video Input Source 1 Resolution RefreshRate: 50
** end

xStatus Video Input Source [n] Resolution Width

Shows the resolution width (in pixels) for the video input source.
Value space of the result returned:
0..4000
Example:
xStatus Video Input Source 1 Resolution Width
*s Video Input Source 1 Resolution Width: 1920
** end

xStatus Video Layout LayoutFamily Local

Shows the local screen layout family.
Value space of the result returned:
String
Example:
xStatus Video Layout LayoutFamily Local
*s Video Layout LayoutFamily Local: "equal"
** end
SX20 Codec API Reference Guide CE8.3, JANUARY 2017.
D15316.05
About the API xConfiguration xCommand

xStatus Video Layout LayoutFamily Remote

Shows the remote screen layout family.
Value space of the result returned:
String
Example:
xStatus Video Layout LayoutFamily Remote
*s Video Layout LayoutFamily Remote: "equal"
** end

xStatus Video Monitors

Returns the monitor layout mode.
Single: The same layout is shown on all monitors.
Dual: The layout is distributed on two monitors.
DualPresentationOnly: All participants in the call will be shown on the first monitor, while the
presentation (if any) will be shown on the second monitor.
Quadruple: The layout is distributed on four monitors, so that each remote participant and the
presentation will be shown on separate monitors.
Value space of the result returned:
Single/Dual/DualPresentationOnly/Triple/TriplePresentationOnly/Quadruple
Example:
xStatus Video Monitors
*s Video Monitors: Single
** end

xStatus Video Output

Shows the top level overview of the video output status.
