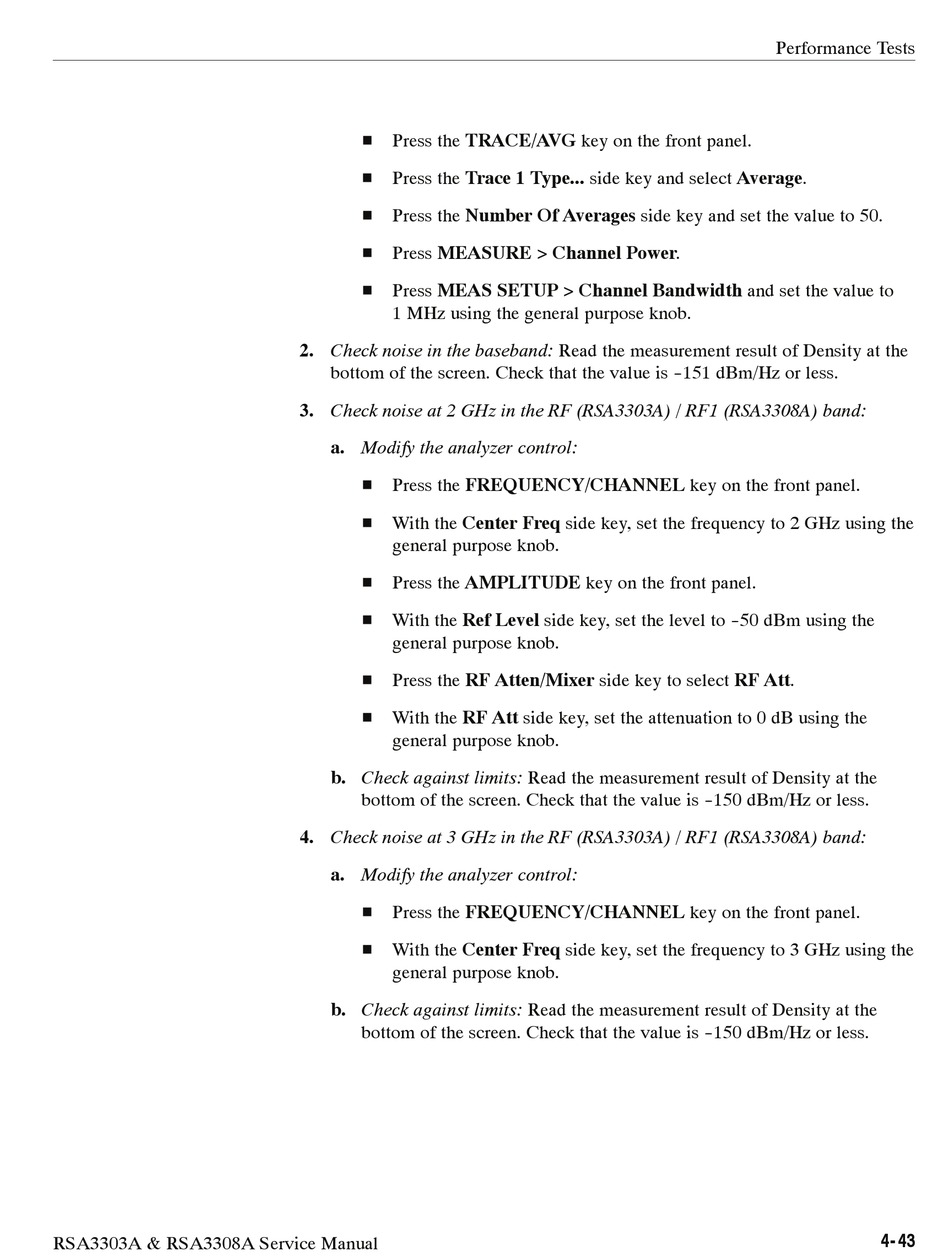

RSA3303A & RSA3308A Service Manual
H Press the TRACE/AVG key on the front panel.
H Press the Trace 1 Type... side key and select Average.
H Press the Number Of Averages side key and set the value to 50.
H Press MEASURE > Channel Power.
H Press MEAS SETUP > Channel Bandwidth and set the value to
1 MHz using the general purpose knob.
2. Check noise in the baseband: Read the measurement result of Density at the
bottom of the screen. Check that the value is - -151 dBm/Hz or less.
3. Check noise at 2 GHz in the RF (RSA3303A) / RF1 (RSA3308A) band:
a. Modify the analyzer control:
H Press the FREQUENCY/CHANNEL key on the front panel.
H With the Center Freq side key, set the frequency to 2 GHz using the
general purpose knob.
H Press the AMPLITUDE key on the front panel.
H With the Ref Level side key, set the level to - -50 dBm using the
general purpose knob.
H Press the RF Atten/Mixer side key to select RF Att.
H With the RF Att side key, set the attenuation to 0 dB using the
general purpose knob.
b. Check against limits: Read the measurement result of Density at the
bottom of the screen. Check that the value is - -150 dBm/Hz or less.
4. Check noise at 3 GHz in the RF (RSA3303A) / RF1 (RSA3308A) band:
a. Modify the analyzer control:
H Press the FREQUENCY/CHANNEL key on the front panel.
H With the Center Freq side key, set the frequency to 3 GHz using the
general purpose knob.
b. Check against limits: Read the measurement result of Density at the
bottom of the screen. Check that the value is - -150 dBm/Hz or less.
Performance Tests
4- 43
