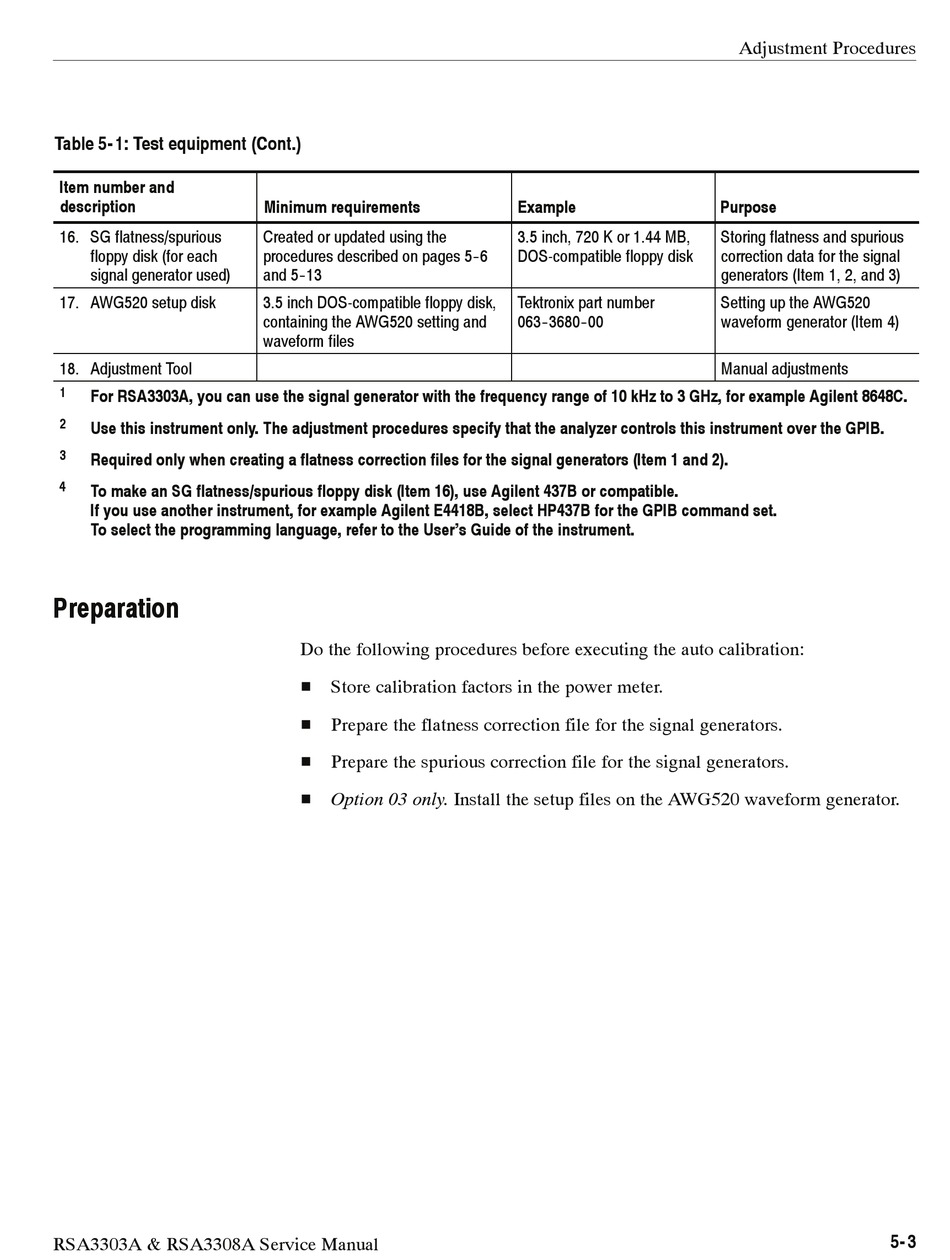

Table 5- 1: Test equipment (Cont.)
Item number and
description
16. SG flatness/spurious
floppy disk (for each
signal generator used)
17. AWG520 setup disk
18. Adjustment Tool
1
For RSA3303A, you can use the signal generator with the frequency range of 10 kHz to 3 GHz, for example Agilent 8648C.
2
Use this instrument only. The adjustment procedures specify that the analyzer controls this instrument over the GPIB.
3
Required only when creating a flatness correction files for the signal generators (Item 1 and 2).
4
To make an SG flatness/spurious floppy disk (Item 16), use Agilent 437B or compatible.
If you use another instrument, for example Agilent E4418B, select HP437B for the GPIB command set.
To select the programming language, refer to the User's Guide of the instrument.
Preparation
RSA3303A & RSA3308A Service Manual
Minimum requirements
Created or updated using the
procedures described on pages 5- - 6
and 5- - 13
3.5 inch DOS-compatible floppy disk,
containing the AWG520 setting and
waveform files
Do the following procedures before executing the auto calibration:
H Store calibration factors in the power meter.
H Prepare the flatness correction file for the signal generators.
H Prepare the spurious correction file for the signal generators.
H Option 03 only. Install the setup files on the AWG520 waveform generator.
Example
3.5 inch, 720 K or 1.44 MB,
DOS-compatible floppy disk
Tektronix part number
063- - 3680- - 00
Adjustment Procedures
Purpose
Storing flatness and spurious
correction data for the signal
generators (Item 1, 2, and 3)
Setting up the AWG520
waveform generator (Item 4)
Manual adjustments
5- 3
