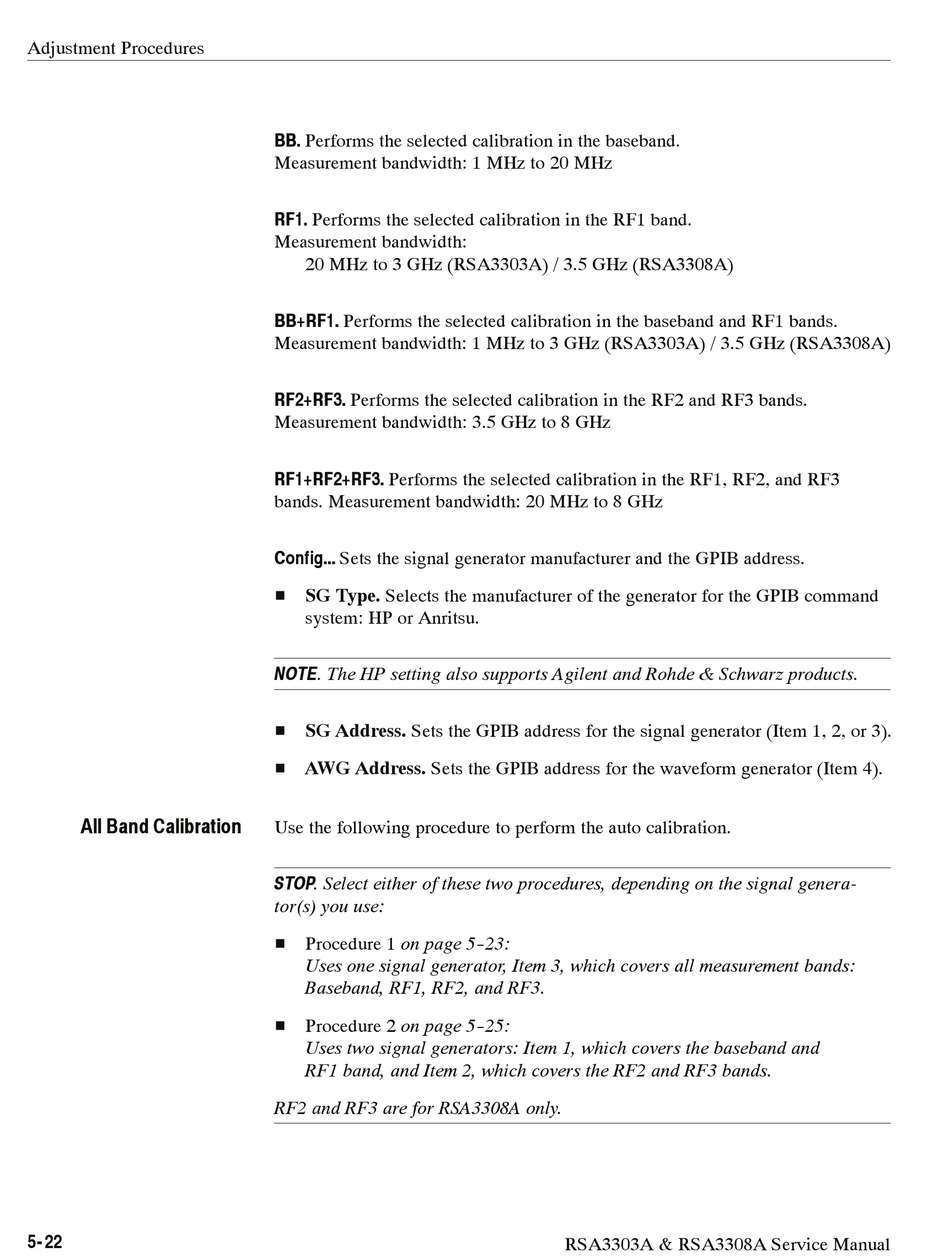

Tektronix RSA3303A Service Manual page 122

Adjustment Procedures
All Band Calibration
5- 22
BB. Performs the selected calibration in the baseband.
Measurement bandwidth: 1 MHz to 20 MHz
RF1. Performs the selected calibration in the RF1 band.
Measurement bandwidth:
20 MHz to 3 GHz (RSA3303A) / 3.5 GHz (RSA3308A)
BB+RF1. Performs the selected calibration in the baseband and RF1 bands.
Measurement bandwidth: 1 MHz to 3 GHz (RSA3303A) / 3.5 GHz (RSA3308A)
RF2+RF3. Performs the selected calibration in the RF2 and RF3 bands.
Measurement bandwidth: 3.5 GHz to 8 GHz
RF1+RF2+RF3. Performs the selected calibration in the RF1, RF2, and RF3
bands. Measurement bandwidth: 20 MHz to 8 GHz
Config... Sets the signal generator manufacturer and the GPIB address.
H SG Type. Selects the manufacturer of the generator for the GPIB command
system: HP or Anritsu.
NOTE. The HP setting also supports Agilent and Rohde & Schwarz products.
H SG Address. Sets the GPIB address for the signal generator (Item 1, 2, or 3).
H AWG Address. Sets the GPIB address for the waveform generator (Item 4).
Use the following procedure to perform the auto calibration.
STOP. Select either of these two procedures, depending on the signal genera-
tor(s) you use:
H Procedure 1 on page 5- -23:
Uses one signal generator, Item 3, which covers all measurement bands:
Baseband, RF1, RF2, and RF3.
H Procedure 2 on page 5- -25:
Uses two signal generators: Item 1, which covers the baseband and
RF1 band, and Item 2, which covers the RF2 and RF3 bands.
RF2 and RF3 are for RSA3308A only.
