Performance Tests
Displayed Average Noise
Level Test
4- 42
Check that the displayed average noise level is within the specified range for the
analyzer.
Equipment None
Required
Prerequisites Refer to page 4- - 10.
RSA3303A/RSA3308A

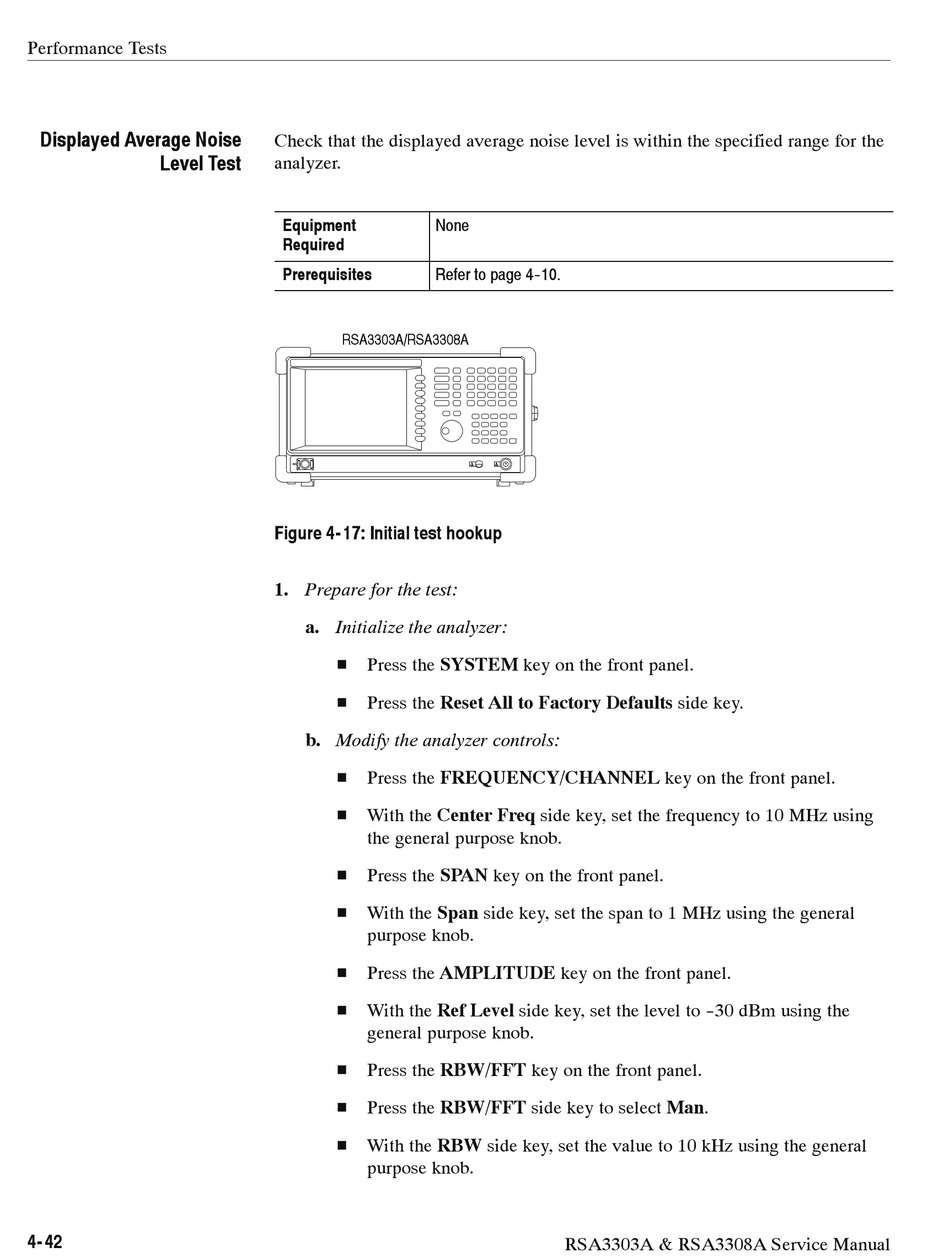

Figure 4- 17: Initial test hookup

1. Prepare for the test:
a. Initialize the analyzer:
H Press the SYSTEM key on the front panel.
H Press the Reset All to Factory Defaults side key.
b. Modify the analyzer controls:
H Press the FREQUENCY/CHANNEL key on the front panel.
H With the Center Freq side key, set the frequency to 10 MHz using
the general purpose knob.
H Press the SPAN key on the front panel.
H With the Span side key, set the span to 1 MHz using the general
purpose knob.
H Press the AMPLITUDE key on the front panel.
H With the Ref Level side key, set the level to - -30 dBm using the
general purpose knob.
H Press the RBW/FFT key on the front panel.
H Press the RBW/FFT side key to select Man.
H With the RBW side key, set the value to 10 kHz using the general
purpose knob.
