Board Guide Bracket
RSA3303A & RSA3308A Service Manual
1. Assemble equipment and locate module to be removed:
a. You will need a #2 Phillips screwdriver (Items 1 and 3).
b. Locate the board guide bracket in the Chassis modules diagram,
Figure 6- -11, page 6- -21.
c. Remove the RF modules (Refer to the RF Modules procedure on
page 6- -28).
d. Remove all the daughter boards (Refer to the procedure Mother Board
and its Daughter Modules on page 6- -37).
2. Orient the analyzer: Set the analyzer so its bottom is down on the work
surface and its left side is facing you.

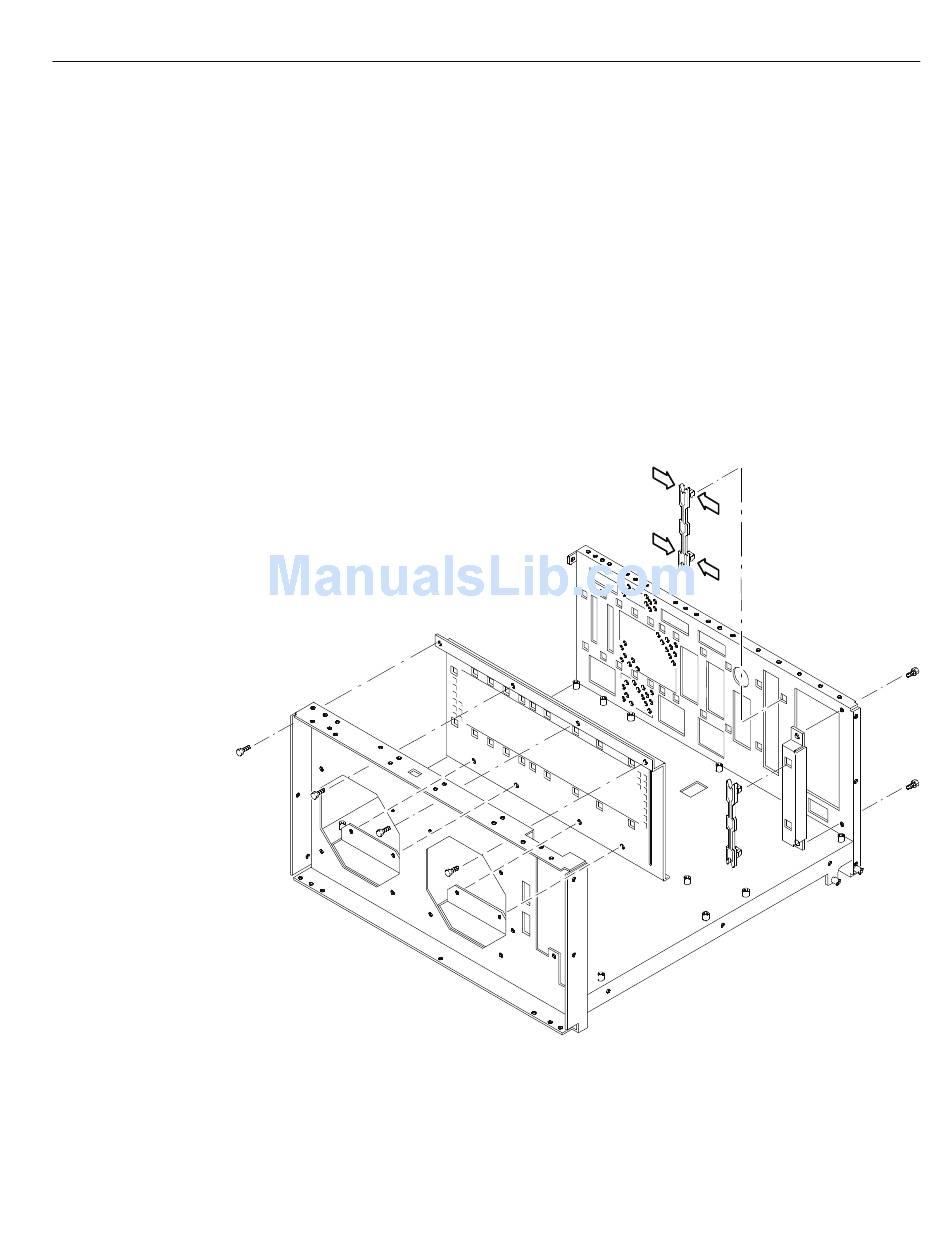

When removing the board guide,
press its catches at both sides before
Figure 6- 31: Board guide bracket removal
Removal and Installation Procedures
pulling it backward.
6- 65
