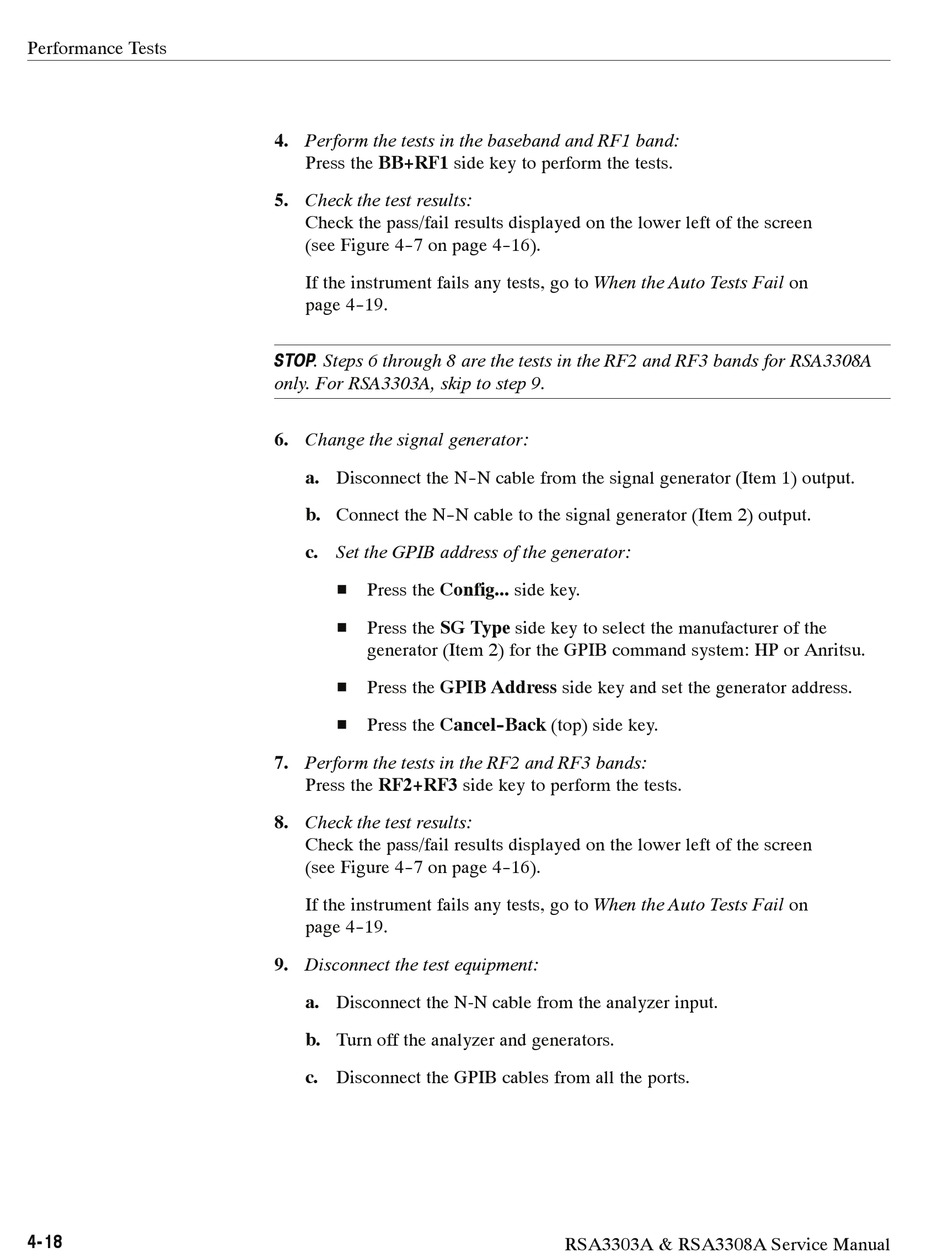

Performance Tests
4- 18
4. Perform the tests in the baseband and RF1 band:
Press the BB+RF1 side key to perform the tests.
5. Check the test results:
Check the pass/fail results displayed on the lower left of the screen
(see Figure 4- -7 on page 4- -16).
If the instrument fails any tests, go to When the Auto Tests Fail on
page 4- -19.
STOP. Steps 6 through 8 are the tests in the RF2 and RF3 bands for RSA3308A
only. For RSA3303A, skip to step 9.
6. Change the signal generator:
a. Disconnect the N- -N cable from the signal generator (Item 1) output.
b. Connect the N- -N cable to the signal generator (Item 2) output.
c. Set the GPIB address of the generator:
H Press the Config... side key.
H Press the SG Type side key to select the manufacturer of the
generator (Item 2) for the GPIB command system: HP or Anritsu.
H Press the GPIB Address side key and set the generator address.
H Press the Cancel- -Back (top) side key.
7. Perform the tests in the RF2 and RF3 bands:
Press the RF2+RF3 side key to perform the tests.
8. Check the test results:
Check the pass/fail results displayed on the lower left of the screen
(see Figure 4- -7 on page 4- -16).
If the instrument fails any tests, go to When the Auto Tests Fail on
page 4- -19.
9. Disconnect the test equipment:
a. Disconnect the N-N cable from the analyzer input.
b. Turn off the analyzer and generators.
c. Disconnect the GPIB cables from all the ports.
