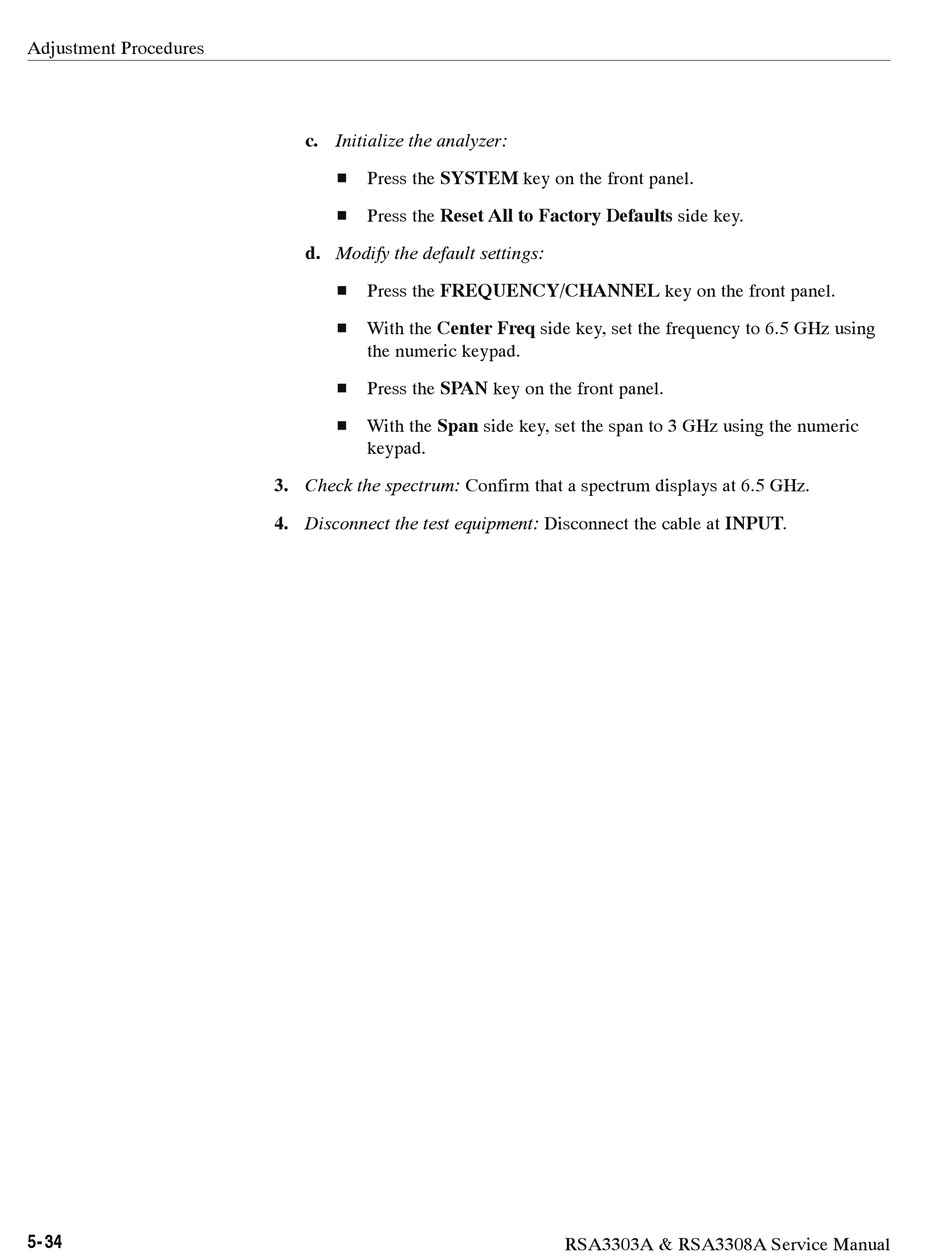

Adjustment Procedures
5- 34
c. Initialize the analyzer:
H Press the SYSTEM key on the front panel.
H Press the Reset All to Factory Defaults side key.
d. Modify the default settings:
H Press the FREQUENCY/CHANNEL key on the front panel.
H With the Center Freq side key, set the frequency to 6.5 GHz using
the numeric keypad.
H Press the SPAN key on the front panel.
H With the Span side key, set the span to 3 GHz using the numeric
keypad.
3. Check the spectrum: Confirm that a spectrum displays at 6.5 GHz.
4. Disconnect the test equipment: Disconnect the cable at INPUT.
RSA3303A & RSA3308A Service Manual
