Removal and Installation Procedures

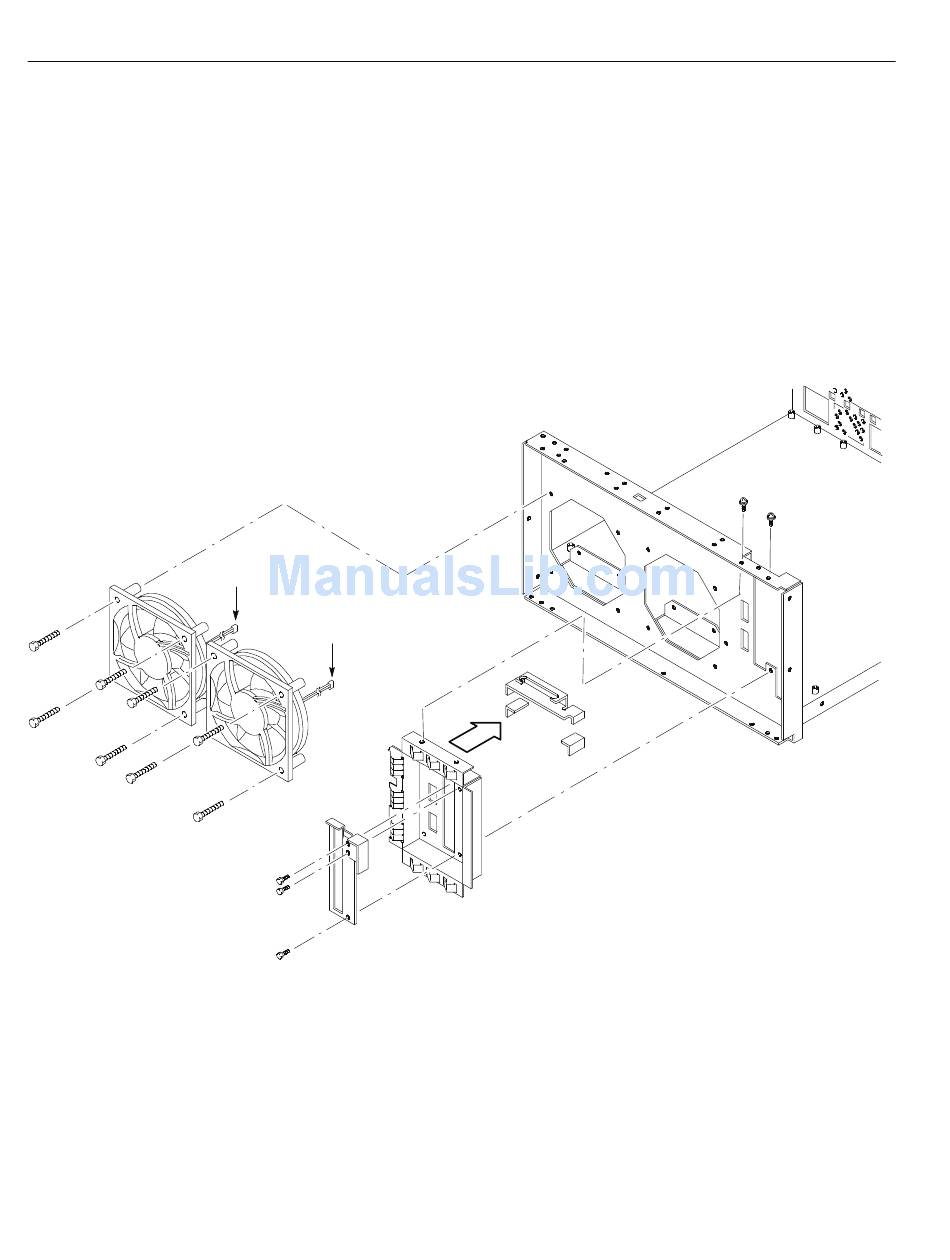

Figure 6- 30: Fan and side panel removal
6- 64
4. Remove the side panel assembly: See Figure 6- -30.
a. Remove the three screws securing the shield bracket through side panel
to the main chassis.
b. Remove the two screws securing the side panel to the main chassis.
Pull the side panel away.
c. Pull out the stopper bracket to complete the removal.
5. Reinstallation: Reverse steps 3 and 4 to reinstall the side panel assembly.
To J300 on A70
To J302 on A70
RSA3303A & RSA3308A Service Manual
