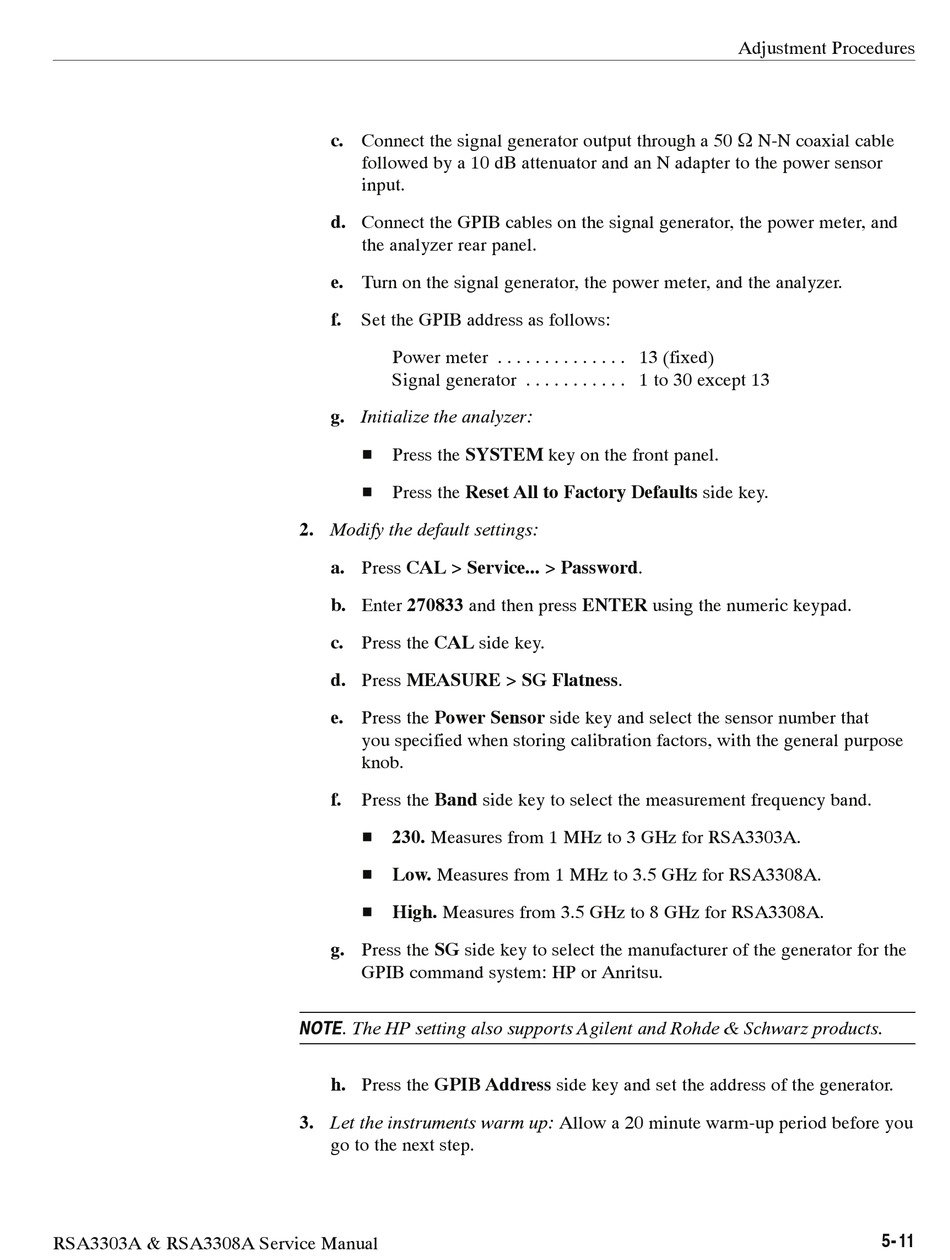

Tektronix RSA3303A Service Manual page 111

RSA3303A & RSA3308A Service Manual
c. Connect the signal generator output through a 50 Ω N-N coaxial cable
followed by a 10 dB attenuator and an N adapter to the power sensor
input.
d. Connect the GPIB cables on the signal generator, the power meter, and
the analyzer rear panel.
e. Turn on the signal generator, the power meter, and the analyzer.
f. Set the GPIB address as follows:
Power meter
Signal generator
g. Initialize the analyzer:
H Press the SYSTEM key on the front panel.
H Press the Reset All to Factory Defaults side key.
2. Modify the default settings:
a. Press CAL > Service... > Password.
b. Enter 270833 and then press ENTER using the numeric keypad.
c. Press the CAL side key.
d. Press MEASURE > SG Flatness.
e. Press the Power Sensor side key and select the sensor number that
you specified when storing calibration factors, with the general purpose
knob.
f. Press the Band side key to select the measurement frequency band.
H 230. Measures from 1 MHz to 3 GHz for RSA3303A.
H Low. Measures from 1 MHz to 3.5 GHz for RSA3308A.
H High. Measures from 3.5 GHz to 8 GHz for RSA3308A.
g. Press the SG side key to select the manufacturer of the generator for the
GPIB command system: HP or Anritsu.
NOTE. The HP setting also supports Agilent and Rohde & Schwarz products.
h. Press the GPIB Address side key and set the address of the generator.
3. Let the instruments warm up: Allow a 20 minute warm-up period before you
go to the next step.
. . . . . . . . . . . . . . 13 (fixed)
. . . . . . . . . . . 1 to 30 except 13
Adjustment Procedures
5- 11
