RSA3303A & RSA3308A Service Manual

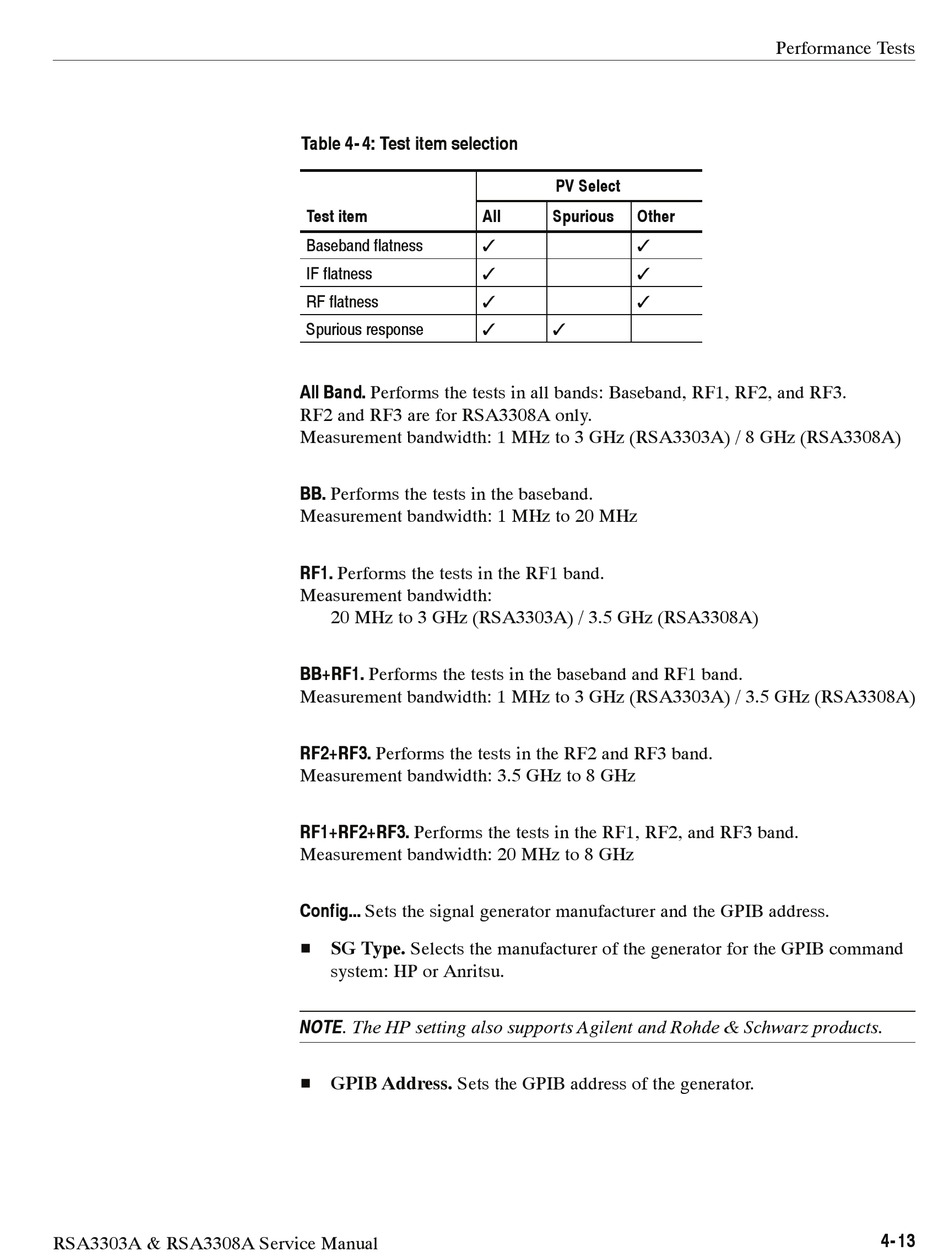

Table 4- 4: Test item selection

Test item
Baseband flatness
IF flatness
RF flatness
Spurious response
All Band. Performs the tests in all bands: Baseband, RF1, RF2, and RF3.
RF2 and RF3 are for RSA3308A only.
Measurement bandwidth: 1 MHz to 3 GHz (RSA3303A) / 8 GHz (RSA3308A)
BB. Performs the tests in the baseband.
Measurement bandwidth: 1 MHz to 20 MHz
RF1. Performs the tests in the RF1 band.
Measurement bandwidth:
20 MHz to 3 GHz (RSA3303A) / 3.5 GHz (RSA3308A)
BB+RF1. Performs the tests in the baseband and RF1 band.
Measurement bandwidth: 1 MHz to 3 GHz (RSA3303A) / 3.5 GHz (RSA3308A)
RF2+RF3. Performs the tests in the RF2 and RF3 band.
Measurement bandwidth: 3.5 GHz to 8 GHz
RF1+RF2+RF3. Performs the tests in the RF1, RF2, and RF3 band.
Measurement bandwidth: 20 MHz to 8 GHz
Config... Sets the signal generator manufacturer and the GPIB address.
H SG Type. Selects the manufacturer of the generator for the GPIB command
system: HP or Anritsu.
NOTE. The HP setting also supports Agilent and Rohde & Schwarz products.
H GPIB Address. Sets the GPIB address of the generator.
PV Select
All Spurious Other
✓ ✓
✓ ✓
✓ ✓
✓ ✓
Performance Tests
4- 13
