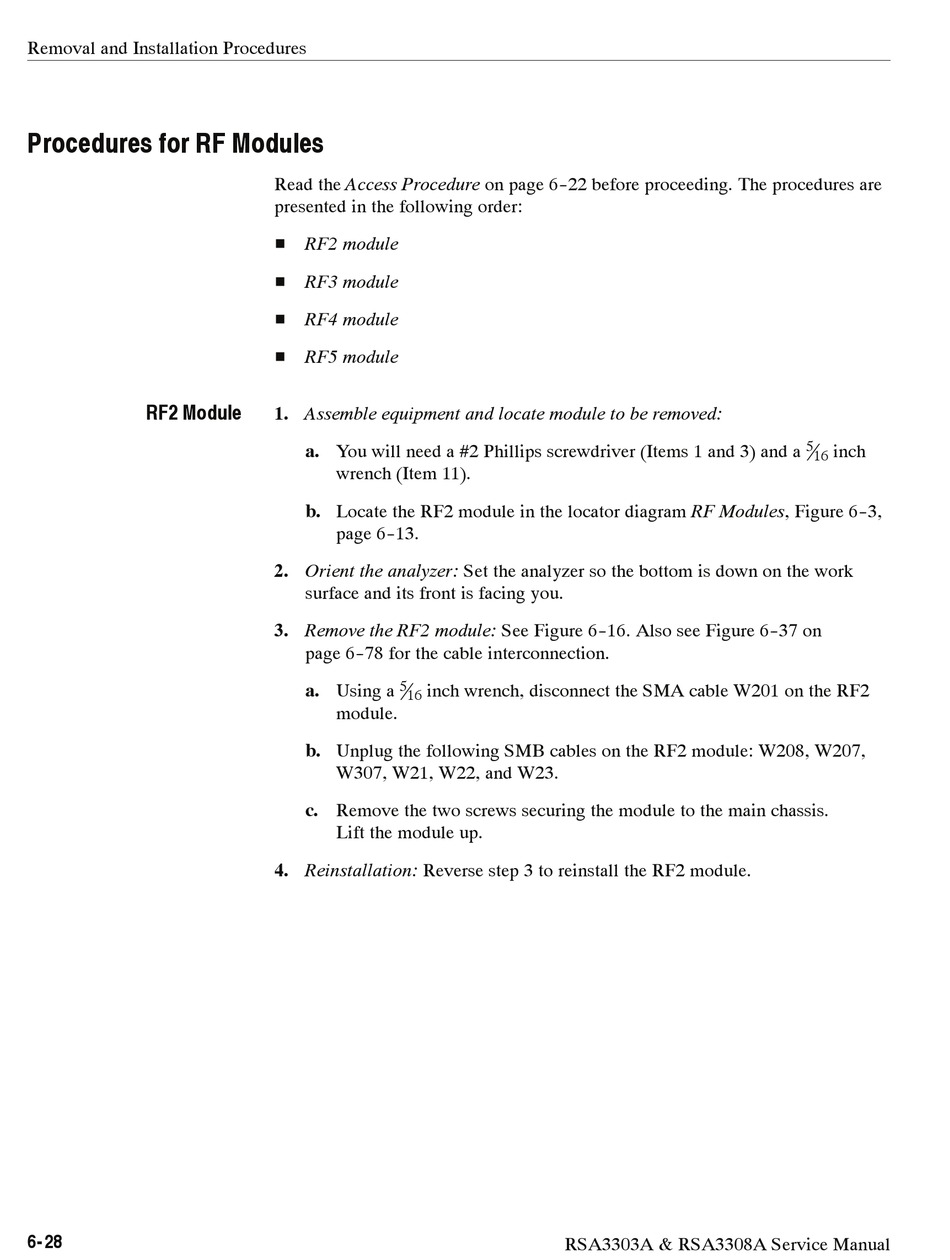

Removal and Installation Procedures
Procedures for RF Modules
RF2 Module
6- 28
Read the Access Procedure on page 6- -22 before proceeding. The procedures are
presented in the following order:
H RF2 module
H RF3 module
H RF4 module
H RF5 module
1. Assemble equipment and locate module to be removed:
a. You will need a #2 Phillips screwdriver (Items 1 and 3) and a
wrench (Item 11).
b. Locate the RF2 module in the locator diagram RF Modules, Figure 6- -3,
page 6- -13.
2. Orient the analyzer: Set the analyzer so the bottom is down on the work
surface and its front is facing you.
3. Remove the RF2 module: See Figure 6- -16. Also see Figure 6- -37 on
page 6- -78 for the cable interconnection.
5
a. Using a
inch wrench, disconnect the SMA cable W201 on the RF2
@
1 6
module.
b. Unplug the following SMB cables on the RF2 module: W208, W207,
W307, W21, W22, and W23.
c. Remove the two screws securing the module to the main chassis.
Lift the module up.
4. Reinstallation: Reverse step 3 to reinstall the RF2 module.
