Performance Tests
Procedure 1
4- 14
STOP. Select either of these two procedures, depending on the signal genera-
tor(s) you use:
H Procedure 1 below:
Uses one signal generator, Item 3, which covers all measurement bands:
Baseband, RF1, RF2, and RF3.
H Procedure 2 on page 4- -16:
Uses two signal generators: Item 1, which covers the baseband and
RF1 band, and Item 2, which covers the RF2 and RF3 bands.
RF2 and RF3 are for RSA3308A only.
Performs the auto tests using one signal generator (Item 3), which covers all
measurement bands: Baseband, RF1, RF2, and RF3 (RF2 and RF3 are for
RSA3308A only).
Equipment One signal generator (Item 3)
Required
One 50 Ω N-N coaxial cable (Item 10)
One 10 dB attenuator (Item 14)
One GPIB cable (Item 12)
One SG flatness/spurious floppy disk (Item 17)
Prerequisites Refer to page 4- - 10

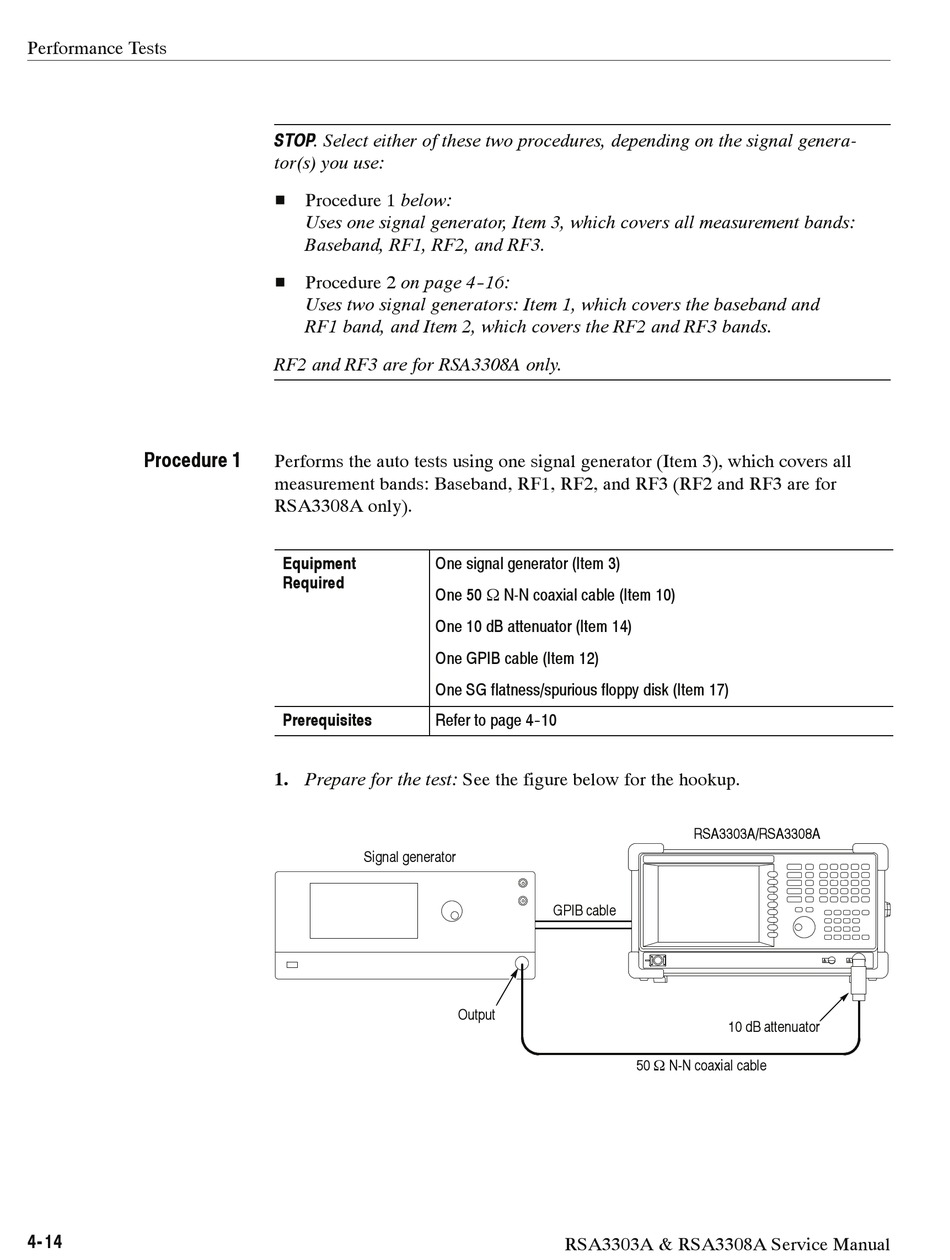

1. Prepare for the test: See the figure below for the hookup.
Signal generator
GPIB cable
Output
RSA3303A & RSA3308A Service Manual
RSA3303A/RSA3308A
10 dB attenuator
50 Ω N-N coaxial cable
