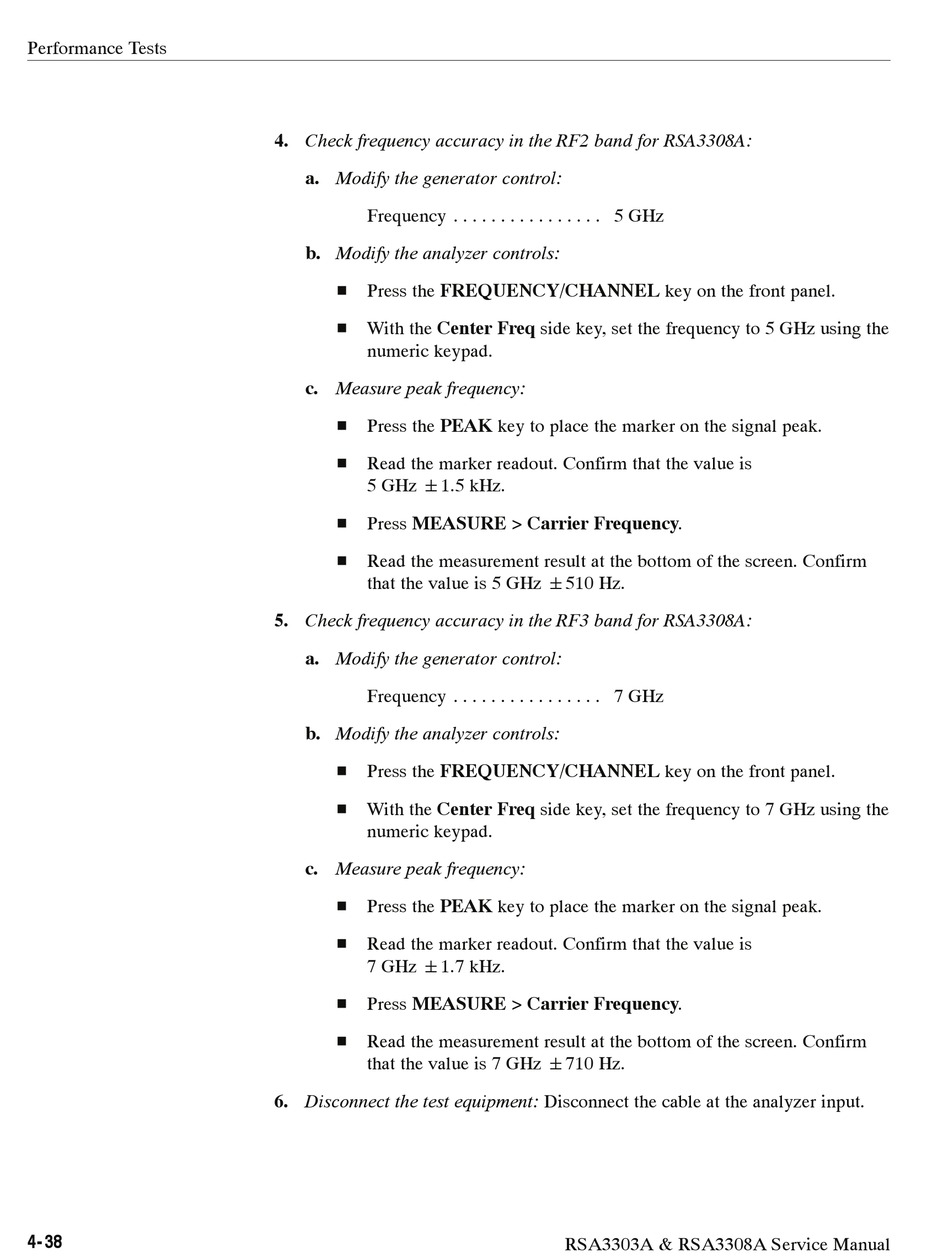

Tektronix RSA3303A Service Manual page 86

Performance Tests
4- 38
4. Check frequency accuracy in the RF2 band for RSA3308A:
a. Modify the generator control:
Frequency
b. Modify the analyzer controls:
H Press the FREQUENCY/CHANNEL key on the front panel.
H With the Center Freq side key, set the frequency to 5 GHz using the
numeric keypad.
c. Measure peak frequency:
H Press the PEAK key to place the marker on the signal peak.
H Read the marker readout. Confirm that the value is
5 GHz 1.5 kHz.
H Press MEASURE > Carrier Frequency.
H Read the measurement result at the bottom of the screen. Confirm
that the value is 5 GHz 510 Hz.
5. Check frequency accuracy in the RF3 band for RSA3308A:
a. Modify the generator control:
Frequency
b. Modify the analyzer controls:
H Press the FREQUENCY/CHANNEL key on the front panel.
H With the Center Freq side key, set the frequency to 7 GHz using the
numeric keypad.
c. Measure peak frequency:
H Press the PEAK key to place the marker on the signal peak.
H Read the marker readout. Confirm that the value is
7 GHz 1.7 kHz.
H Press MEASURE > Carrier Frequency.
H Read the measurement result at the bottom of the screen. Confirm
that the value is 7 GHz 710 Hz.
6. Disconnect the test equipment: Disconnect the cable at the analyzer input.
. . . . . . . . . . . . . . . . 5 GHz
. . . . . . . . . . . . . . . . 7 GHz
