  • Page 1 RSA306B Real-Time Spectrum Analyzer Installation and Safety Instructions *P071348300* 071-3483-00...
  • Page 3 RSA306B Real-Time Spectrum Analyzer Installation and Safety Instructions Register now! Click the following link to protect your product. ► www.tek.com/register www.tek.com 071-3483-00...
  • Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
  • Page 5 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
  • Page 7: Table Of Contents

    Preface ....................... Documentation ....................Introduction ......................Standard accessories................... Optional accessories ................... Service options ....................PC requirements ....................Installation......................Initial installation ....................Front-panel connections..................Compliance information ................... EMC compliance ....................Safety compliance .................... Environmental considerations ................RSA306B Installation and Safety Instructions...
  • Page 8: Important Safety Information

    Category II, III, or IV circuits. Do not operate without covers. Do not operate this product with covers or panels removed, or with the case open. Avoid exposed circuitry. Do not touch exposed connections and components when power is present. RSA306B Installation and Safety Instructions...
  • Page 9: Terms In This Manual

    Be sure your work area meets applicable ergonomic standards. Consult with an ergonomics professional to avoid stress injuries. Use only the Tektronix rackmount hardware specified for this product. Terms in this manual These terms may appear in this manual: WARNING.
  • Page 10: Symbols And Terms On The Product

    These terms may appear on the product: DANGER indicates an injury hazard immediately accessible as you read the marking. WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. RSA306B Installation and Safety Instructions...
  • Page 11: Preface

    The following table lists some of the documentation that is available for this product and shows where you can find it: in a printed manual, on the product flash drive, or on the Tektronix Web site at www.tek.com. Table i: Product documentation...
  • Page 12 Preface RSA306B Installation and Safety Instructions...
  • Page 13: Introduction

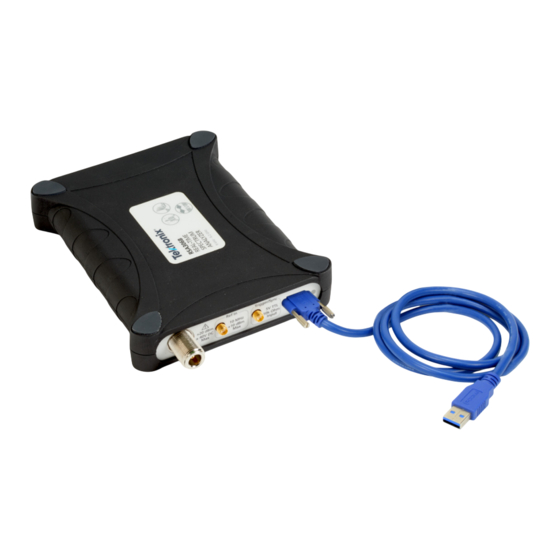

    Introduction The RSA306B is a portable, 40 MHz Real-Time Spectrum Analyzer that contains an acquisition system inside a small module. The user interface and display resides on a user-provided PC running SignalVu-PC software or a user-developed application. The host PC provides all power, control, and data signals over the USB 3.0 cable included with the instrument.
  • Page 14: Standard Accessories

    Cable, 50 Ω, BNC (m) 3 foot (91 cm) 012-0482-xx Cable, 50 Ω, straight Type-N (m) and angled Type-N 174-4977-xx (m) connector, 1.6 foot (50 cm) Cable, 50 Ω, Type-N (m) to Type-N (m) connector, 3 174-5002-xx foot (91 cm) RSA306B Installation and Safety Instructions...
  • Page 15: Service Options

    USB 3.0 port 64-bit Windows 7, 8, or 10 OS For full performance of the real time features of the RSA306B, an Intel Core i7 4th generation processor and 8 GB RAM is required. Processors of lower performance can be used, with reduced real time performance. Storage of streaming data requires that the PC be equipped with a drive capable of streaming storage rates of 300 MB/sec.
  • Page 16 Introduction RSA306B Installation and Safety Instructions...
  • Page 17: Installation

    Initial installation All of the software required to operate the RSA306B from a PC is included on the flash drive that ships with the instrument. The RSA306B can be controlled with Tektronix SignalVu-PC software, or you can control the instrument through the API.Both SignalVu-PC and API control require a USB 3.0 connection for...
  • Page 18 1. After the software has been installed, connect the USB cable included with the analyzer between the analyzer and the host PC. 2. Connect an RF cable between the RSA306B input and the signal source. (See Figure 2.) Figure 2: Instrument connections 3.
  • Page 19 After you have installed the software and connected the system components, the spectrum trace will be active on your PC, confirming system operation. When you are ready to disconnect from the RSA306B, select Disconnect from Instrument to end the current connection.
  • Page 20: Front-Panel Connections

    Installation Front-panel connections The RSA306B signal analyzer has four input connectors on the front panel. Figure 3: RSA306B front panel 1 – Input connector This N-type female connector receives the RF signal input, via cable or antenna. The input signal frequency range is 9 kHz to 6.2 GHz. Keep the protective cover on the connector when not in use.
  • Page 21: Compliance Information

    IEC 61000-4-6 IEC 61000-4-11 EN 61000-3-2. AC power line harmonic emissions EN 61000-3-3. Voltage changes, fluctuations, and flicker European contact. Mfr. Compliance Contact Tektronix, Inc. PO Box 500, MS 19-045 Beaverton, OR 97077 USA www.tek.com RSA306B Installation and Safety Instructions...
  • Page 22 Complies with the EMC provision of the Radiocommunications Act per the following standard, in accordance with ACMA: Declaration of Conformity – EMC CISPR 11. Radiated and Conducted Emissions, Group 1, Class A, in accordance with EN 61326-1. RSA306B Installation and Safety Instructions...
  • Page 23: Safety Compliance

    Pollution Degree 4. Pollution that generates persistent conductivity through conductive dust, rain, or snow. Typical outdoor locations. Pollution degree rating Pollution degree 2 (as defined in IEC 61010-1). Rated for indoor, dry location use only, RSA306B Installation and Safety Instructions...
  • Page 24: Environmental Considerations

    Restriction of hazardous This product is classified as an industrial monitoring and control instrument, and is not required to comply with the substance restrictions of the recast RoHS substances Directive 2011/65/EU until July 22, 2017. RSA306B Installation and Safety Instructions...
