Removal and Installation Procedures

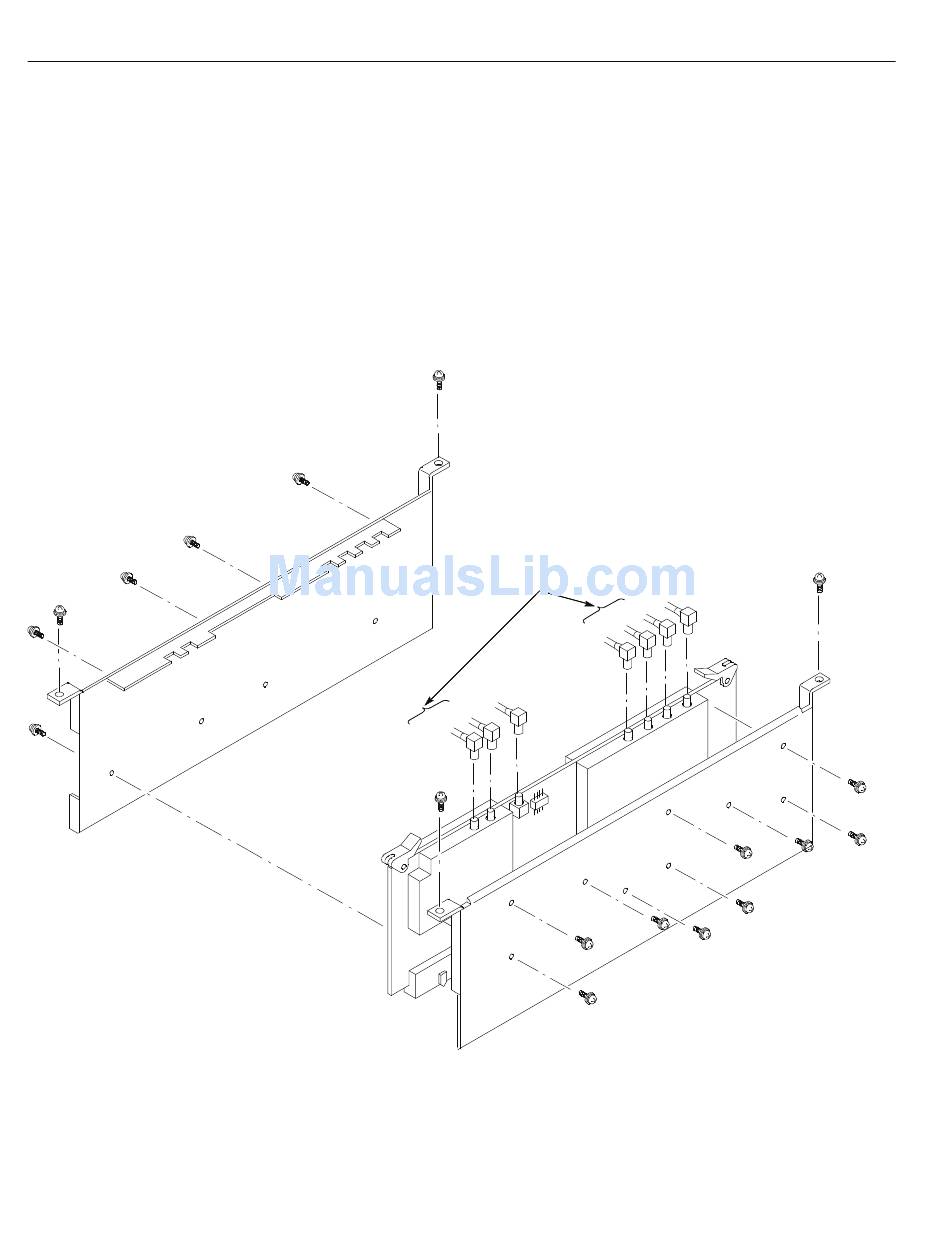

Figure 6- 19: A10 A/D board removal
6- 38
5. Remove the shield brackets:
a. Remove the nine screws securing the front shield bracket to the A10
board. Lift the front shield bracket away.
b. Remove the eight screws securing the back shield bracket to the A10
board. Lift the back shield bracket away.
6. Reinstallation: Reverse steps 4 and 5 to reinstall the A10 board and
interconnect cables.
W44
W45
Option 03 only
W25
W42
W43
W31
W30
RSA3303A & RSA3308A Service Manual
