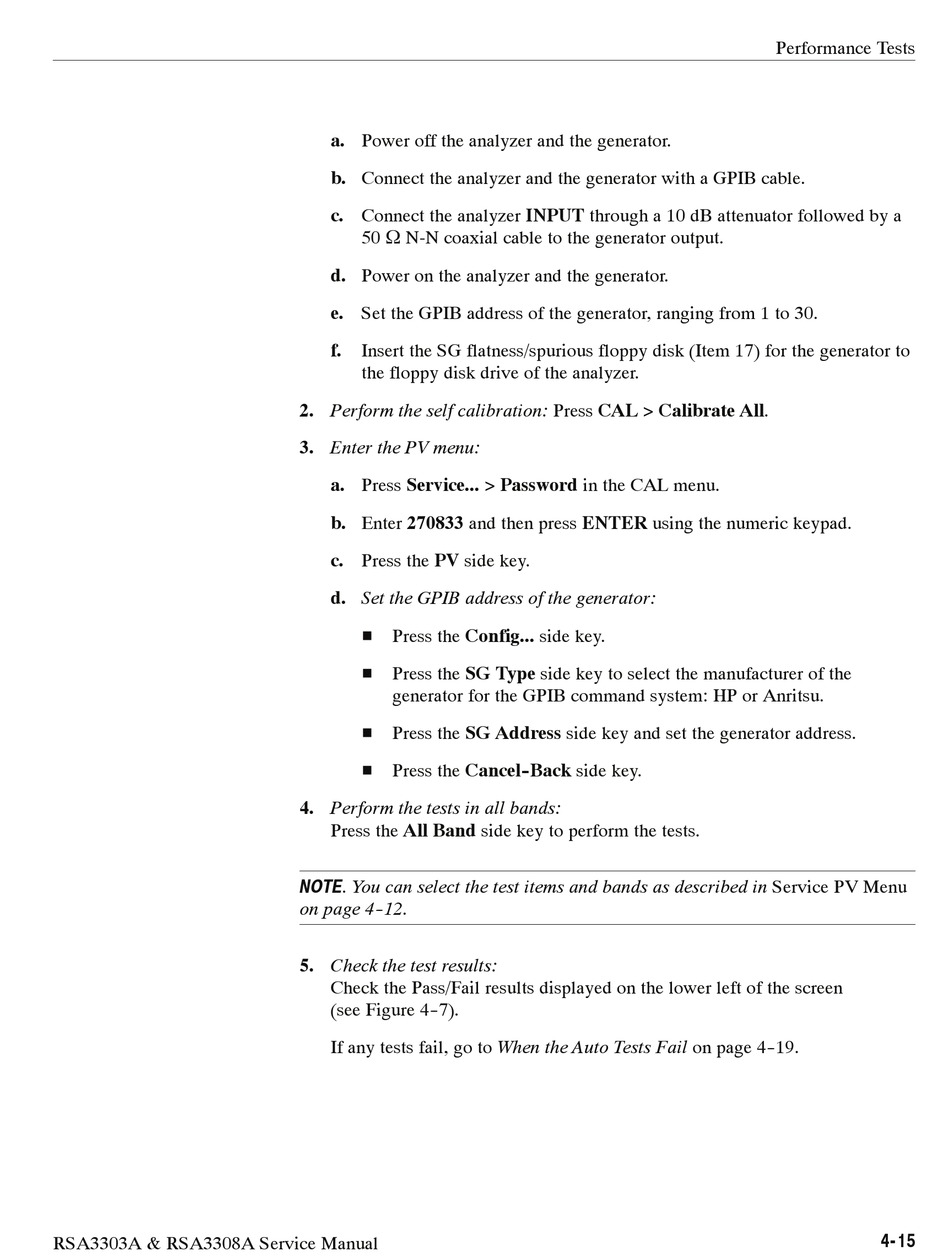

a. Power off the analyzer and the generator.
b. Connect the analyzer and the generator with a GPIB cable.
c. Connect the analyzer INPUT through a 10 dB attenuator followed by a
50 Ω N-N coaxial cable to the generator output.
d. Power on the analyzer and the generator.
e. Set the GPIB address of the generator, ranging from 1 to 30.
f.
Insert the SG flatness/spurious floppy disk (Item 17) for the generator to
the floppy disk drive of the analyzer.
2. Perform the self calibration: Press CAL > Calibrate All.
3. Enter the PV menu:
a. Press Service... > Password in the CAL menu.
b. Enter 270833 and then press ENTER using the numeric keypad.
c. Press the PV side key.
d. Set the GPIB address of the generator:
H Press the Config... side key.
H Press the SG Type side key to select the manufacturer of the
generator for the GPIB command system: HP or Anritsu.
H Press the SG Address side key and set the generator address.
H Press the Cancel- -Back side key.
4. Perform the tests in all bands:
Press the All Band side key to perform the tests.
NOTE. You can select the test items and bands as described in Service PV Menu
on page 4- -12.
5. Check the test results:
Check the Pass/Fail results displayed on the lower left of the screen
(see Figure 4- -7).
If any tests fail, go to When the Auto Tests Fail on page 4- -19.
