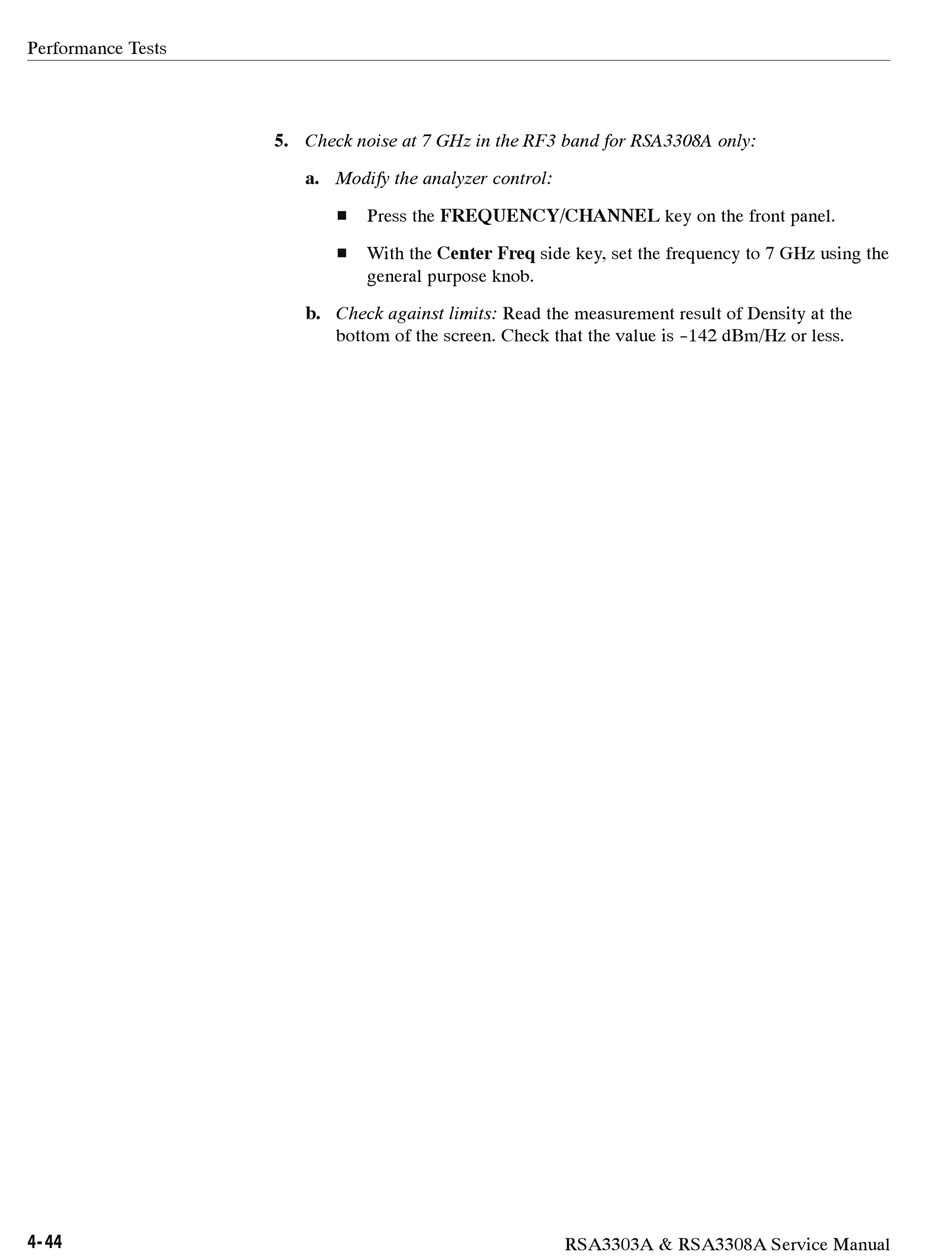

Performance Tests
4- 44
5. Check noise at 7 GHz in the RF3 band for RSA3308A only:
a. Modify the analyzer control:
H Press the FREQUENCY/CHANNEL key on the front panel.
H With the Center Freq side key, set the frequency to 7 GHz using the
general purpose knob.
b. Check against limits: Read the measurement result of Density at the
bottom of the screen. Check that the value is - -142 dBm/Hz or less.
RSA3303A & RSA3308A Service Manual
