Removal and Installation Procedures
A61
Power switch
board

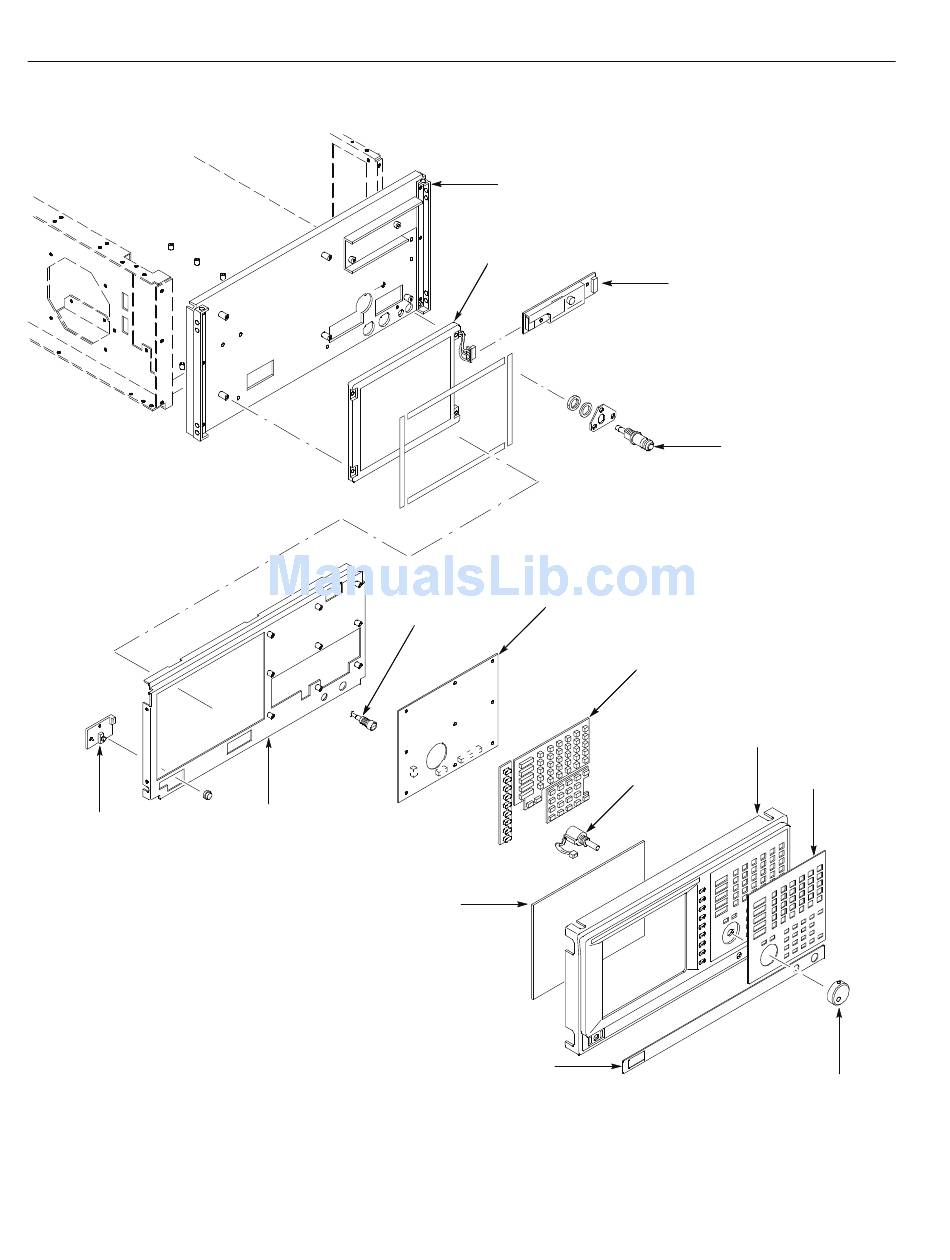

Figure 6- 10: Front panel modules
6- 20
Preamp power
connector
Front bracket
LCD filter
Front sub-panel
LCD
A60 Front key board
Front panel keys
Rotary encoder
Low front panel
RSA3303A & RSA3308A Service Manual
Inverter
RF input connector
Front bezel
Front panel
General purpose
knob
